Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 4km | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | about 15 working days | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 22000KM per month |
| Place of Origin: | China | Brand Name: | JQ/customized |
|---|---|---|---|
| Certification: | ISO9001 CE ROHS FCC | Model Number: | ADSS-12/24/48/96F |
|
Detail Information |
|||
| Cettification: | ISO9001 CE ROHS FCC | Application: | Long Distance Communication |
|---|---|---|---|
| Fiber Counts: | 2-144F | Temperature: | -40℃ To +70℃ |
| Outer Jacket: | PE//HDPE/LSZH/AT | Fiber Type: | G652D/G655/G657 |
| Span: | 80/100/200/300/500/1000M | Fiber Per Tube: | 4/6/12f |
| OEM: | Acceptable | Strength Number: | FRP,and Kevlar Aramid Yarn |
| Structure: | Multi Core, Stranded Loose Tube | ||
| High Light: | G652 ADSS Fiber Optic Cable,Singlemode ADSS Fiber Optic Cable |
||
Product Description

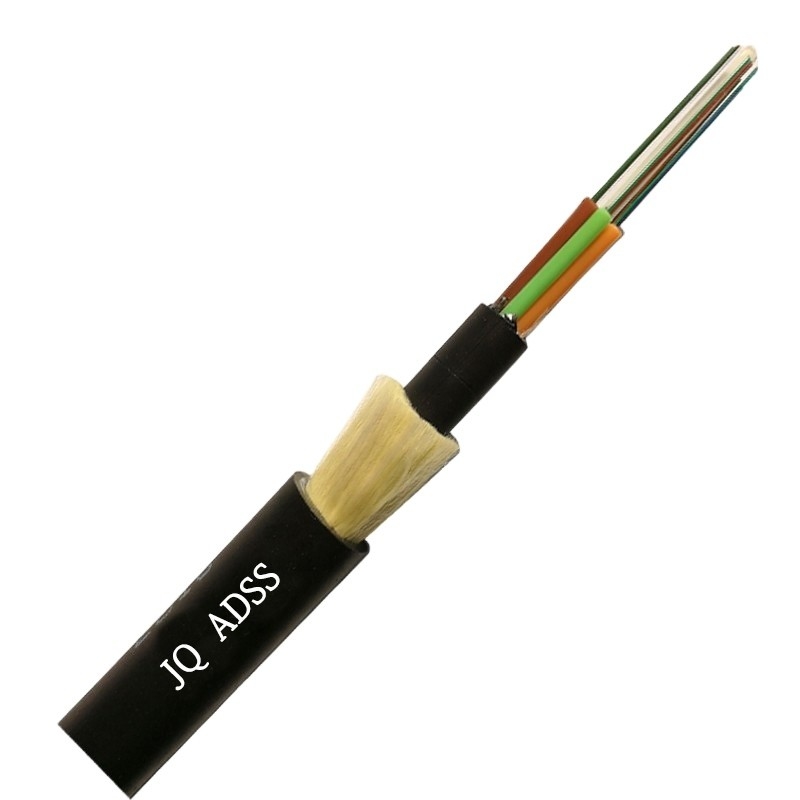

overhead outdoor 12/24 hilos singlemode G652 ADSS Fiber Optic Cable with kevlar
ADSS destricption
ADSS cable is self-supporting overhead laying, should have a high tensile strength, to ensure that the normal operation can bear the impact of the external environment.
The main bearing component of ADSS cable is aramidon yarn, according to the structure can be divided into center tube type and lamination type two,
the lamination type structure is divided into single sheath and double sheath structure, power communication cable ADSS all-medium self-supporting cable.
Features

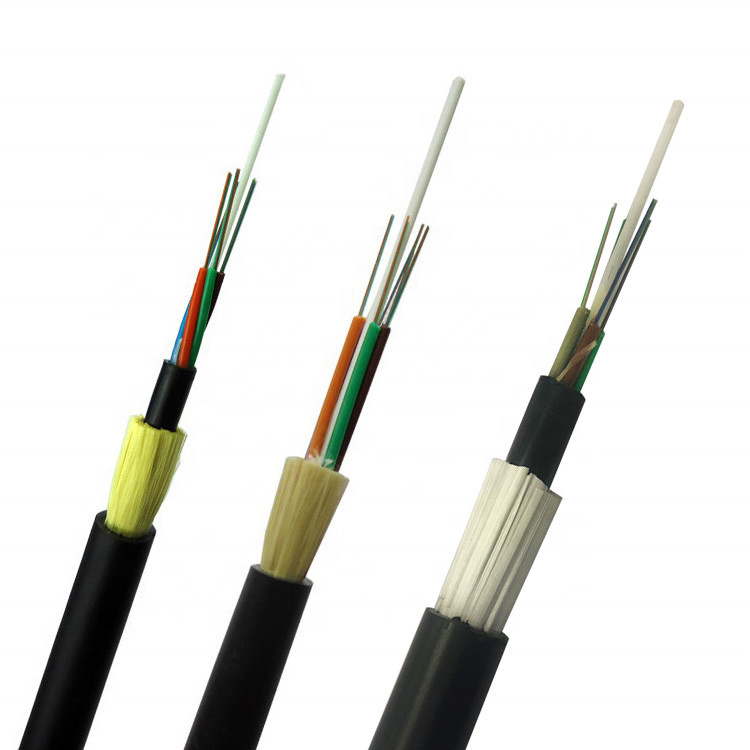

Details picture shows
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 82 | 90 |
| 6 | 1+6 | 6 | 1.9±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 82 | 90 |
| 8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 82 | 90 |
| 12 | 1+6 | 6 | 1.9±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 82 | 90 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 85 | 94 |
| 48 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.7 | 10.0±0.2 | 88 | 96 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.7 | 10.5±0.2 | 98 | 106 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.0/3.4 | 1.7 | 12.0±0.2 | 123 | 134 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.0/7.2 | 1.7 | 15.2±0.2 | 175 | 185 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.7 | 12.0±0.1 | 125 | 135 |
| 6 | 1+6 | 6 | 1.9±0.1 | 2.0/2.0 | 1.7 | 12.0±0.1 | 125 | 135 |
| 8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.7 | 12.0±0.1 | 125 | 135 |
| 12 | 1+6 | 6 | 1.9±0.1 | 2.0/2.0 | 1.7 | 12.0±0.1 | 125 | 135 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.7 | 12.0±0.1 | 128 | 138 |
| 48 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.7 | 12.5±0.1 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.7 | 13.2±0.1 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.0/3.4 | 1.7 | 14.5±0.1 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.0/7.2 | 1.7 | 16.5±0.1 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |
Application: Self-supporting overhead
Packing:
FAQ
1. Q:Are you a factory or trade company?
A:We are a factory
2. Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 10km.
3. Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4. Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5. Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6. Can you supply customized products and logo?
A:Yes. We supply OEM service.
7. What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
