Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Minimum Order Quantity : | 10km | Price : | base on requriment |
|---|---|---|---|
| Packaging Details : | Wooden drum or Iron drum | Delivery Time : | 15days |
| Payment Terms : | T/T, Western Union,Alipay, MoneyGram, L/C | Supply Ability : | 22500KM per month |
| Place of Origin: | Guangzhou China | Brand Name: | HAISO/Jiqian |
|---|---|---|---|
| Certification: | ISO9001 CE ROHS Rohs | Model Number: | ADSS-4C/6C/24C/48C/96C |
|
Detail Information |
|||
| Application: | Outdoor Aerial/FTTH | Fiber Counts: | 2-288 Cores |
|---|---|---|---|
| Span: | 50m 80m /150m/200 M /300m /500m | Fiber Per Tube: | 4/6/8/12F/12 |
| Strength Number: | FRP, Kevlar Aramid Yarn | Structure: | Stranded Loose Tube |
| Jacket Color: | Black Or Customized | Operating Temperature: | -40℃ To +75℃ |
| Fiber Type: | G652D, OS1,OM1, G655, OM4, OM5 | Packing: | 2-4km/wooden Drum, Carton Box, 2KM/Drum, Wooden Drum |
| High Light: | 96 Core Single Mode Fiber Cable,ADSS Single Mode Fiber Cable |
||
Product Description
factory Price Outdoor ADSS Loose tube FRP 12 24 48 72 96 144 Core single mode fiber cable
ADSS destricption
All-dieletric self-supporting optical cable (ADSS ) is a kind of non-metallic optical cable which is composed of all medium materials, contains the necessary
support system itself, and can be directly hung on the power tower. It is mainly used for the communication route of overhead high-voltage transmission system,
and can also be used for the communication line of lightning-prone area, large span and other overhead laying environment.Self-supporting refers to the cable
self-strengthening members can withstand the weight and external load.
Characteristics
· Can be installed without shutting off the power
· Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
· Light weight and small diameter reducing the load caused by ice and wind and the load on towers
and backprops
· Large span lengths and the largest span is over 1000m
· Good performance of tensile strength and temperature
· The design life span is 30 years
·Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV,
PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding
process can satisfy the demand on various spans.
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7 | 9.8 | 82 | 90 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7 | 9.8 | 82 | 90 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7 | 9.8 | 82 | 90 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7 | 9.8 | 82 | 90 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7 | 9.8 | 86 | 95 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7 | 10.2 | 89 | 98 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7 | 10.6 | 98 | 108 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7 | 12.0 | 122 | 135 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |
Details picture shows

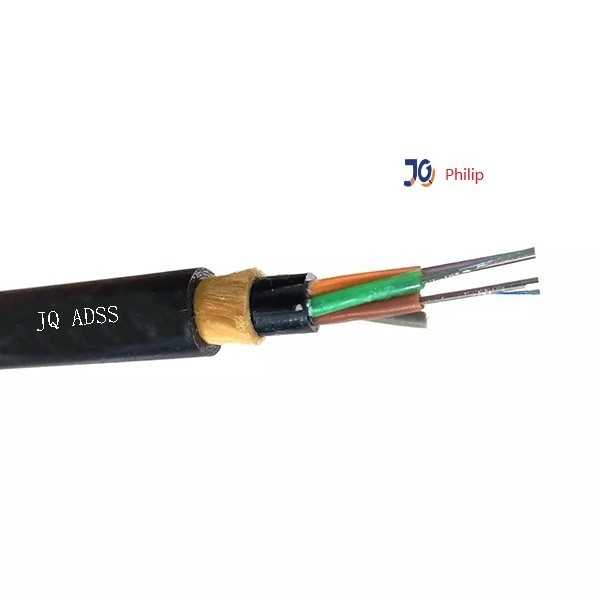

single jacket ADSS fiber cable

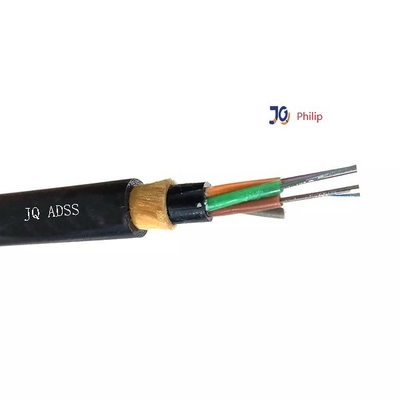

double jacket ADSS fiber optic cable

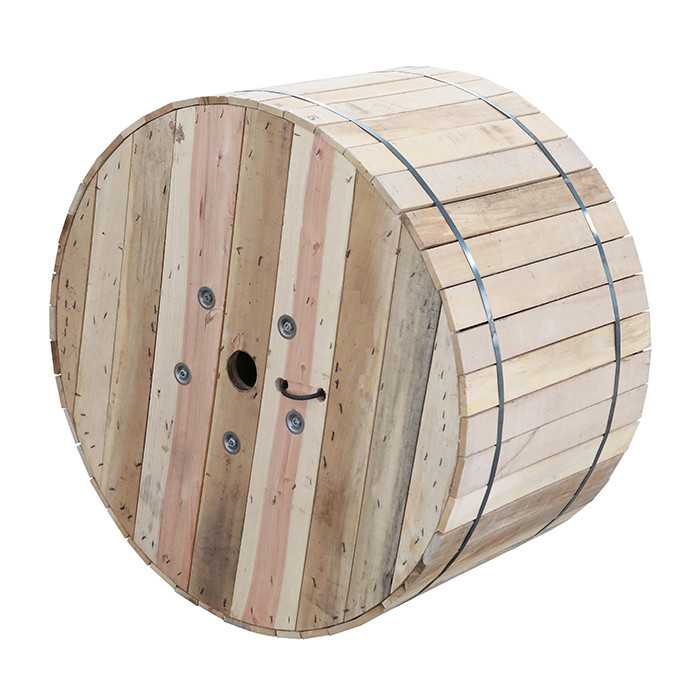

Packing:
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord.
Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
