Mini ADSS 6 Core 12 Core Aerial Fiber Optic Cable ASU G652D
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 8km | Packaging Details : | Wooden drum or Iron drum |
|---|---|---|---|
| Delivery Time : | about 12 days | Payment Terms : | T/T, Western Union,Alipay, MoneyGram, L/C |
| Supply Ability : | 800KM per day |
| Place of Origin: | Guangdong China | Brand Name: | JQ or Customized |
|---|---|---|---|
| Certification: | ISO9001 CE ROHS Rohs FCC | Model Number: | ADSS-24/48/72/96 hilos |
|
Detail Information |
|||
| Application: | Outdoor Aerial, FTTH FTTB FTTX Network | Fiber Counts: | 4-288 Cores |
|---|---|---|---|
| Span: | 50m /100m /200 M /300m /400m Or Customized | Fiber Per Tube: | 4/6/8/12/F |
| OEM: | Acceptable | Strength Number: | FRP, Kevlar Aramid Yarn |
| Structure: | Stranded Loose Tube | Jacket Color: | Black Or Customized |
| Operating Temperature: | -40℃ To +80℃ | Fiber Type: | G652D, OM1, G657, OM4, OM5 |
| Jacket Material: | PE, MDPE, LSZH | ||
| High Light: | G652D Fiber Optic Cable,ADSS 12 Core Fiber Optic Cable |
||
Product Description
12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
What is ADSS Cable?
The use of ADSS fiber optic cable has lots of advantages. The cables’ overall weight and diameter are small, which is good news for towers and poles. Moisture and chemical attack are protected by the rugged construction. It’s a versatile application that can be used for most outdoor overhead deployments. The overall transmission range is also sufficient. Once ADSS cable installation is done, it will have a maximum service life of up to thirty years.
·Application
1. Electricity companies, telecommunications companies, railways and private network groups for telecommunications
2. Designed for installation on distribution and transmission lines
3. Can be installed close to conductors
4. Ideal for underbuilt applications that require minimal downtime
5. For telecommunications networks that place a premium on quick, low-cost setup
6. For FTTX applications such as FTTH (Fiber to the Home)
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 6 | 1+5 | 6 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 8 | 1+5 | 4 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 12 | 1+5 | 6 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 85 | 95 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 88 | 98 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 98 | 108 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 122 | 135 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |
Details picture shows

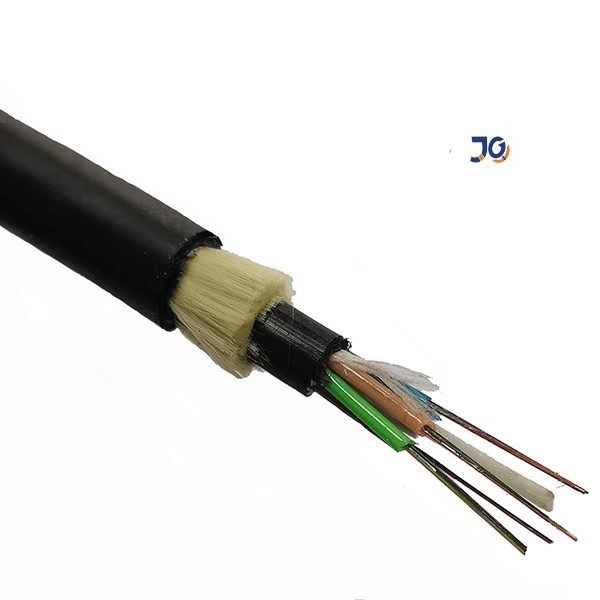

single jacket ADSS fiber cable

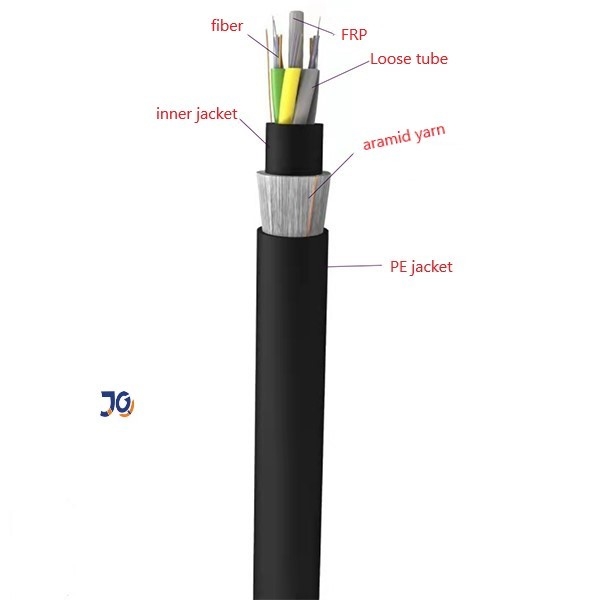

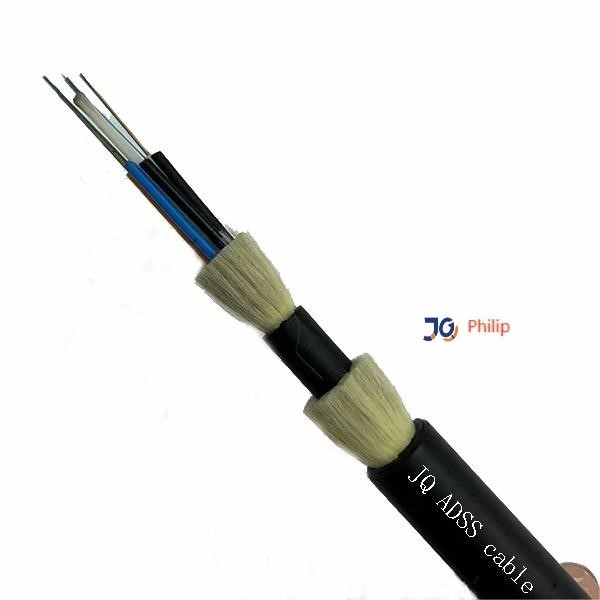

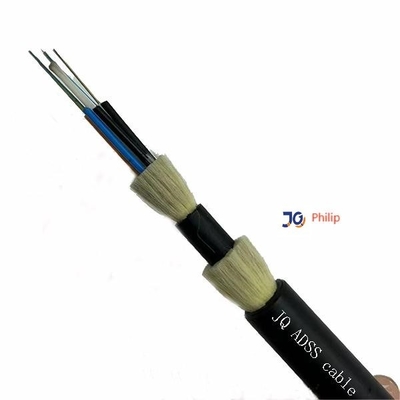

double jacket ADSS fiber optic cable
Packing:
FAQ
1. Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2. About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
