Steel Wire Singlemode 24/48/96c GYTS/GYTA Aerial Fiber Optic Cable

Minimum Order Quantity : 6km Packaging Details : wooden drum
Delivery Time : 12 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 900KM Per day
Place of Origin: Guangzhou,China Brand Name: JQ/Customized
Certification: ISO9001, FCC, ROHS/CE Model Number: GYTS/GYTA-12/24/48/96C

Detail Information

Fiber Brand: YOFC/Fiberhome/ Corning Color: Black/Customized
Jacket Metarial: PE,HDPE/LSZH Strength Member: Steel Wire
Fiber Count: 2-288 Cores Installation: Aerial & Duct
Service: OEM Armored: Steel Tape
Product Name: Outdoor Optic Fiber Cable Application: Telecom/network, Telecommunication
High Light:

Steel Wire Aerial Fiber Optic Cable

,

Singlemode Aerial Fiber Optic Cable

Product Description

Steel wire singlemode 24/48/96c GYTS/GYTA aerial Fiber Optic Cable

Product Description

Description of a standard GYTS fiber optic cable

PBT loose tube of 2-12 fiber, Tube thickness: 0.3±0.05mm, Diameter: 2.1±0.1um, Fiber (Fiber characteristic), Cladding diameter: 125.0±0, Fiber characteristics: Diameter: 242±7 um, UV color fiber: Standard chromatogram. Central Strength member: steel wire with Diameter: 1.6mm. It has a Filling Compound; Longitudinal corrugated steel tape laminated with polyethylene on both sides. Consequently, it has a Corrugated steel Thickness: 0.4 ±0.015, Steel thickness: 0.15±0.015, Black MDPE out jacket, Jacket thickness: 1.8 ±0.20mm and Diameter: Cable Diameter: 10.5±0.20mm.





 Features



• Steel wire strength.filler protect tube fiber.steel tape armord.

• Good ultra violet radiation resistant property.

• Good moisture-resistance.



 Applications:



• Adopted to Outdoor distribution.

• Suitable for aerial .pipeline laying method.

• Long distance and local area network communication.




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Count
Diameter
(MI)
Weight
(KG/KMI)
Min.Bend Radius Mlin.Tension
(N)
Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 9.2 95

10
Times
of
Diameter

















20
Times
of
Diameter

















1500 600 1000 300
32-36 9.5 100 1500 600 1000 300
38-60 10.0 115 1500 600 1000 300
62-72 10.5 125 1500 600 1000 300
74-96 12.9 175 1500 600 1000 300
98-120 14.4 210 1500 600 1000 300
122-144 15.8 245 1500 600 1000 300
146-216 16.3 260 1500 600 1000 300
218-240 19.5 345 1500 600 1000 300
242-288 21.7 415 1500 600 1000 300

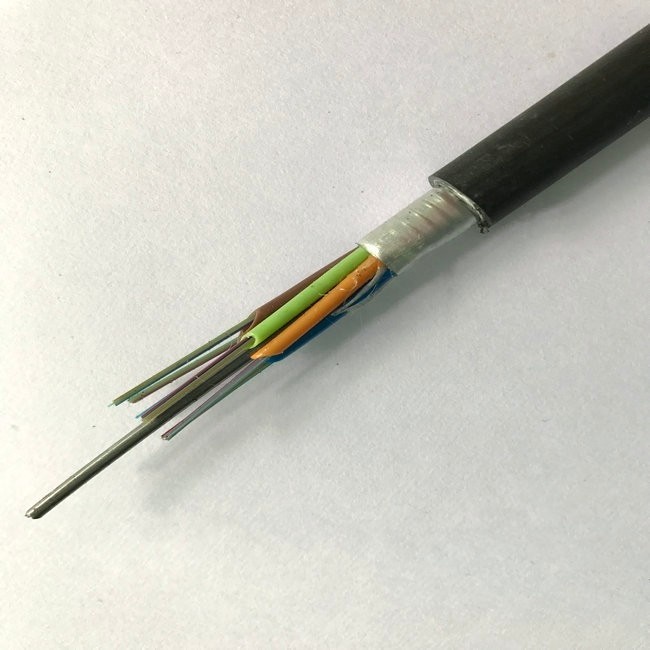

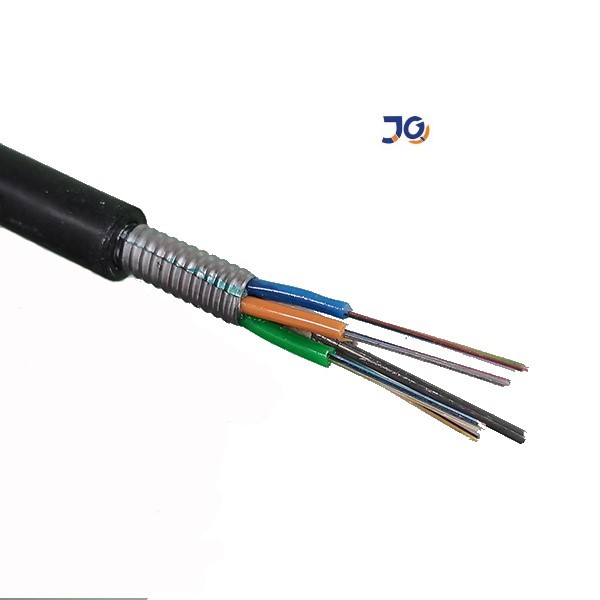

Detail product pictures

Steel Wire Singlemode 24/48/96c GYTS/GYTA Aerial Fiber Optic Cable 0











FAQ



1.  Are you factory direct?

as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.



2.  What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord



3.  Product quality guarantee period?

20 years Guarantee for fiber optic cable



4.  Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
