Product Description

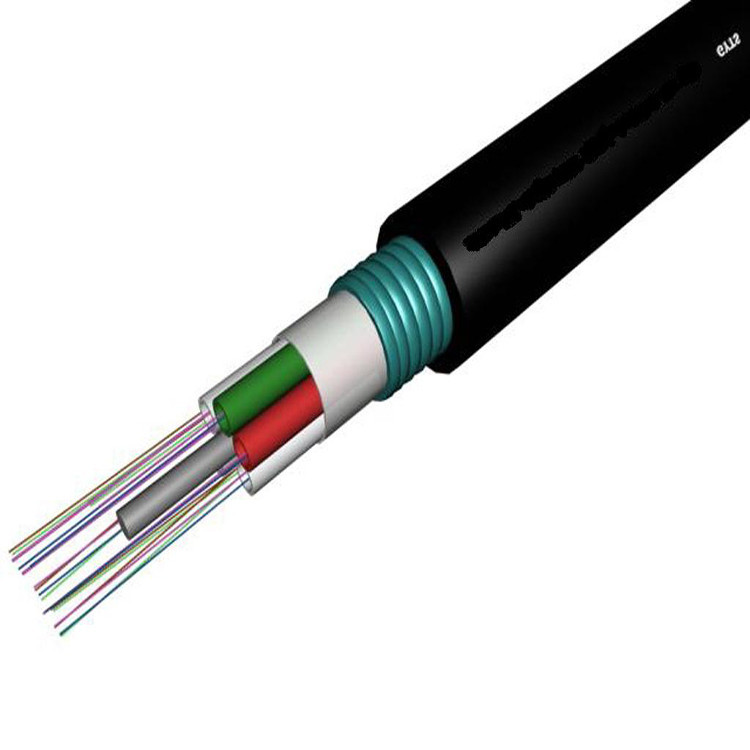

Fibre Optic Stranded Loose Tube Fiber Optical Cable GYTS For Outdoor/duct
Product Description

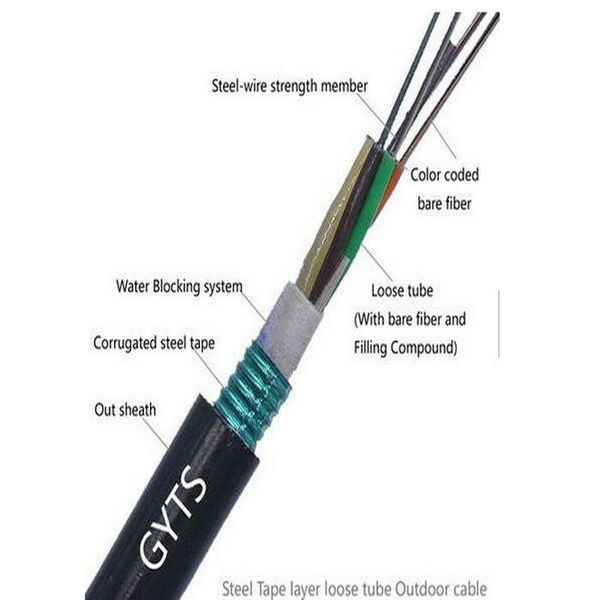

Description of a standard GYTS fiber optic cable
PBT loose tube of 2-12 fiber, Tube thickness: 0.3±0.05mm, Diameter: 2.1±0.1um, Fiber (Fiber characteristic), Cladding diameter: 125.0±0, Fiber characteristics: Diameter: 242±7 um, UV color fiber: Standard chromatogram. Central Strength member: steel wire with Diameter: 1.6mm. It has a Filling Compound; Longitudinal corrugated steel tape laminated with polyethylene on both sides. Consequently, it has a Corrugated steel Thickness: 0.4 ±0.015, Steel thickness: 0.15±0.015, Black MDPE out jacket, Jacket thickness: 1.8 ±0.20mm and Diameter: Cable Diameter: 10.5±0.20mm.
Features
1-Up to 144 fiber cores.
2-The loose tube stranding technology make the fibers have good secondary excess length and allow
3-The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
4-Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
5-Metal strength member provides excellent strain performance.
6-Low dispersion and attenuation
7-Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
8-The armoring of corrugated steel tape make cable have nice properties of moisture resistance and crush resistance
9-With small cable diameter, light cable weight, easily to lay
10-The jacket also can be made of HFFR, which cable model is GYTZS
11-Operating Temperature : -40 ~ +70 C
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
Fiber
Count |
Diameter
(MI) |
Weight
(KG/KMI) |
Min.Bend Radius |
Mlin.Tension
(N) |
Crush
(N/100MMl) |
| Static |
Dynamic |
Long Term |
Short Term |
Long Term |
Short Term |
| 2-30 |
9.2 |
95 |
10
Times
of
Diameter
|
20
Times
of
Diameter
|
1500 |
600 |
1000 |
300 |
| 32-36 |
9.5 |
100 |
1500 |
600 |
1000 |
300 |
| 38-60 |
10.0 |
115 |
1500 |
600 |
1000 |
300 |
| 62-72 |
10.5 |
125 |
1500 |
600 |
1000 |
300 |
| 74-96 |
12.9 |
175 |
1500 |
600 |
1000 |
300 |
| 98-120 |
14.4 |
210 |
1500 |
600 |
1000 |
300 |
| 122-144 |
15.8 |
245 |
1500 |
600 |
1000 |
300 |
| 146-216 |
16.3 |
260 |
1500 |
600 |
1000 |
300 |
| 218-240 |
19.5 |
345 |
1500 |
600 |
1000 |
300 |
| 242-288 |
21.7 |
415 |
1500 |
600 |
1000 |
300 |

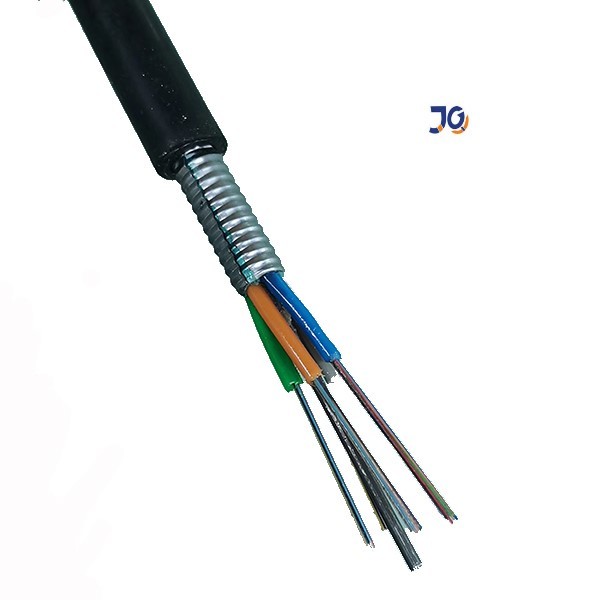

Detail product pictures
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
