GYTY53 GYFTY53 48 96 Direct Buried Single Armor Double Jacket Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 2km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 10 working days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30000KM Per month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/Customized |
|---|---|---|---|
| Model Number: | GYTS/GYTA-12/24/48/96/144/288c |
|
Detail Information |
|||
| Certification: | ISO9001, ROHS, CE, CE And ROHS, ISO9001/CE/ROHS | Fiber Brand: | YOFC/FiberHome/ Corning |
|---|---|---|---|
| Color: | Black/red Or Customized | Jacket Metarial: | PE,HDPE/LSZH |
| Strength Member: | Steel Wire | Fiber Count: | 4-288 Cores |
| Installation: | Overhead & Duct& Pipe | OEM: | Acceptable |
| Armored: | Steel Tape | Product Name: | GYTS/GYTA |
| Application: | Telecom/network, Telecommunication | Package: | 2km/3km/5km Per Roll |
| High Light: | 12 Core Aerial Optical Fiber Cable,GYTA Optical Fiber Cable |
||
Product Description
Product Description

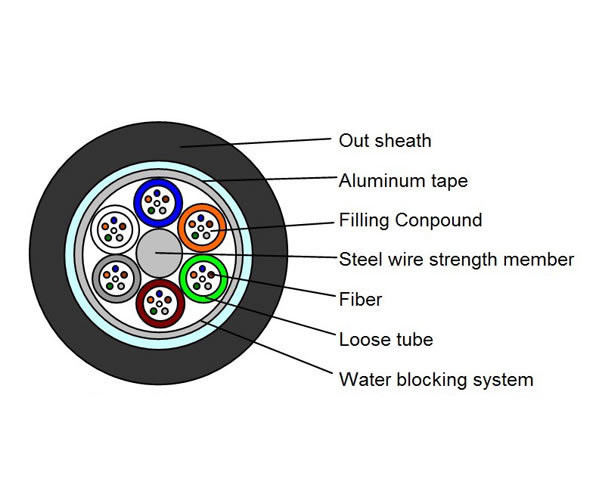

The mental strength member is made up of stranded steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
What is Differences between GYTS optical cable and GYTA optical cable?
GYTS cable is universal optical cable; it can be used in aerial, duct and direct-buried while GYTA can be used in aerial cable and duct cable not in direct-buried cable.The S in GYTS refers to steel strip which can sustain large pulling force, the A in GYTA refers to Aluminum strip which has better anti-rust and moisture resistance than steel strip, therefore, GYTA cable has longer service life when used in duct transmission. Choose GYTS cable when tensile strength is needed.
Applications:
Long distance and local area network(LAN) communication.
Aerial & conduit/duct application.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.2 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||

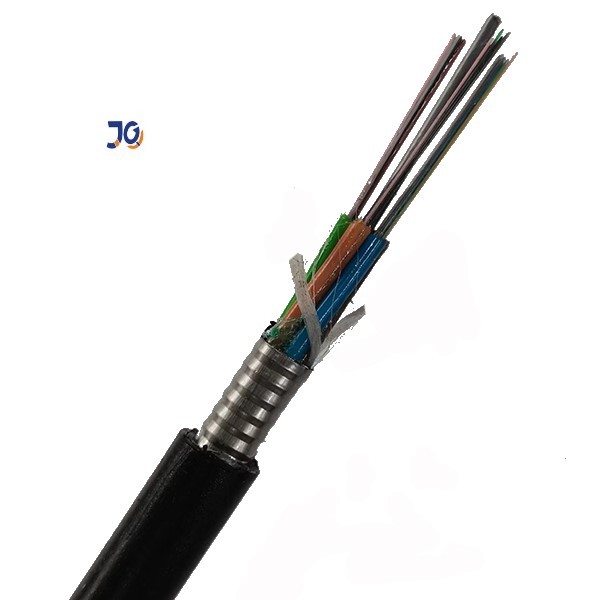

Detail product pictures

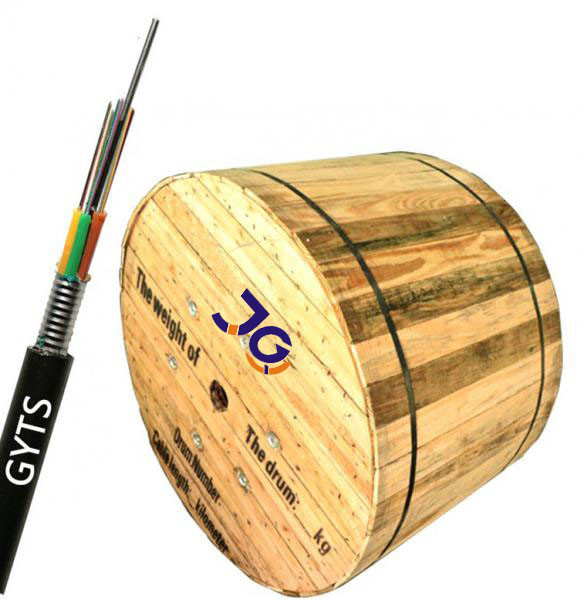

GYTS
GYTA
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
