GYTY53 GYFTY53 48 96 Direct Buried Single Armor Double Jacket Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 3km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 10 working days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30000KM Per month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/Customized |
|---|---|---|---|
| Model Number: | GYTS/GYTA-12/24/48/96/144/288c |
|
Detail Information |
|||
| Certification: | ROHS, CE, ISO9001/CE/ROHS | Fiber Brand: | YOFC/FiberHome/ Corning |
|---|---|---|---|
| Color: | Black/red Or Customized | Jacket Metarial: | PE,HDPE/LSZH |
| Strength Member: | Steel Wire | Installation: | Overhead & Duct& Pipe |
| Service: | OEM | Armored: | Steel Tape |
| Product Name: | GYTS/GYTA | Application: | Telecom/network, Telecommunication |
| Package: | 2km/3km/5km Per Roll | ||
| High Light: | Multi Tube Fibre Optical Cable,Stranded Loose Fibre Optical Cable |
||
Product Description
Product Description
GYTS outdoor fiber optic cable is used for duct and aerial applications. We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable, fiber strand from 2 cores to 144 cores. A related GYTA type cable is available. GYTS fiber optic cable featuer the good mechanical and temperature performance. Its tube filling compound to ensure a critical fiber protection. PE sheath protects cable from ultraviolet radiation.
What is Differences between GYTS optical cable and GYTA optical cable?
GYTS cable is universal optical cable; it can be used in aerial, duct and direct-buried while GYTA can be used in aerial cable and duct cable not in direct-buried cable.The S in GYTS refers to steel strip which can sustain large pulling force, the A in GYTA refers to Aluminum strip which has better anti-rust and moisture resistance than steel strip, therefore, GYTA cable has longer service life when used in duct transmission. Choose GYTS cable when tensile strength is needed.
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.2 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||
Detail product pictures

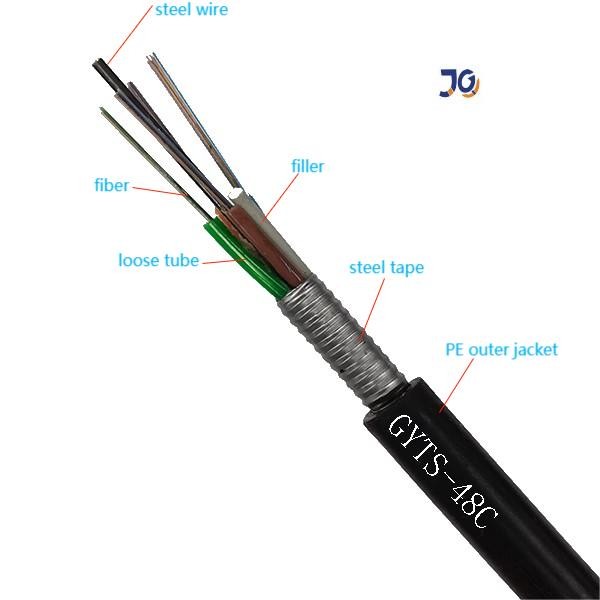

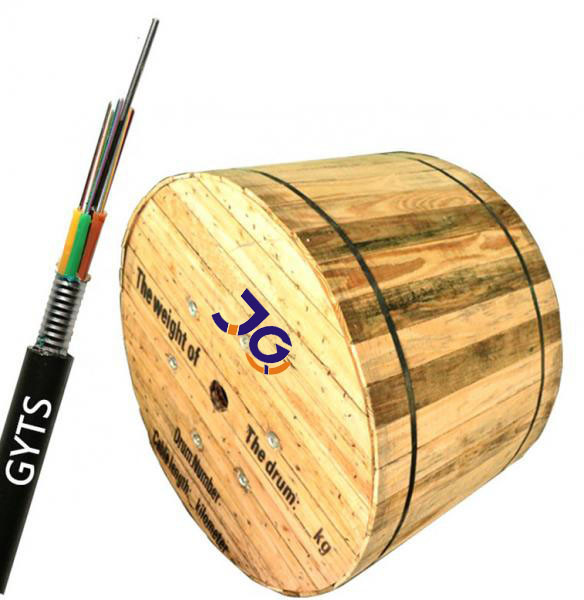

GYTS

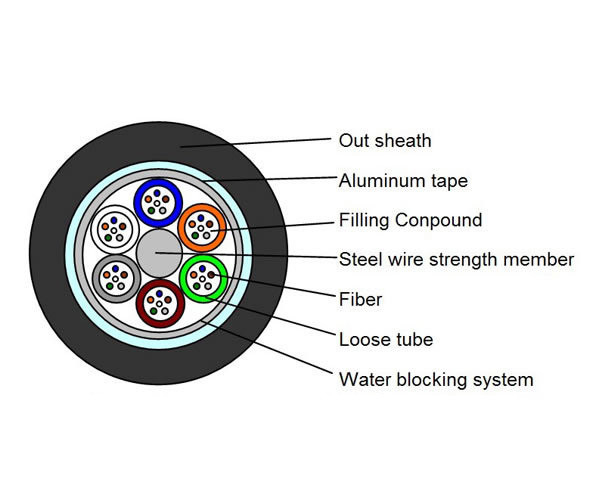

GYTA
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
