All Dielectric Non Metal GYFTY 12 Core SM G.652D Duct Fiber Optic Cable

Minimum Order Quantity : 5 km Packaging Details : wooden drum
Delivery Time : 5 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 200KM Per day
Place of Origin: China Brand Name: JQ/OEM
Certification: ISO9001, FCC, ROHS/CCC Model Number: GYFTY-12F

Detail Information

Fiber Brand: YOFC/Fiberhome/ Corning Color: Black Or Customized
Jacket Metarial: PE,MDPE/LSZH/AT Strength Member: FRP
Fiber Count: 4-144 Cores Installation: Aerial & Duct
Sample: Acceptable Product Name: GYFTY Outdoor Fiber Cable
Application: Network/long Distance Communication
High Light:

Duct Fiber Optic Cable

,

All Dielectric Fiber Optic Cable

Product Description

All Dielectric Non-metal GYFTY 12 core SM G.652D Duct Fiber Optic Cable



Product Description





GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct use. We supply both single mode GYFTY cable and multimode GYFTY cables.



Features


– Light weight, small diameter, easy to lay.
– Excellent mechanical and temperature performance.
– Low dispersion and attenuation.
– Special filling get filled loose tubes provide perfect optical fiber protection.
– Non-metal central strength has a excellent anti-electromagnetic ability.
– Water blocking system provide reliable performance of moisture-proof and water block.
– The fiber reinforced plastic and loose tube filling compound can ensure the cable watertight.



Applications:



1.  Outdoor aerial and duct application;
2·  Long haul communication system;
3·  Subscriber and local area network;

4·  Voice,data,video and image system.




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Count
Diameter
(MI)
Weight
(KG/KMI)
Min.Bend Radius Mlin.Tension
(N)
Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 8.8 88

10
Times
Diameter

















20
Times
Diameter

















1500 800 1000 500
32-36 9.0 95 1500 800 1000 500
38-60 9.2 98 1500 800 1000 500
62-72 9.5 105 1500 800 1000 500
74-96 10.5 118 1500 1000 1000 500
98-120 11.8 145 2000 1500 1000 500
122-144 14.2 165 2000 1500 1000 500
146-216 16.3 225 2000 1500 1000 500
218-240 18.5 305 2000 1500 1000 500
242-288 22.7 395 2500 2000 1000 500



Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788





Detail product pictures

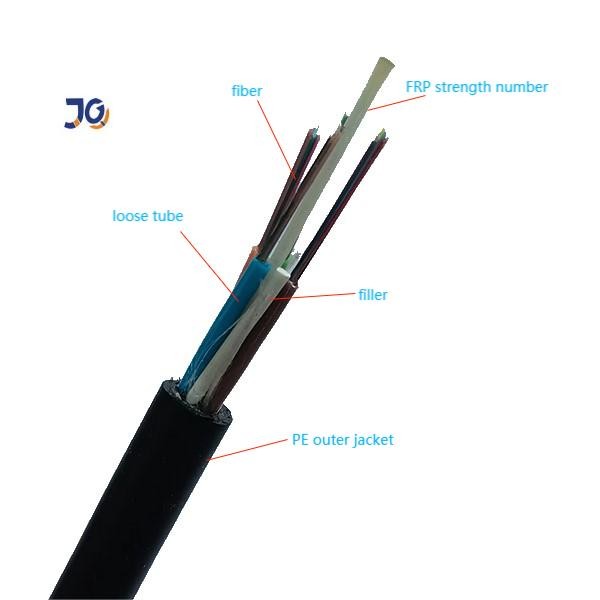

All Dielectric Non Metal GYFTY 12 Core SM G.652D Duct Fiber Optic Cable 0

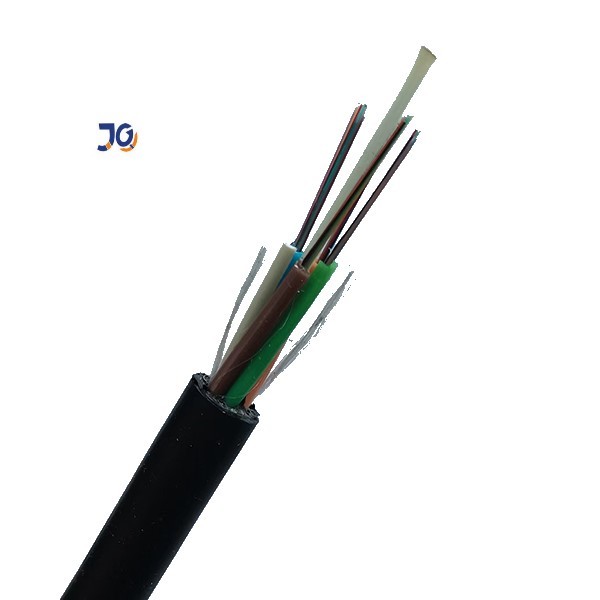

All Dielectric Non Metal GYFTY 12 Core SM G.652D Duct Fiber Optic Cable 1

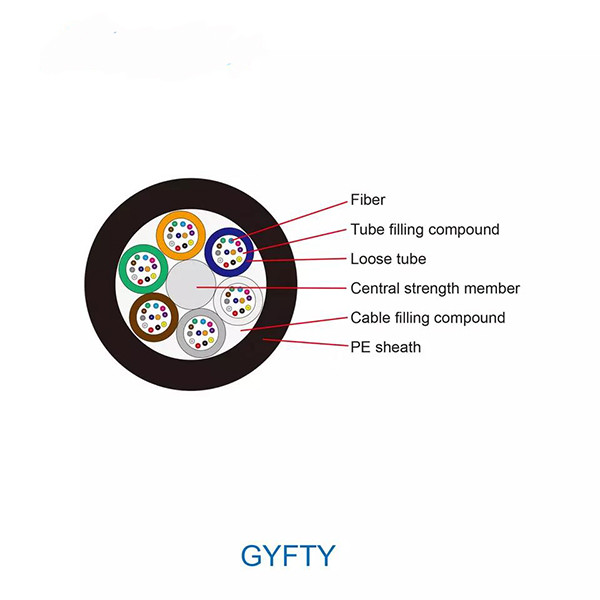

                                   Picture shows about the GYFTY-48 C











FAQ



Q1:  How the warranty for products ?

A: 10 years,and maintance for whole life



Q2:  Can we make OEM for products?

A: Yes, we can print your logo or label on the products or on the box.



Q3:  Can you provide free samples ?

A: Some of low value samples can be free for you, but you need pay for the shipping cost.



Q4:  How can you guarentee the quality ?

A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
