GYFTY Outdoor Aerial Optical Fiber Cable Single Mode G652D 48 Core Fiber Optic Cable

Minimum Order Quantity : 45km Packaging Details : wooden drum
Delivery Time : 7 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 300KM Per day
Place of Origin: China Brand Name: JQ/ Customized
Certification: ISO9001, FCC, ROHS/CCC Model Number: GYFTY-48F

Detail Information

Fiber Brand: YOFC/Fiberhome/ Corning Color: Black Or Orange
Jacket Metarial: PE,HDPE/LSZH/AT Strength Member: FRP(with PE If Needed)
Fiber Count: 4-144cores Installation: Aerial & Duct
Drum Length: 3KM Or Customized Product Name: GYFTY Outdoor Fiber Cable
Application: Network/long Distance Communication
High Light:

Outdoor Aerial Optical Fiber Cable

,

G652D Aerial Optical Fiber Cable

,

144 Cores Aerial Optical Fiber Cable

Product Description

GYFTY Outdoor Aerial Optical Fiber Cable Single Mode G652D 48 Core Fiber Optic Cable



Product Description

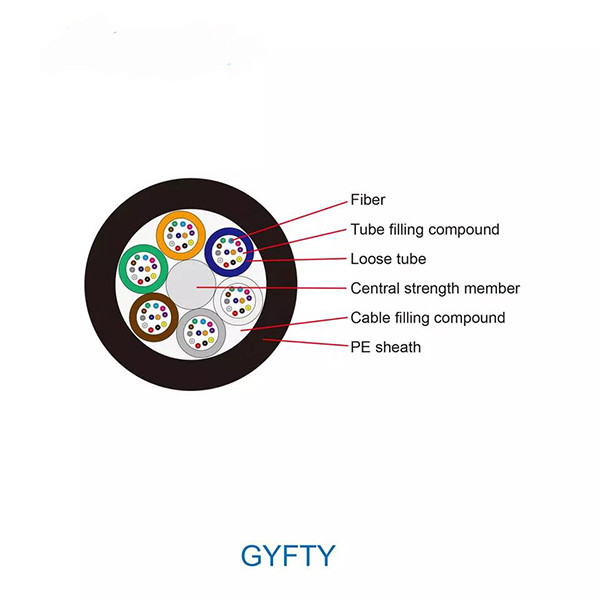

The structure of GYFTY optical cable is to put 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.The center of the cable core is a glass fiber reinforced plastic (FRP), and the loose tube (and filler rope) is twisted around the center strength core to form a compact and round cable core, and the gap in the cable core is filled with water blocking filler. And a layer of polyethylene outer sheath extrud on the outside of the cable core to



Features


– Light weight, small diameter, easy to lay.
– Excellent mechanical and temperature performance.
– Low dispersion and attenuation.
– Special filling get filled loose tubes provide perfect optical fiber protection.
– Non-metal central strength has a excellent anti-electromagnetic ability.
– Water blocking system provide reliable performance of moisture-proof and water block.
– The fiber reinforced plastic and loose tube filling compound can ensure the cable watertight.



Fiber Type





OS2 9/125 G652D /OM1 62.5/125μm Multimode – OM2 50/125μm Multimode – 10G OM3 50/125μm Multimode – 10G OM4 50/125μm Multimode (Other Fiber available Too)




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Count
Diameter
(MI)
Weight
(KG/KMI)
Min.Bend Radius Mlin.Tension
(N)
Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 8.8 88

10
Times
Diameter

















20
Times
Diameter

















1500 800 1000 500
32-36 9.0 95 1500 800 1000 500
38-60 9.2 98 1500 800 1000 500
62-72 9.5 105 1500 800 1000 500
74-96 10.5 118 1500 1000 1000 500
98-120 11.8 145 2000 1500 1000 500
122-144 14.2 165 2000 1500 1000 500
146-216 16.3 225 2000 1500 1000 500
218-240 18.5 305 2000 1500 1000 500
242-288 22.7 395 2500 2000 1000 500



Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788





Detail product pictures

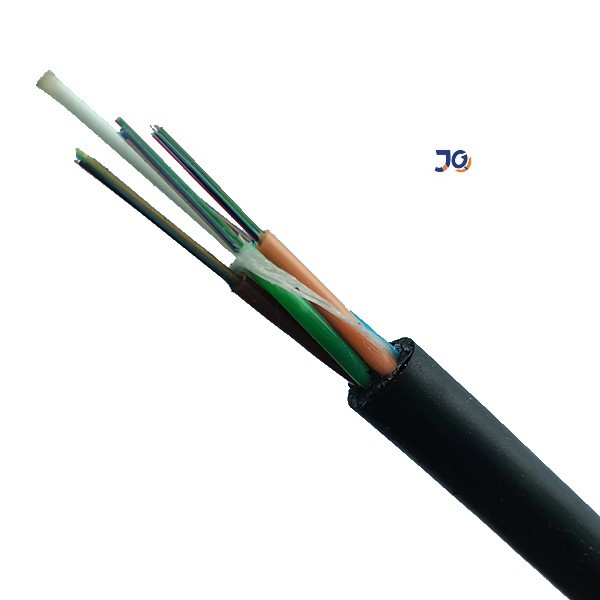

GYFTY Outdoor Aerial Optical Fiber Cable Single Mode G652D 48 Core Fiber Optic Cable 0

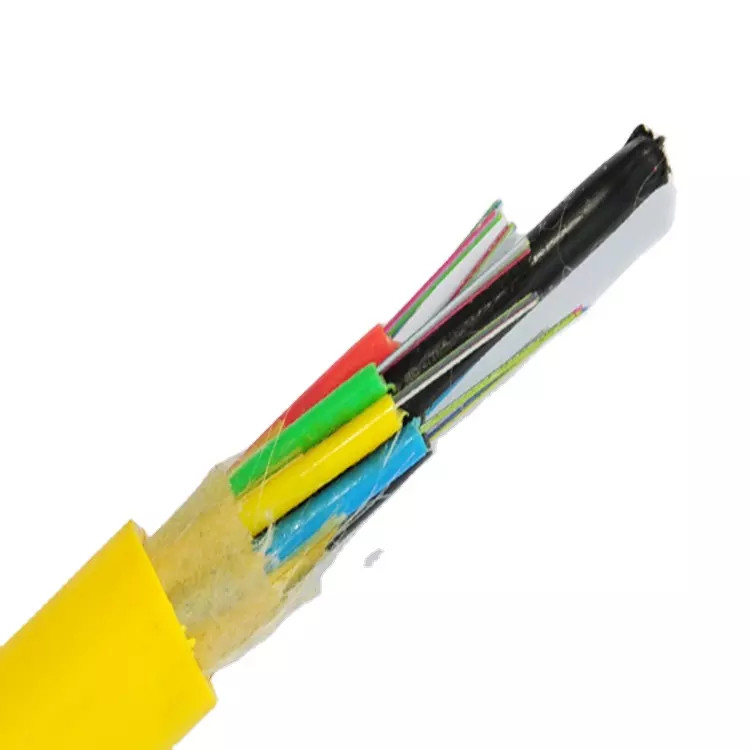

GYFTY Outdoor Aerial Optical Fiber Cable Single Mode G652D 48 Core Fiber Optic Cable 1



                                   Picture shows about the GYFTY-48 C











FAQ



1.  Are you factory direct?

as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.



2.  What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord



3.  Product quality guarantee period?

20 years Guarantee for fiber optic cable



4.  Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
