Mini ADSS 6 Core 12 Core Aerial Fiber Optic Cable ASU G652D
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 6 km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 7 days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 250KM Per day |
| Place of Origin: | China | Brand Name: | JQ/ Customized |
|---|---|---|---|
| Certification: | ISO9001, FCC, ROHS/CCC | Model Number: | GYFTY-24/48/96F |
|
Detail Information |
|||
| Fiber Brand: | YOFC/Fiberhome/ Corning | Color: | Black Or Orange Or Customized |
|---|---|---|---|
| Jacket Metarial: | PE,HDPE/LSZH | Strength Member: | FRP(with PE If Needed) |
| Fiber Count: | 4-288cores | Installation: | Overhead & Duct |
| Drum Length: | 3KM Or Customized | Product Name: | GYFTY Outdoor Fiber Cable |
| Application: | Network/long Distance Communication | ||
| High Light: | Aerial Duct Fiber Optic Cable,96 Cores Fiber Optic Cable,HDPE Jacket Fiber Optic Cable |
||
Product Description
Product Description

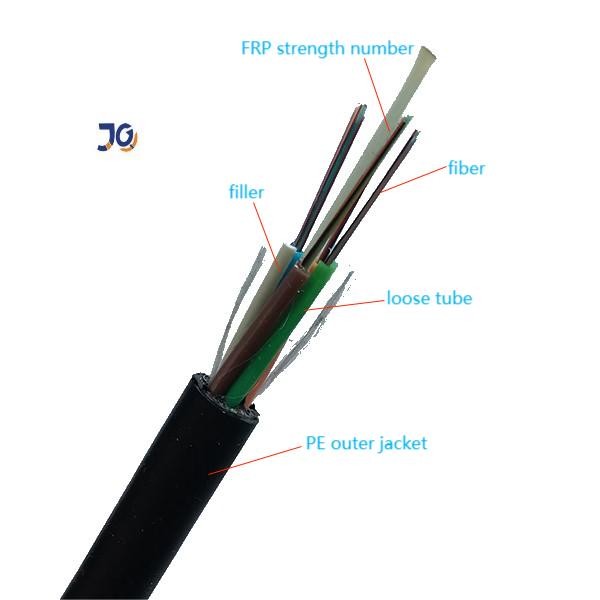

The structure of GYFTY optical cable is to put 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.The center of the cable core is a glass fiber reinforced plastic (FRP), and the loose tube (and filler rope) is twisted around the center strength core to form a compact and round cable core, and the gap in the cable core is filled with water blocking filler. And a layer of polyethylene outer sheath extrud on the outside of the cable core to form a cable.
Features
Fiber Type
OS2 9/125 G652D /OM1 62.5/125μm Multimode – OM2 50/125μm Multimode – 10G OM3 50/125μm Multimode – 10G OM4 50/125μm Multimode (Other Fiber available Too)
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 8.8 | 88 |
10
|
20
|
1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 | ||
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 | ||
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 | ||
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 | ||
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 | ||
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 | ||
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 | ||
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 | ||
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 | ||
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788
Detail product pictures

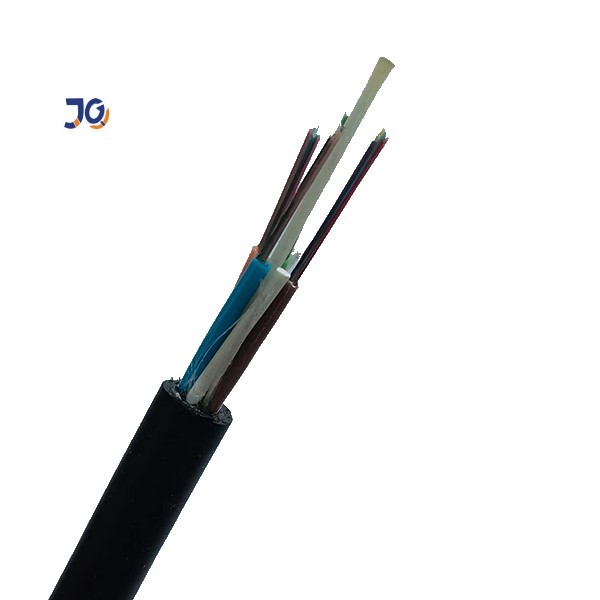

Picture shows about the GYFTY-48 C
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
