GYTY53 GYFTY53 48 96 Direct Buried Single Armor Double Jacket Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788

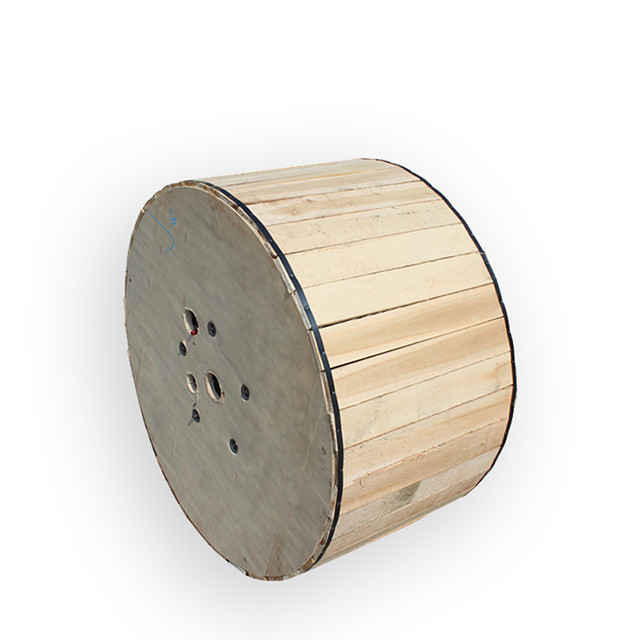

| Minimum Order Quantity : | 3km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 7500KM Per Month |
| Place of Origin: | Guangdong,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001/RoHs/FC | Model Number: | GYTA53-12/48B1.3 |
|
Detail Information |
|||
| Fiber Type: | YOFC,Fiberhome, Corning | Color: | Black Or As Your Required |
|---|---|---|---|
| Jacket: | PE,HDPE/LSZH | Strength Member: | Steel Wire |
| Fiber Count: | 2-144 Cores | Installation: | Directly Buired & Underground |
| Armored: | Steel & Aluminium Tape | Product Name: | Outdoor Optic Fiber Cable |
| Application: | FTTH, OUTDOOR | ||
| High Light: | Single Mode Armored Fiber Optic Cable,Armored Fiber Optic Cable 48 Cores |
||
Product Description
Product Description

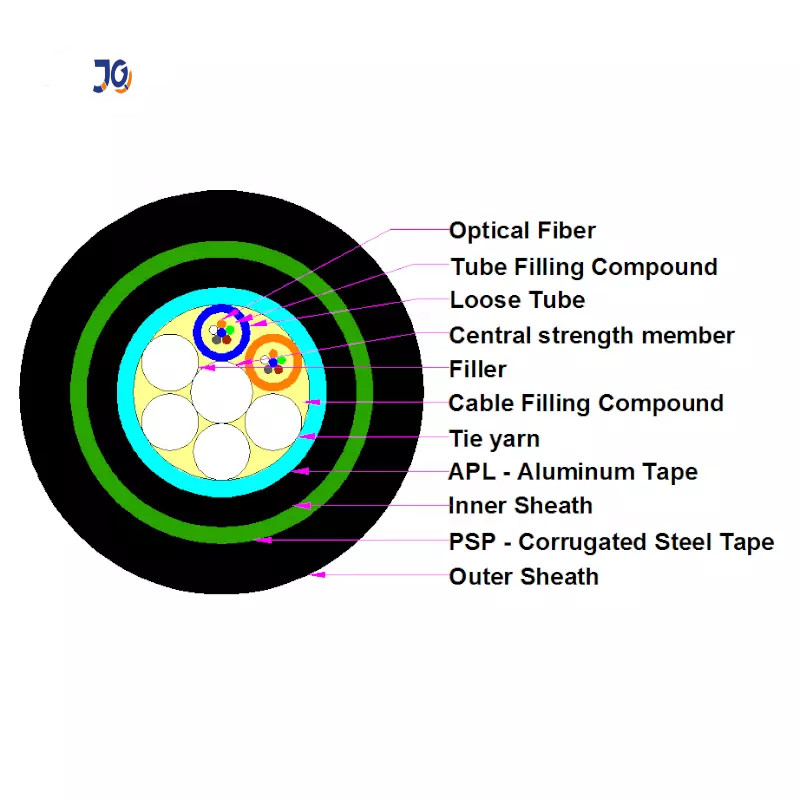

The structure of the GYTA53 cable is a 250µm fiber optic jacket filled with a waterproof compound in a loose tube made of high modulus material.
The center of the cable core is a metal reinforcing core. The loose tube (and filler rope) is twisted around the central reinforcing core to form a compact and round cable core, and the gaps in the cable core are filled with water blocking filler.
Plastic-coated aluminum tape (APL) longitudinally wrap and then extrud with a polyethylene inner sheath, and double-sided plastic-coated steel tape (PSP) longitudinally wrap to extrude a polyethylene sheath into a cable.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-24 | 12.0 | 180 |
10 times Diameter
|
20 Times
|
1000 | 3000 | 1000 | 3000 |
| 26-36 | 12.2 | 195 | 1000 | 3000 | 1000 | 3000 | ||
| 38-60 | 12.5 | 205 | 1000 | 3000 | 1000 | 3000 | ||
| 62-72 | 12.8 | 225 | 1000 | 3000 | 1000 | 3000 | ||
| 74-96 | 13.5 | 245 | 1000 | 3000 | 1000 | 3000 | ||
| 98-120 | 14.4 | 275 | 1000 | 3000 | 1000 | 3000 | ||
| 122-144 | 16.5 | 315 | 1000 | 3000 | 1000 | 3000 | ||

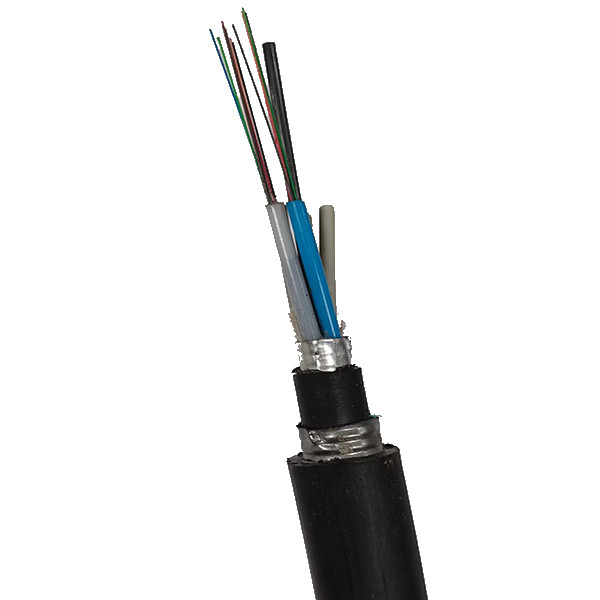

Product showes
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
