GYTY53 GYFTY53 48 96 Direct Buried Single Armor Double Jacket Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 6 km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 9 days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 8000KM Per Month |
| Place of Origin: | China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001/RoHs/CE | Model Number: | GYTA53-48B1.3 |
|
Detail Information |
|||
| Fiber Type: | YOFC,Fiberhome, Corning | Color: | Black Or As Your Required |
|---|---|---|---|
| Jacket: | PE,HDPE/LSZH/AT | Strength Member: | Steel Wire Or FRP |
| Fiber Count: | 4-144 Cores | Installation: | Direct Buired & Underground |
| Armored: | Steel & Aluminium Tape | Product Name: | Outdoor Optic Fiber Cable |
| Fiber Type: | Single Mode And Multimode OM3/OM4 | Sample: | Acceptable |
| High Light: | 48 Core Armoured Fiber Optic Cable,Double Jacket Armoured Fiber Optic Cable |
||
Product Description
Product Description

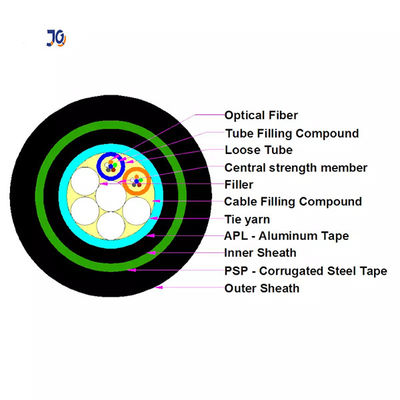

GYTA53 Outdoor Optical Cable is a steel belt armored outdoor direct buried optical cable. The center of the cable core is a metal reinforced core. For some optical cables with a certain number of cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcing core, coated with plastic aluminum strip (APL) longitudinally and extruded with a layer of polyethylene inner sheath, and the double-sided plastic coated steel strip (PSP) is longitudinally wrapped to form a cable with polyethylene sheath.
Duct / underground/Direct buried
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-24 | 12.0 | 180 |
10 times Diameter
|
20 Times
|
1000 | 3000 | 1000 | 3000 |
| 26-36 | 12.2 | 195 | 1000 | 3000 | 1000 | 3000 | ||
| 38-60 | 12.5 | 205 | 1000 | 3000 | 1000 | 3000 | ||
| 62-72 | 12.8 | 225 | 1000 | 3000 | 1000 | 3000 | ||
| 74-96 | 13.5 | 245 | 1000 | 3000 | 1000 | 3000 | ||
| 98-120 | 14.4 | 275 | 1000 | 3000 | 1000 | 3000 | ||
| 122-144 | 16.5 | 315 | 1000 | 3000 | 1000 | 3000 | ||

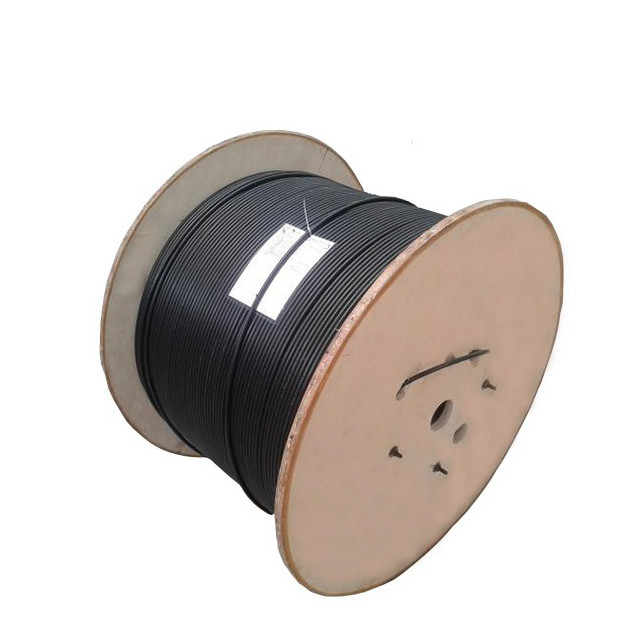

Product showes
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
