Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable
Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable
Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable
Contact Now

Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable

Minimum Order Quantity : 4km Packaging Details : wooden drum
Delivery Time : 9 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 6800KM Per Month
Place of Origin: Guangdong China Brand Name: JQ/OEM
Certification: ISO9001/RoHs/CE Model Number: GYTA53-24B1.3

Detail Information
Fiber Type: YOFC,Fiberhome, Corning Color: Black Or Orange Or Blue
Jacket: PE,HDPE/LSZH/AT Strength Member: Steel Wire Or FRP
Fiber Count: 4-144 Cores Installation: Direct Buired & Underground
Armored: Steel & Aluminium Tape Product Name: GYTA53 Underground Fiber Cable
Fiber Type: Single Mode And Multimode OM3/OM4 Drum Length: 3km Or As Required
High Light:

Underground Direct Buried Fiber Optic Cable

,

Armoured 24 Core Fiber Optic Cable

Product Description

underground direct buried fiber optic cable gyta53 armoured g652d best price 24 core fiber optic cable



Product Description

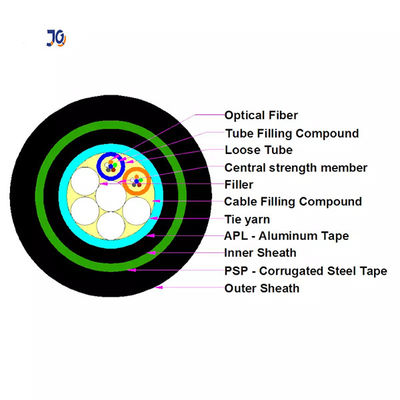

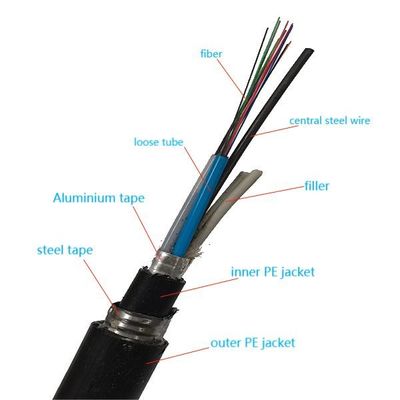

Optical GYTA53 cable is an armored outdoor fiber optic cable of steel tape for direct buried. It consists of a loose tube that is twisted around the central resistance element, the GYTA53 fiber cable has the inner shell of the PE, the longitudinal grooved reinforcement of the steel tape and the outer sheath of the PE. In addition, its internal LAP sheath is longitudinally moisture proof, so the GYTA53 cable has excellent adaptability to the environment and mechanical behavior.



Application





1. Long distance and Local Area Network (LAN) communication.

2. Suitable for direct buired or pipeline laying method.



Specification & Features


Whole section water blocking structure ensures good water blocking performance. Metallic or FRP strength member makes cable have better tensile strength.
The armored layer strengthens tensile strength and improves crush resistance. Polyethylene sheath has good UV resistance. The service life of the product is more than 30 years



The reason why Choose us:





1. On time delivery

2. Customization

3. Factory outlet

4. Large product inventory with massive production line

5. Quality guarantee

6. Product distribution involves multi-fields, dozens of countries including some developed countries.





Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-24 12.0 180







10 times Diameter

















20 Times
Diameter

















 1000 3000 1000 3000
26-36 12.2 195 1000 3000 1000 3000
38-60 12.5 205 1000 3000 1000 3000
62-72 12.8 225 1000 3000 1000 3000
74-96 13.5 245 1000 3000 1000 3000
98-120 14.4 275 1000 3000 1000 3000
122-144 16.5 315 1000 3000 1000 3000





Product showes



Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable 0

Underground Direct Buried Fiber Optic Cable Gyta53 Armoured G652d 24 Core Fiber Optic Cable 1













FAQ



1.  Are you factory direct?

as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.



2.  What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord



3.  Product quality guarantee period?

20 years Guarantee for fiber optic cable



4.  Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
