GYTY53 GYFTY53 48 96 Direct Buried Single Armor Double Jacket Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788

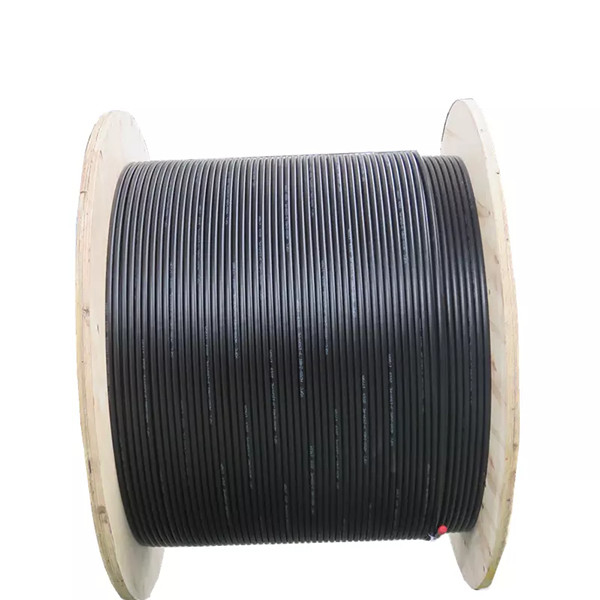

| Minimum Order Quantity : | 5km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 9 days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 6500KM Per Month |
| Place of Origin: | Guangdong China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001/RoHs/CE | Model Number: | GYTA53-24B1.3 |
|
Detail Information |
|||
| Fiber Type: | YOFC,Fiberhome, Corning | Color: | Black Or Orange Or Blue |
|---|---|---|---|
| Jacket: | PE,HDPE/LSZH/AT | Strength Member: | Steel Wire Or FRP |
| Fiber Count: | 4-144 Cores | Installation: | Direct Buired & Underground |
| Armored: | Steel & Aluminium Tape | Product Name: | GYTA53 Underground Fiber Cable |
| Fiber Type: | Single Mode And Multimode OM3/OM4 | Drum Length: | 3km Or As Required |
| High Light: | G652D Direct Buried Fiber Optic Cable,GYTS53 Fiber Optic Cable,Double PE Fiber Optic Cable |
||
Product Description
Product Description

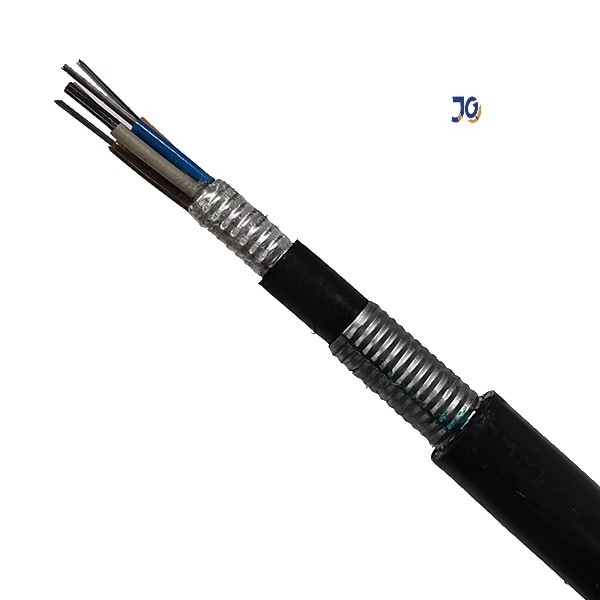

GYTA53 cable is a type of cable based on GYTA with an extra layer of armor and PE sheath. GYTA53 cable is a type of cable that can be directly buried, which can accommodate 2 to 288 cores and is widely used in various areas that need to be buried. The structure of GYTA53 fiber optic cable is to integrate 250. The m fiber is placed in a loose tube made of a high modulus material, and the tube is filled with a waterproof compound. At the center of the cable core is a metal reinforcing core, which for some fiber optic cables requires a layer of polyethylene (PE). The loose sleeve (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water-blocking filler. A polyethylene inner sheath is extruded after the APL is longitudinally coated, and a polyethylene sheath is extruded after the PSP is longitudinally coated to form the cable.
1. Long distance and Local Area Network (LAN) communication.
2. Suitable for direct buired or pipeline laying method.
The reason why Choose us:
1. On time delivery
2. Customization
3. Factory outlet
4. Large product inventory with massive production line
5. Quality guarantee
6. Product distribution involves multi-fields, dozens of countries including some developed countries.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-24 | 12.0 | 180 |
10 times Diameter
|
20 Times
|
1000 | 3000 | 1000 | 3000 |
| 26-36 | 12.2 | 195 | 1000 | 3000 | 1000 | 3000 | ||
| 38-60 | 12.5 | 205 | 1000 | 3000 | 1000 | 3000 | ||
| 62-72 | 12.8 | 225 | 1000 | 3000 | 1000 | 3000 | ||
| 74-96 | 13.5 | 245 | 1000 | 3000 | 1000 | 3000 | ||
| 98-120 | 14.4 | 275 | 1000 | 3000 | 1000 | 3000 | ||
| 122-144 | 16.5 | 315 | 1000 | 3000 | 1000 | 3000 | ||
Product showes
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
