Product Description
singlemode G652D armoured two Steel Wire strength GYXTW Fiber Optic Cable
Description of GYXTW
GYXTW fiber optic cable is a type of fiber optic cable that is widely used in aerial application. This type of fiber optic cable has been praised due to its exceptional performance in Long Distance Symmetric role. As a matter of fact, This fiber optic cable plays an important role in the telecommunication industry and it’s highly recommended by many technicians.
Features
1. Excellent water blocking layer, with good impermeability
2. The outer sheath of steel tape is bonded and metal reinforced leading to excellent tension performance
3. The central design of the beam tube minimizes the impact on the optical fiber
4. Small outer diameter, lightweight, convenient construction
5. Stable fiber excess length control
6. After the cable is formed, the additional attenuation of the GYXTW fiber optic cable is almost zero, and the dispersion value does not change
7. Adapt to most environment
Application
1. suitable for installation in aerial or duct environment for communication between bureaus,
2. metropolitan network.
3. access network and is especially suitable for the situation
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Cable Parameters
| Items |
Specifications |
| Fiber Count |
2~24 |
| Colored Coating Fiber |
Dimension |
250μm+15μm |
| Color |
Blue,Orange,Green,Brown,Gray,White,Red, Black,Yellow,violet,pink,Turquoise |
| Loose Tube |
Dimension |
2.0mm±0.05mm |
| Material |
PBT |
| Color |
Natural |
| Strength Member |
Diameter |
1.0mm/0.7mm |
| Material |
Steel |
| Outer Jacket |
Dimension |
6.0~9.0mm |
| Material |
PE |
| Color |
Black |
Technical Parameters
Fiber
Count |
Cable
Diameter(mm) |
Cable Weight
kg/km) |
Tensile Strength
Long/Short
Term (N) |
Crush Resistance
Long/Short
Term (N/100mm) |
Bending
Radius Static/Dynamic
mm)
|
| 2~12 |
8.0 |
78 |
600/1500 |
300/1000 |
10D/20D |
| 14~24 |
9.0 |
90 |
600/1500 |
300/1000 |
10D/20D |

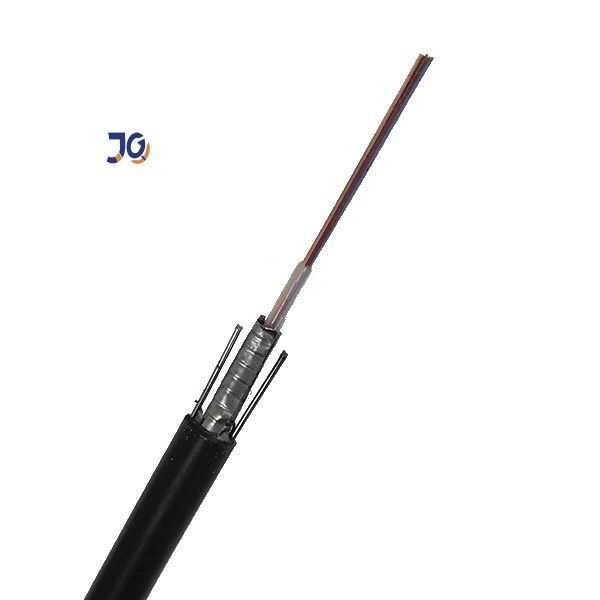

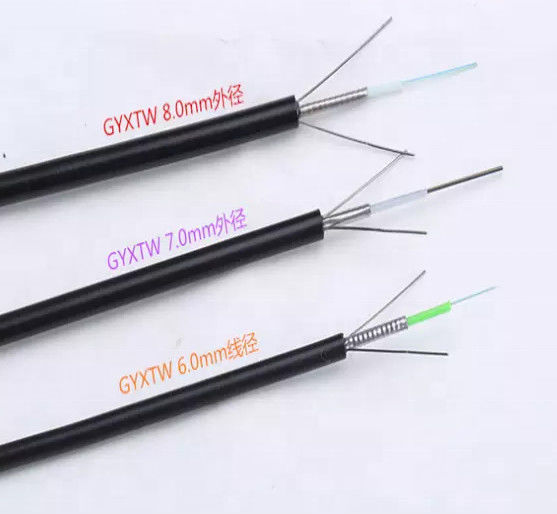

details pictures showes
FAQ
1. Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2. About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
