Product Description
two parallel steel wire strength armoured singlemode GYXTW Fiber Optic Cable
Description of GYXTW

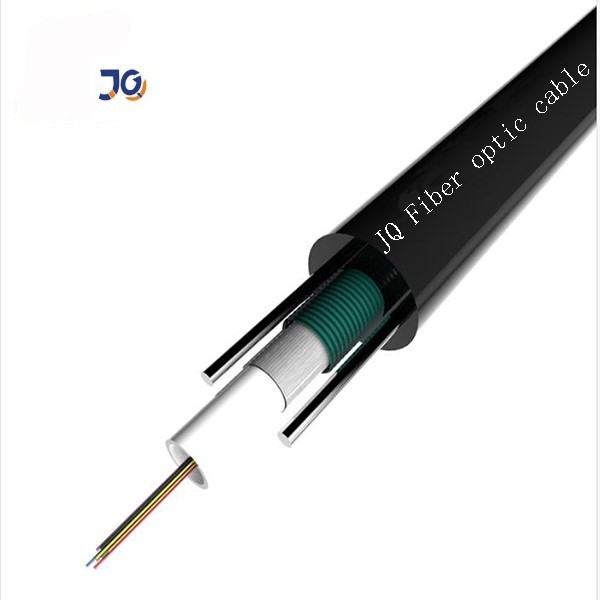

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tube are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two side of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene(PE) sheath.
Features
1. the loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.double wire as strength member provides excellent strain performance.
2. The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance.
3. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.
Application
1. suitable for installation in aerial or duct environment for communication between bureaus,
2. metropolitan network.
3. access network and is especially suitable for the situation
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Cable Parameters
| Items |
Specifications |
| Fiber Count |
2~24 |
| Colored Coating Fiber |
Dimension |
250μm+15μm |
| Color |
Blue,Orange,Green,Brown,Gray,White,Red, Black,Yellow,violet,pink,Turquoise |
| Loose Tube |
Dimension |
2.0mm±0.05mm |
| Material |
PBT |
| Color |
Natural |
| Strength Member |
Diameter |
1.0mm/0.7mm |
| Material |
Steel |
| Outer Jacket |
Dimension |
6.0~9.0mm |
| Material |
PE |
| Color |
Black |
Technical Parameters
Fiber
Count |
Cable
Diameter(mm) |
Cable Weight
kg/km) |
Tensile Strength
Long/Short
Term (N) |
Crush Resistance
Long/Short
Term (N/100mm) |
Bending
Radius Static/Dynamic
mm)
|
| 2~12 |
8.0 |
78 |
600/1500 |
300/1000 |
10D/20D |
| 14~24 |
9.0 |
90 |
600/1500 |
300/1000 |
10D/20D |

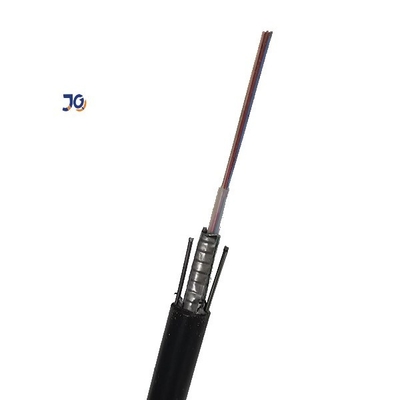

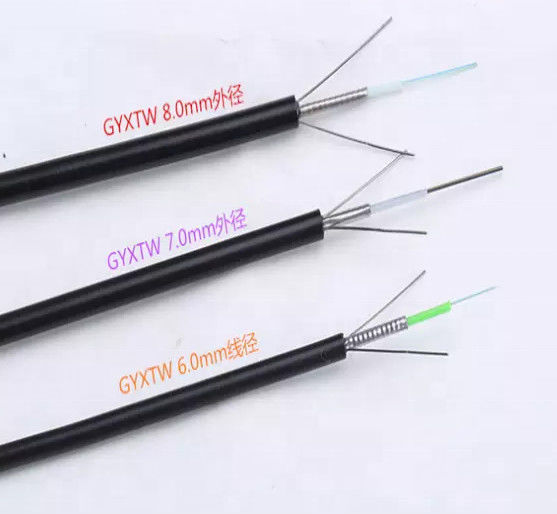

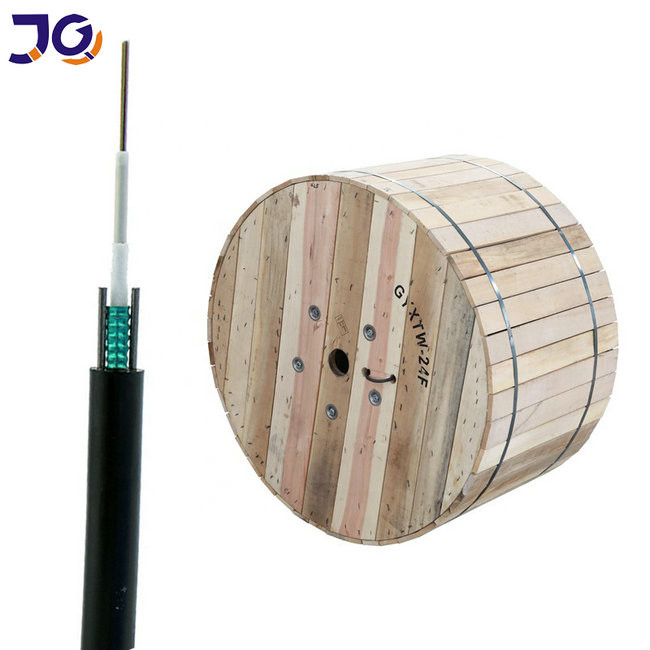

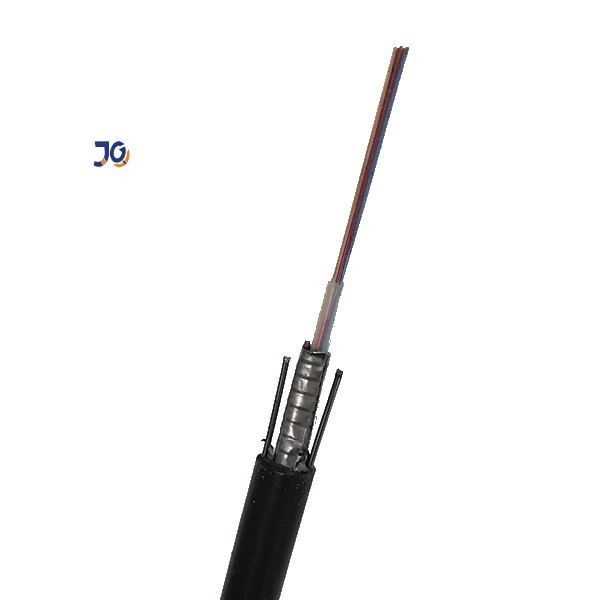

details pictures showes
FAQ
1. Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2. About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
