OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T,Alipay, Western Union |
| Supply Ability : | 6000km |
| Brand Name: | Jiqian | Model Number: | GYXTW |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Certification: | ISO 9001/CE/FCC/ROHS |
|---|---|---|---|
| Cable Brand: | Jiqian | Number Of Conductors:: | 6 |
| Application: | Duct/aerial | Armoured: | Yes |
| Fiber Brand: | Fiberhome/YOFC | Sheath: | HDPE |
| Factory: | Yes | Fiber Options: | Single Mode/multimode |
| High Light: | GYXTW Fiber Optic Cable,Armored GYXTW Fiber Optic Cable,GYXTW Fiber Optic Cable 24 Core |
||
Product Description

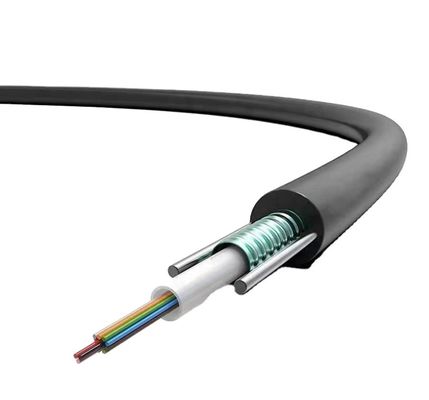

Factory price 2/4/6/8/12/24 core central loose tube armored GYXTW fiber optic cable
Fiber Optic Cable G652D
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.8 | |
| Cladding diameter | μm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | μm | ≤0.5 | |
| Coating diameter | μm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | μm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/ks | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Cable performance:
| Item | Parameter | |
| Fiber Count | 6 | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White | |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT | |
| Color | nature | |
| Filler | Material | none |
| Color | none | |
| Strength Member | Dimension | 1.0mm |
| Material | Galvanized steel wire | |
| Armoured | Material | Corrugated steel tape |
| Outer jacket | Material | HDPE |
| Color | Black | |
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days,It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
Welcome to visit our factory
Contact me at +8618998347595 to get free sample
