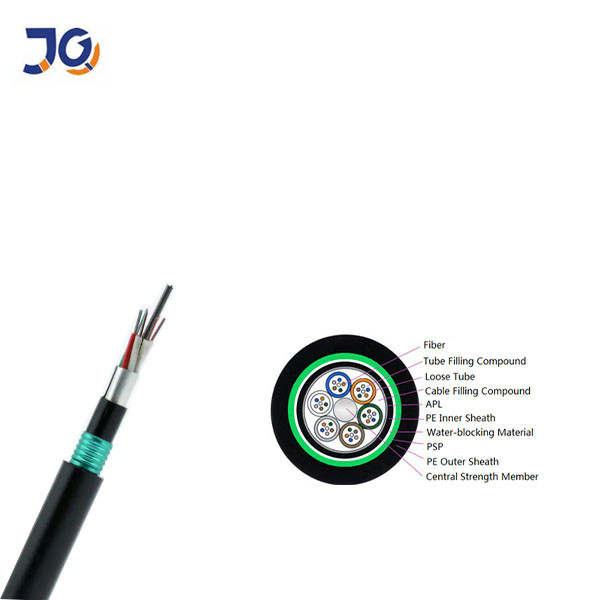

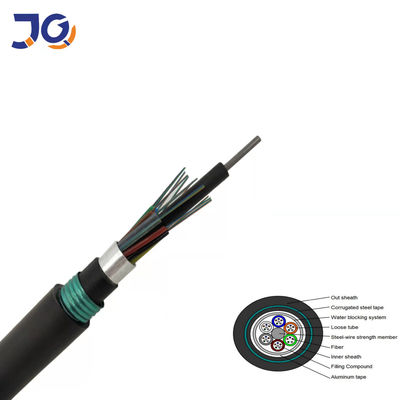

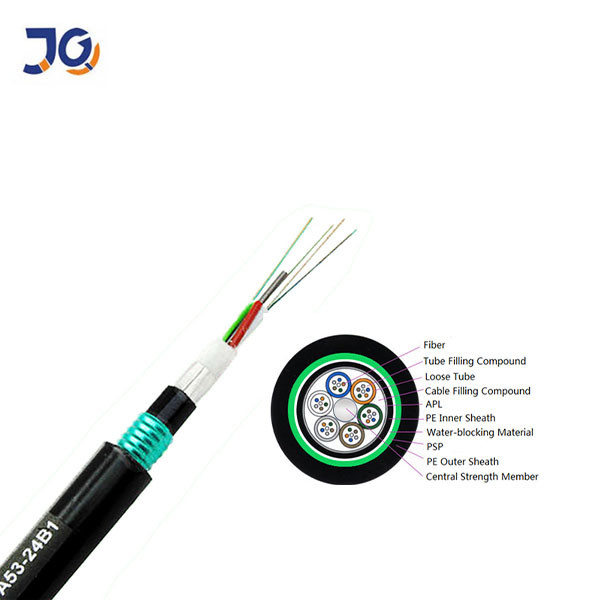

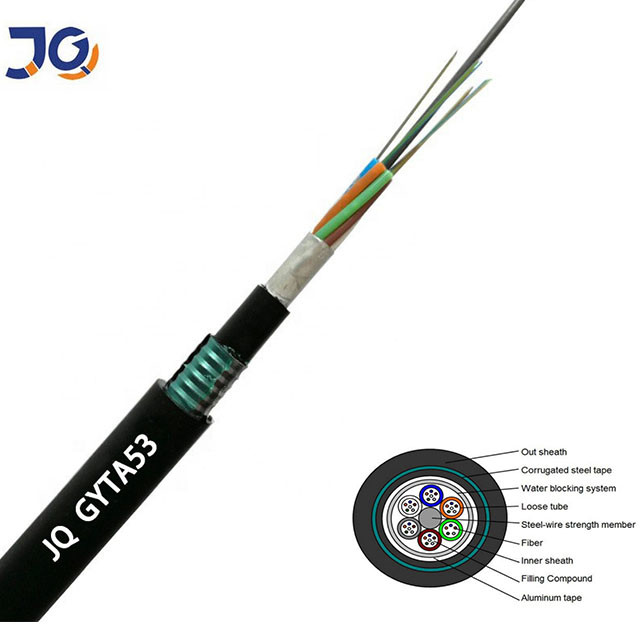

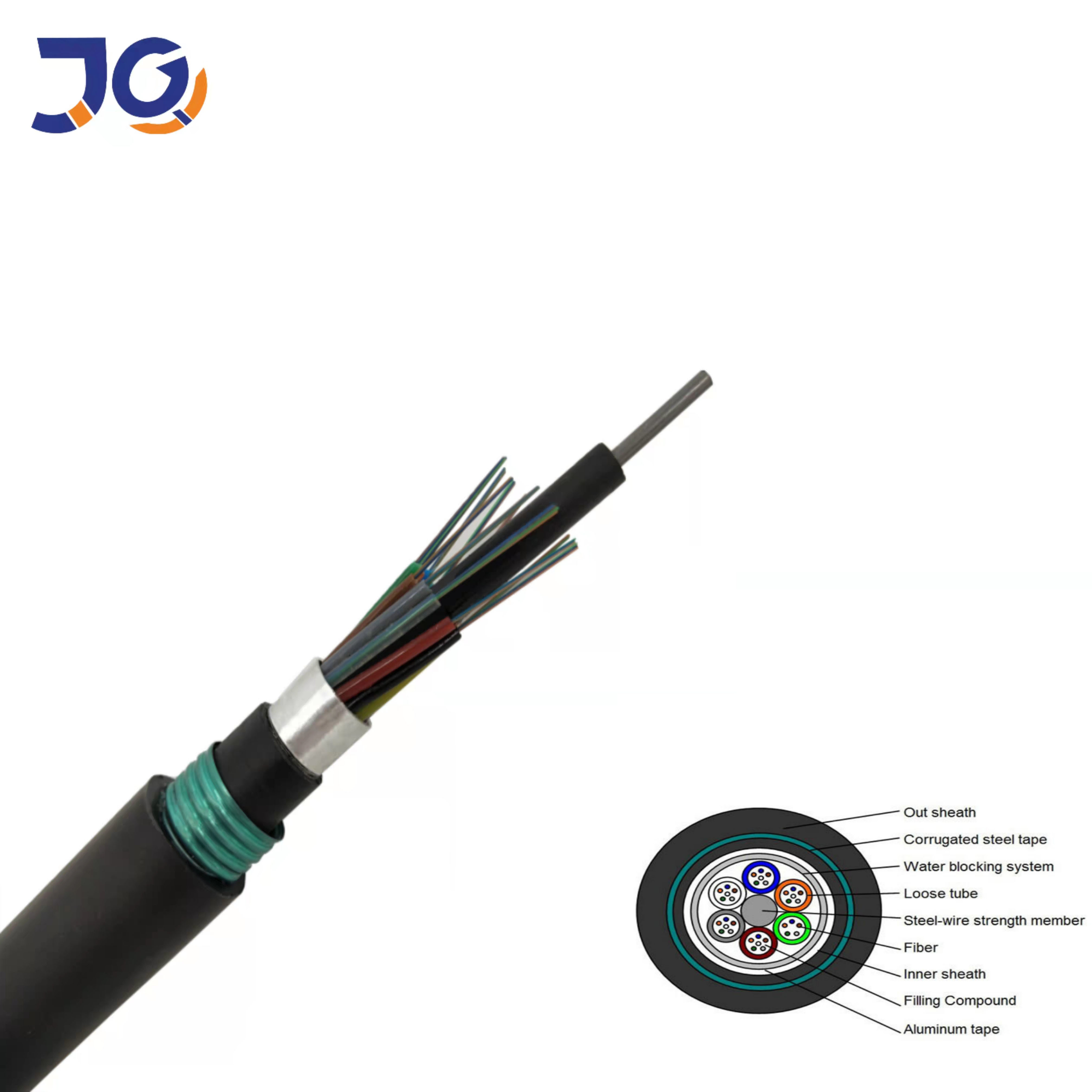

Underground Direct Burial Double Jackets Armored GYTA53 4 8 12 24 48 96 144 Core Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : 2/3km
Delivery Time : 3-5 days Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 6000 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001/CE/FCC/ROHS Model Number: GYTA53

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Numer: GYTA53 OEM: Available
Sheath Material: HDPE Factory: Yes
Fiber Count: 4-288 Cores Certification: CE/ROHS/FCC/ISO9001
Application: Underground Directly Buried
High Light:

GYTA53 Fiber Optic Cable

,

Double Jackets Armored Fiber Optic Cable

Product Description

     Applications of Fiber Optic Cable GYTA53
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation harsh environments where mechanical impact on the cable is to be expected, f or instance in direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Fiber Optic Cable GYTA53 Applications:
♦ Laying modes: Direct Buried
♦ Long-distance communication, local trunk line, CATV & computer networks system
Conclusion
GYTA53 fiber optic cable is a durable type of fiber optic cable and that fact has enabled it to effectively penetrate in the market. Soon, GYTA53 fiber optic cable will be the market leader in the communication industry due to its fiable growing trend. Moreover, it has built its brand in areas that are subject to high pressure since its most suitable in those areas. This article therefore, analyses the fanatstic features and uses of GYTA53 fiber optic cable.





Fiber Optic G652D


Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm μm 9.2±0.4
1550nm μm 10.4±0.8
Cladding diameter μm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error μm ≤0.5
Coating diameter μm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error μm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100



Company profile:

1.Located in Guangzhou China

2.12 years experiance of producing fiber optic cable

3.CE/ROSH/FCC/ISO9001 Certifications

4.Exporting fiber optic cable to all over the world
Underground Direct Burial Double Jackets Armored GYTA53 4 8 12 24 48 96 144 Core Fiber Optic Cable 0
Underground Direct Burial Double Jackets Armored GYTA53 4 8 12 24 48 96 144 Core Fiber Optic Cable 1
Underground Direct Burial Double Jackets Armored GYTA53 4 8 12 24 48 96 144 Core Fiber Optic Cable 2

Underground Direct Burial Double Jackets Armored GYTA53 4 8 12 24 48 96 144 Core Fiber Optic Cable 3
Exhibition
Underground Direct Burial Double Jackets Armored GYTA53 4 8 12 24 48 96 144 Core Fiber Optic Cable 4

Certification:

Underground Direct Burial Double Jackets Armored GYTA53 4 8 12 24 48 96 144 Core Fiber Optic Cable 5

FAQ:



1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10years history.

2.What is your fiber brand ?
Jiqian
3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.



Underground Direct Burial Double Jackets Armored GYTA53 4 8 12 24 48 96 144 Core Fiber Optic Cable 6
