Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | Normally 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 6000km per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS-48B1 |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
|---|---|---|---|
| Product Name: | ADSS Fiber Optic Cable 48 Cores | Strength Member: | FRP+Kevlar Yarn |
| Fiber Type: | G652 G655 | Application: | Aerial Self-support |
| Factory: | Yes | Cable Type: | All Dielectric Fiber Optic Cable |
| Sheath: | Double Sheaths | Length: | 1km,2km,3km,4km,5km |
| High Light: | ADSS Fiber Optic Cable 96 Core,G652 ADSS Fiber Optic Cable |
||
Product Description

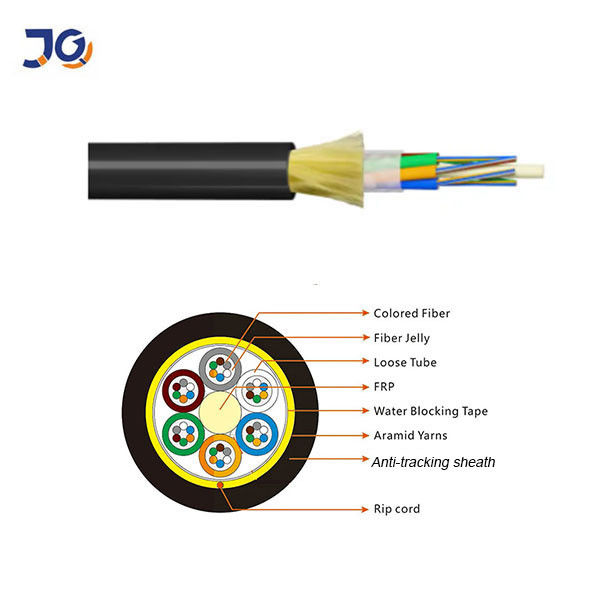

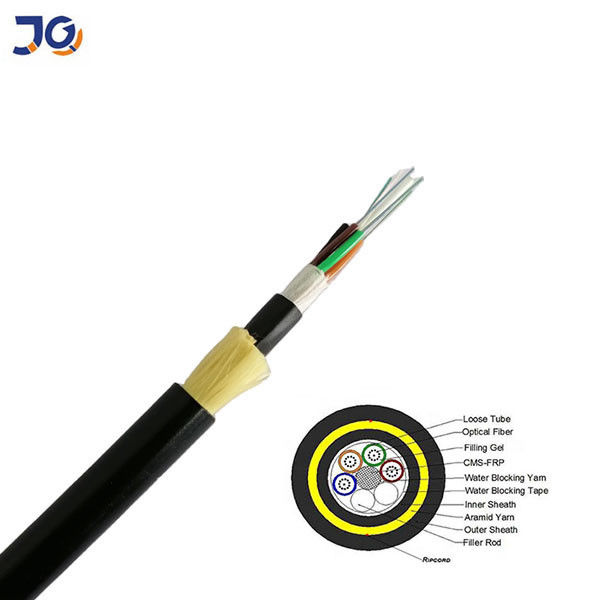

Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant
filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength
member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE
(polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable
is completed with PE or AT (anti-tracking) outer sheath.
Fiber parameter
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.00 dB/km | ≤0.00 dB/km | |||
| @1550nm | ≤0.00 dB/km | ≤0.00 dB/km | |||
| Bandwidth(Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cutoff Wavelength | ≤1260nm | ≤1480nm | |||
Packing: plywood drum 2/3/4/5 one drum or as your requirement
Delivery:By sea/road/train
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment method?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
Welcome to visit our factory
Contact me at +8618998347595 to get free sample
