1. Small cable diameter(adapt for bad climate), light weight, 100m span, low attached load on tower.
2. Non-metal structure, good insulation, anti-thunder.
3. Fine production technology, even force for aramid yarn, with superior stress flexibility.
Application
1. Erect on the same pole with power line in new and old power line.
2. Areas of strong electric field, anti-thunder, etc.
3. Long span communication system.
1. Erect on the same pole with power line in new and old power line.
2. Areas of strong electric field, anti-thunder, etc.
3. Long span communication system.
Cable performance

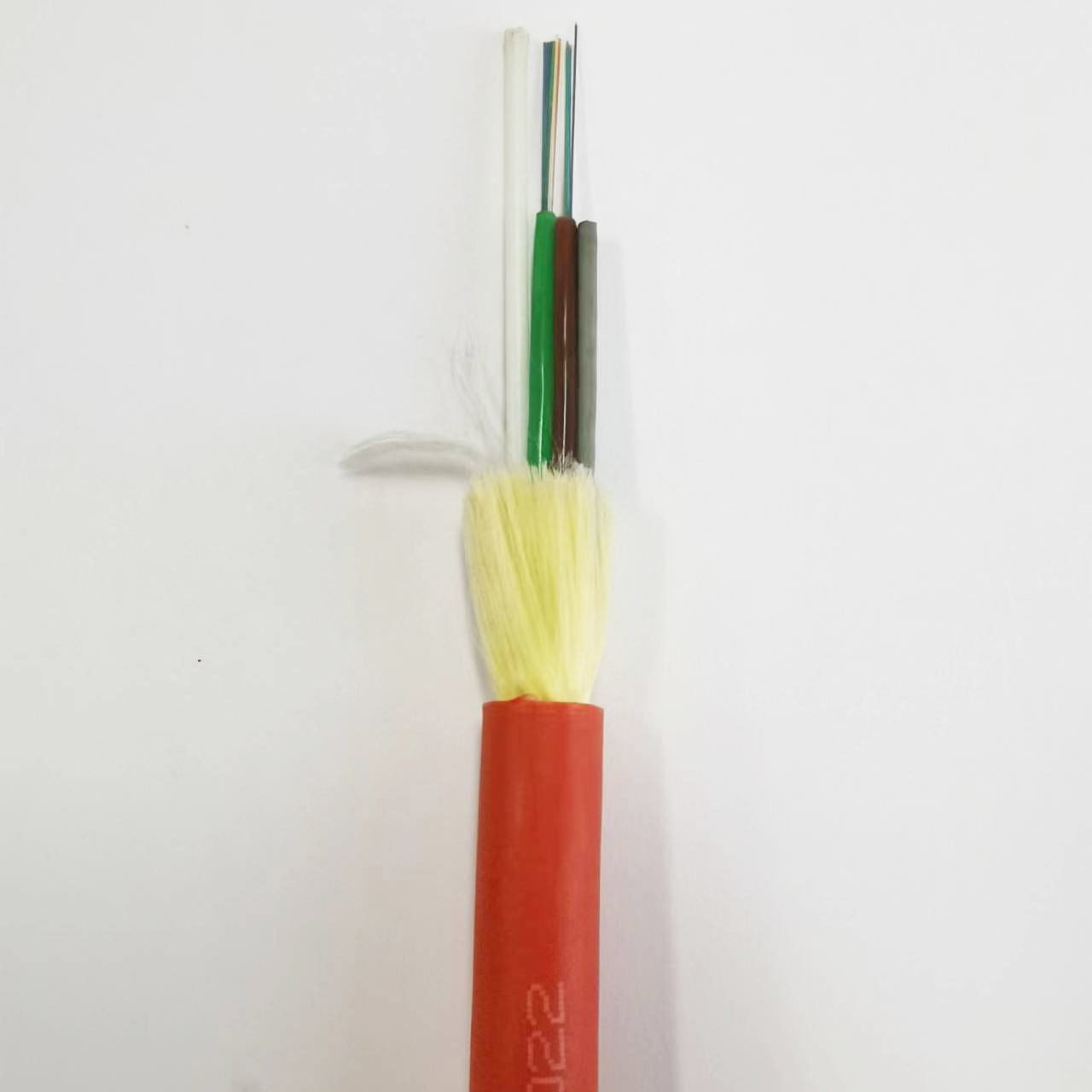

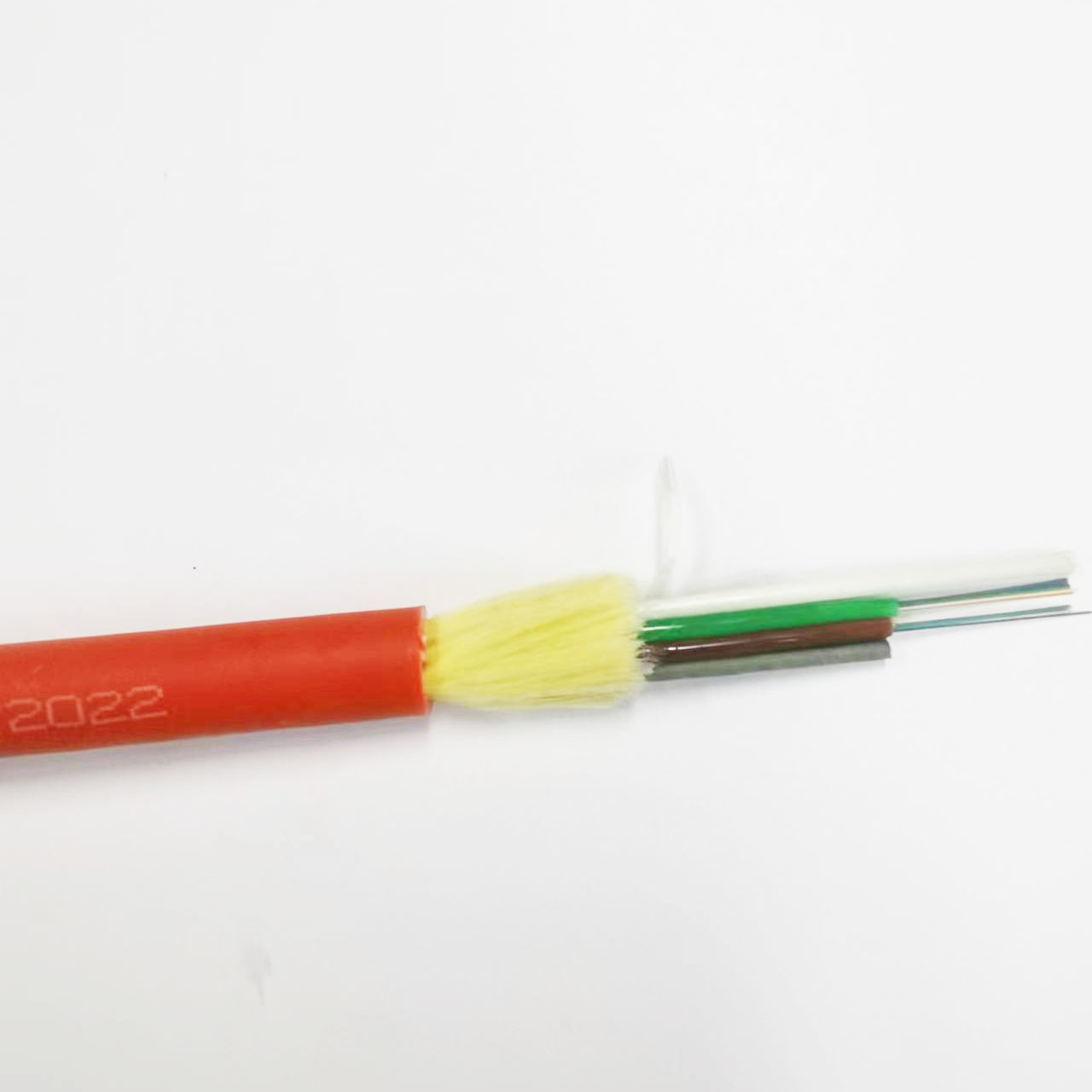

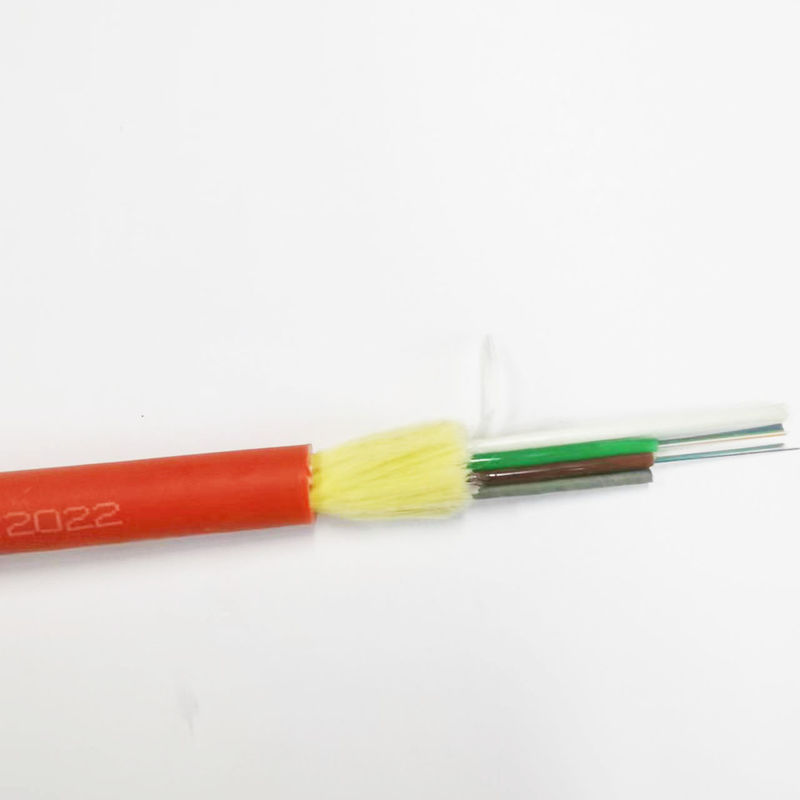

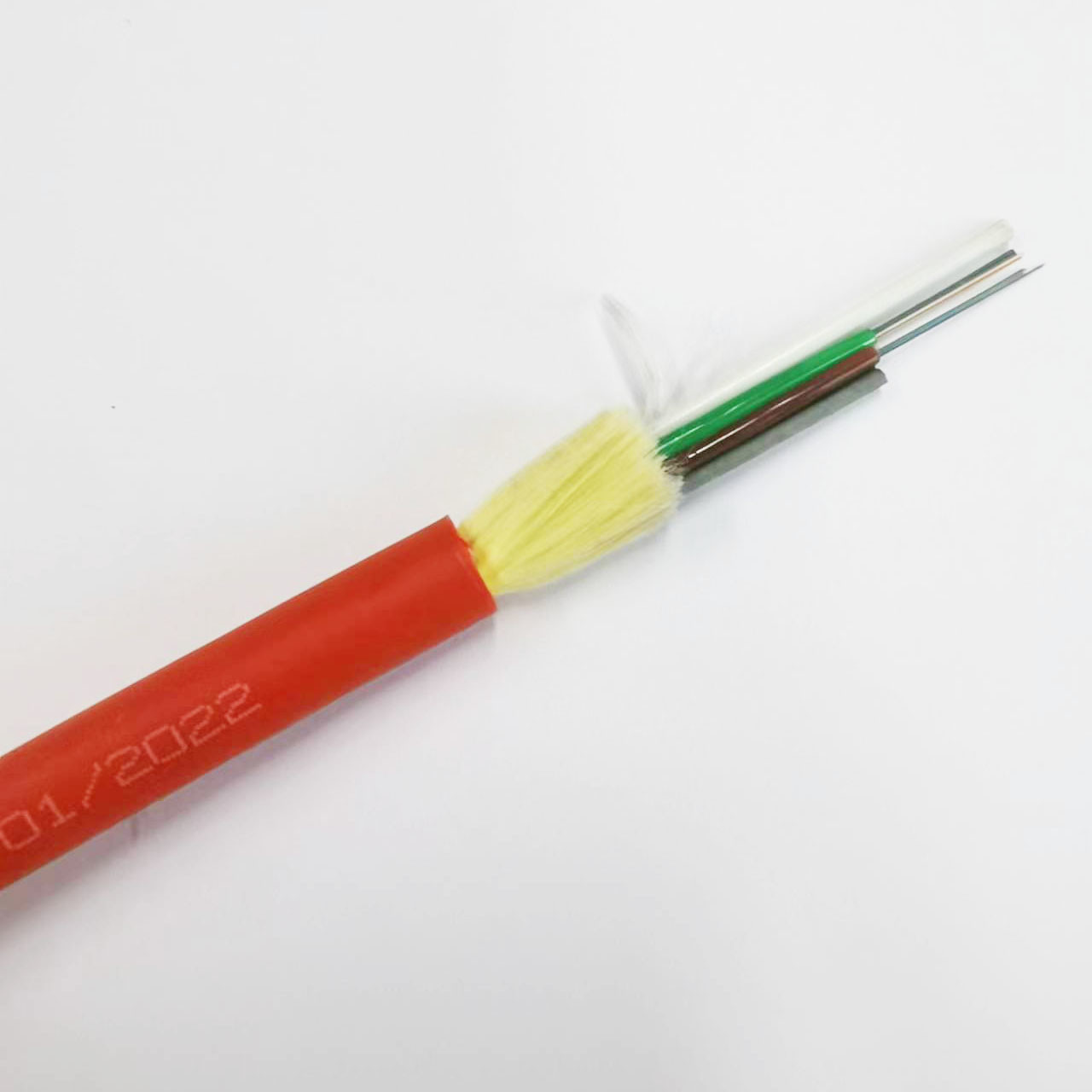

| Cable structure | Name | ADSS-12A1-PE-100 |
| Center to strengthen core FRP | 2.0mm | |
| Loose tube (filling gel) | 2.2±0.1mm | |
| Out sheath thickness PE | 1.8±0.2mm | |
| Cable diameter | 10.0±0.3mm | |
| cable weight | 85±10%kg/km | |
| Loose tube (pcs) | 2 | |
| Each tube contains fibers | 6cores | |
| Loose tube color |
Blue,Orange,Green,Brown,
|
|
| Optical fiber color |
Blue,Orange,Green,Brown,Gray,Natural, Red,Black,Yellow,Purple,Pink,Aqua |
