Underground GYTA GYTA53 Fiber Optic Cable 24 48 96 144 Core G652D SM Armored Cable Fiber Optic

Minimum Order Quantity : 1km Packaging Details : 2/3/4km or as per your requirements
Delivery Time : Usually 5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 6000 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001/CE/FCC/ROHS Model Number: GYTA/GYTA53

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Numer: GYTA/GYTA53 OEM: Available
Sheath Material: PE Manufacturer: Yes
Fiber Count: 4-288 Cores Certification: CE/ROHS/FCC/ISO9001
Application: Underground Directly Buried
Highlight:

GYTA53 Fiber Optic Cable

,

Underground GYTA Fiber Optic Cable

Product Description

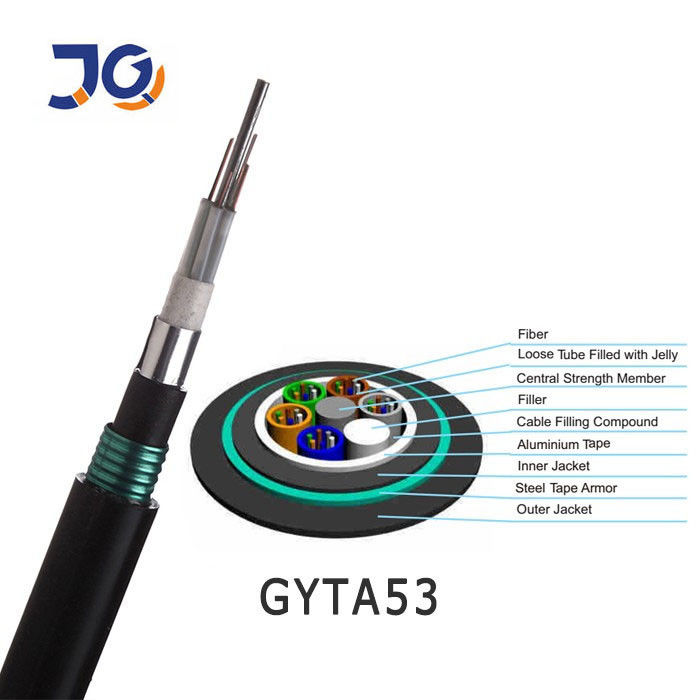

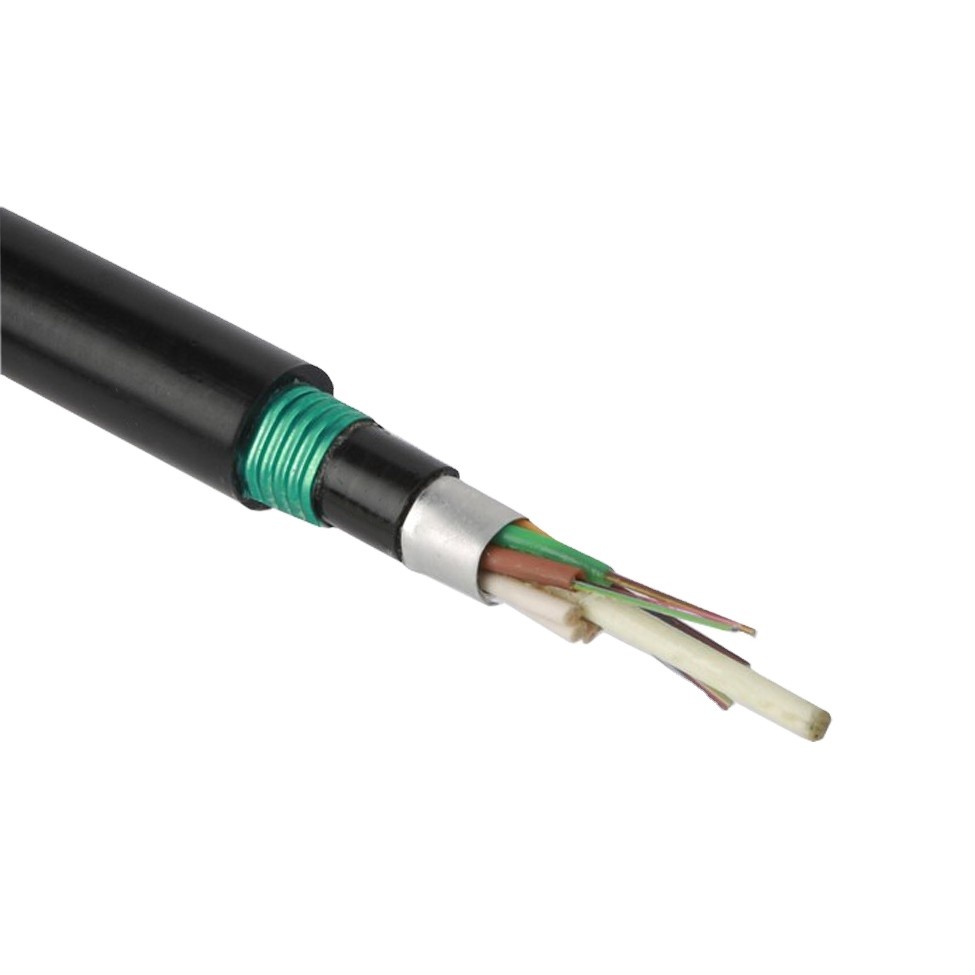

GYTA53 Armor Double sheaths Double steel tapes 2-288 Cores For Directly Buried

Underground GYTA GYTA53 Fiber Optic Cable 24 48 96 144 Core G652D SM Armored Cable Fiber Optic 0





Fiber count







Structure



Fibers per tube



Loose tube diameter (mm)



CSM

diameter/pad diameter (mm)

Nominal Thickness of outer jacket

(mm)



Cable diameter/ Height (mm)

    Cable

net weight          (kg/km)

    12 1+5 6 2.0 1.4 1.8±0.2 11.5±0.2 140
24 1+5 6 2.0 1.4 1.8±0.2 11.5±0.2 140
48 1+5 12 2.0 1.6 1.8±0.2 12.2±0.2 145
96 1+8 12 2.0 1.4/3.2 1.8±0.2 13.8±0.2 180

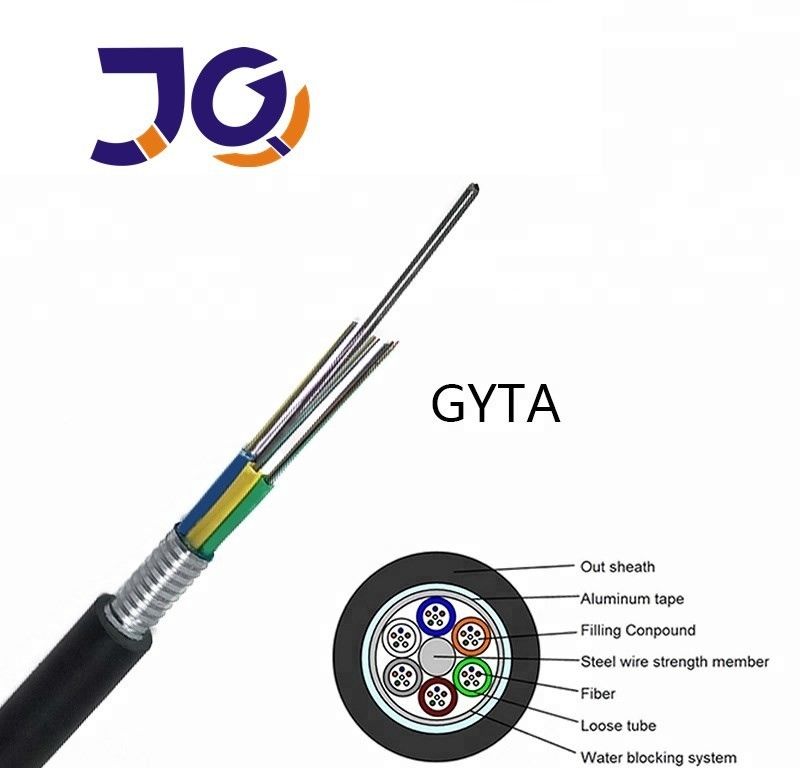

GYTA Armored Single Steel Tape Fiber Optic Cable 2-288 Cores For Duct



Underground GYTA GYTA53 Fiber Optic Cable 24 48 96 144 Core G652D SM Armored Cable Fiber Optic 1







Fiber count







Structure



Fibers per tube



Loose tube diameter (mm)



CSM

diameter/pad diameter (mm)

Nominal Thickness of outer jacket

(mm)



Cable diameter/ Height (mm)



Cableweight    (kg/km)

     12 1+5 6 2.0 1.4 1.8±0.2 8.5±0.3 75
24 1+5 6 2.0 1.4 1.8±0.2 8.5±0.3 75
48 1+5 12 2.0 1.5 1.8±0.2 9.3±0.3 90
96 1+8 12 2.0 1.4/3.2 1.8±0.2 11.5±0.3 120
Fiber parameter G652D
Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm μm 9.2±0.4
1550nm μm 10.4±0.8
Cladding diameter μm 125.0±1
Cladding non-circularity % 1.0
Core/cladding concentricity error μm 0.5
Coating diameter μm 245±5
Coating non-Circularity % 6.0
Coating/cladding concentricity error μm 12.0
Cable cut-off wavelength nm 1260



Attenuation Coefficient

1310nm dB/km 0.36
1550nm dB/km 0.22
Proof stress level kpsi ≥100

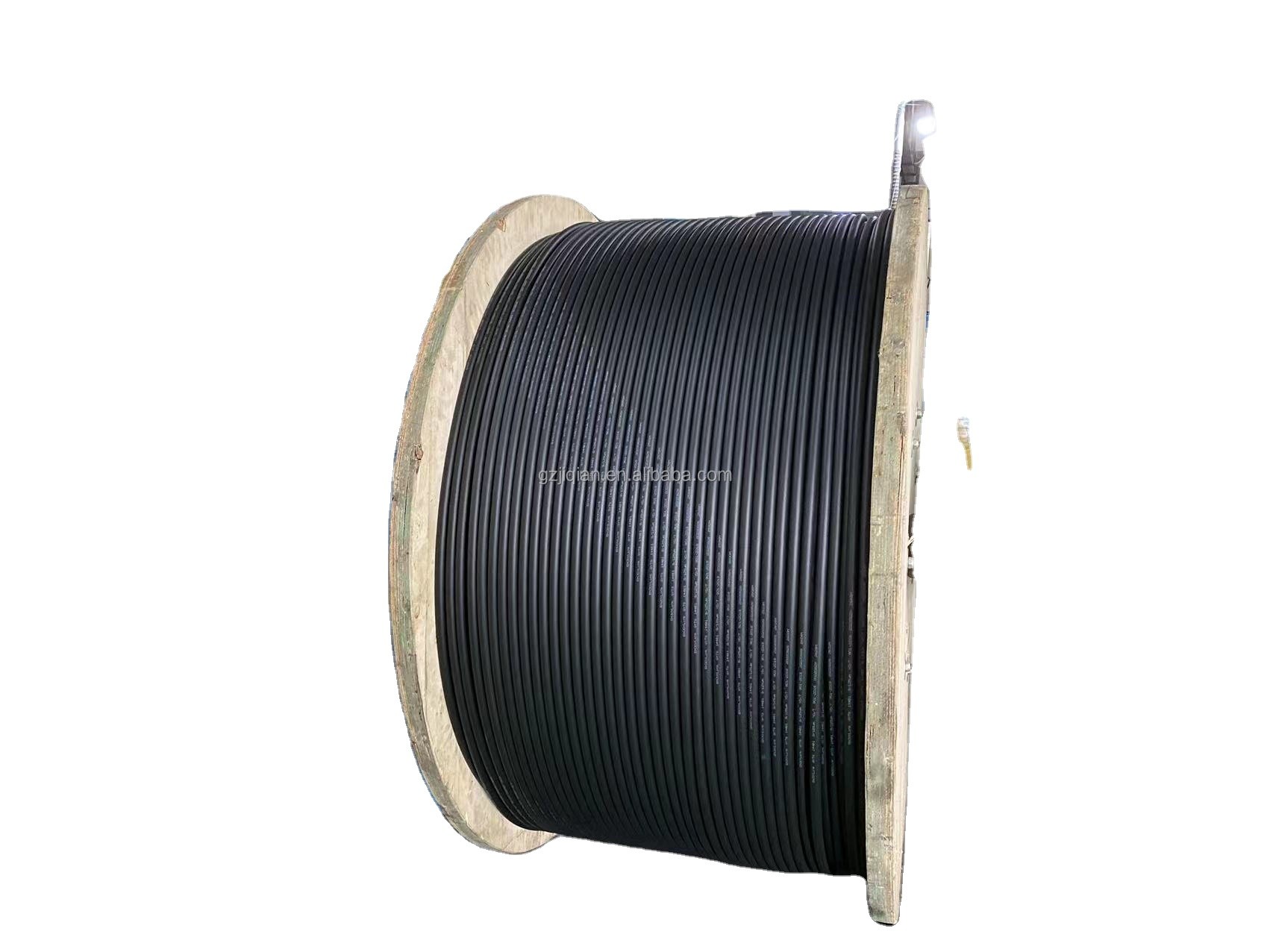

Packing: Plywood drum,2/3/4/5km One Drum or as per your requirements
Shipping:By sea LCL/FCL
Underground GYTA GYTA53 Fiber Optic Cable 24 48 96 144 Core G652D SM Armored Cable Fiber Optic 2
Underground GYTA GYTA53 Fiber Optic Cable 24 48 96 144 Core G652D SM Armored Cable Fiber Optic 3
Company profile:

1.Located in Guangzhou China

2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Underground GYTA GYTA53 Fiber Optic Cable 24 48 96 144 Core G652D SM Armored Cable Fiber Optic 4

Underground GYTA GYTA53 Fiber Optic Cable 24 48 96 144 Core G652D SM Armored Cable Fiber Optic 5

Exhibition
Underground GYTA GYTA53 Fiber Optic Cable 24 48 96 144 Core G652D SM Armored Cable Fiber Optic 6

Certification:

Underground GYTA GYTA53 Fiber Optic Cable 24 48 96 144 Core G652D SM Armored Cable Fiber Optic 7

FAQ:



Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes


Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



Welcome to visit our factory
