2 cores 4 cores FTTH fiber optic cable flat cable GJXH/GJXFH with steel wire or FRP
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GJYXCH |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Cable Structure: | Self-supporting With Messenger Wire |
| Messenger: | Steel Wire | Package: | Wooden Drum/Customized |
| Application: | FTTH FTTB FTTX Network | Oem: | Available |
| Keywords: | Drop Cable | ||
| High Light: | LSZH Fiber Cable,Ftth Fiber Cable,GJYXCH Fiber Cable |
||
Product Description
Product Description:
GJYXCH FTTH drop cable

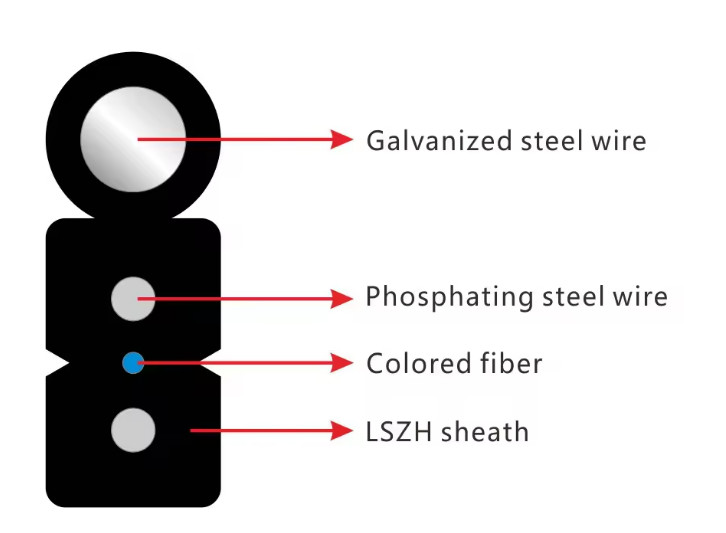

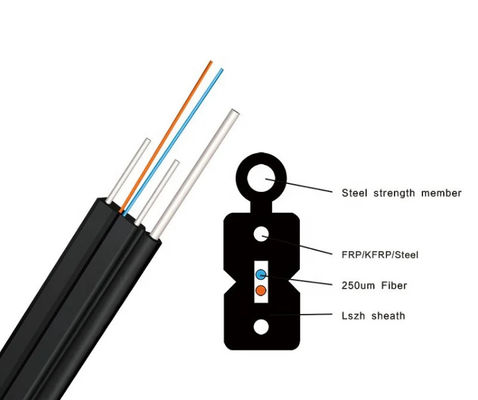

The optical ber unit is positioned in the centre. Two parallel Fiber Reinforced (Steel Wire) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Characteristics:
1. Non-metal reinforcement and layer design ensure that the cable has good mechanical and temperature characteristics.
2. The casing is filled with buffer grease to protect the optical fiber and waterproof.
3. High-strength non-metallic reinforcement and glass yarn bear axial load.
4. The cable core filled with water blocking ointment can effectively waterproof.
5. It can effectively prevent rats from breaking the cable.
Application:

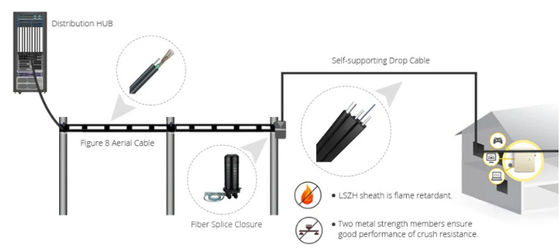

■Adapted to Outdoor distribution.
■Long distance and local area network communication.
■Suitable for aerial pipeline laying method.
Specification:
| Fiber count | 1F/2F/4F | |||||
| Attenuation | 1310nm:≤0.34 1550nm:≤0.21 | |||||
| Color Of fiber | Blue Orange Green Brown | |||||
| Fiber Type | G652D/G657A1/G657A2 | |||||
| Strength member | Steel wire/FRP/KFRP | |||||
| Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti | |||||
| Cable Diameter dimensions | 2.0( Height) × 3.0W ± 0.1 mm(width) | |||||
| Operation temperature range | -20 ℃ to + 70 ℃ | |||||
| Installation temperature range | -0 ℃ to + 60 ℃ | |||||
| Transport and storage temperature range | -20 ℃ to + 70 ℃ | |||||
| Tension Load (N) | Short term :800N Long term :500N | |||||
| Crush Load(N) | Long term 1000 N/100mm Short term:2200N/100mm | |||||
| Minimal installation bending radius | 30 x OD | |||||
| Minimal operation bending radius | 15 x OD | |||||
| Cable marking | The marking length 1meter apart , as required | |||||
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

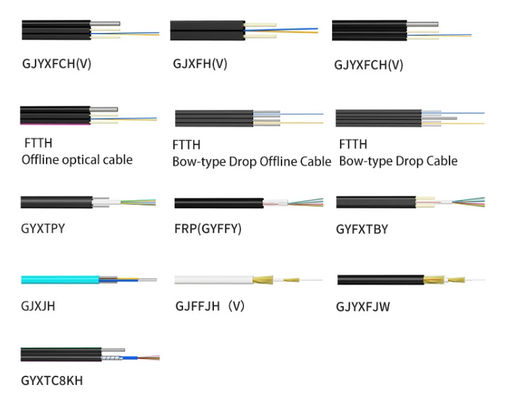

Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
