Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable

Minimum Order Quantity : 1km Packaging Details : 2/3km or as per your requirements
Delivery Time : Usually 5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 6000 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001/CE/FCC/ROHS Model Number: GYTA33

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Numer: GYTA33 OEM: Available
Sheath Material: PE Manufacturer: Yes
Fiber Count: 4-288 Cores Certification: CE/ROHS/FCC/ISO9001
Application: Underwater
High Light:

48 Cores Optic Cable GYTA33

,

144 Cores Optic Cable GYTA33

,

96 Cores Optic Cable GYTA33

Product Description

Underwater Fiber Cable GYTA33 12 Cores G652D SM Stranded Steel Wire Armoured Fibre Optic Cable

GYTA33 fiber optic cable is an underwater use fiber optic cable it is steel wires armored to be suitable for installation in harsh environment, GYTA33 armored optical fiber cable can also be direct buried underground.GYTA33 is with loose tube technology which makes the fibers good secondary excess length and allows the
fibers free movement in the tube. These features keep the fiber stress free while the cable is subjected for longitudinal stress.
Optimum mechanical protection such as high tensile, crush and impact resistant performances are achieved by the steel wire armor and the double jacket structure.

Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable 0

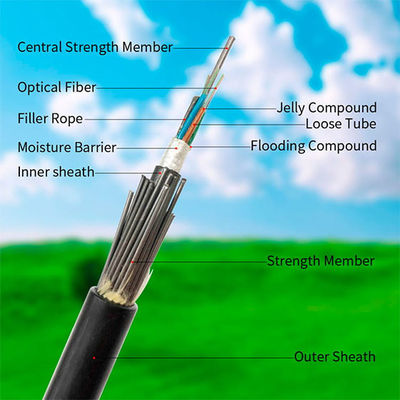

GYTA33 optical fiber cable is full cross-section water-blocking structure to ensure good water blocking and moisture resistance.Loose tube is filled with special ointment for a key protection of fiber. The phosphate wire center stiffening member is of high modulus and corrosion resistance. Double-sided vertically-clad laminated corrugated aluminum tape with thin round steel wire armor ensures the mechanical resistance to compression, tensile, and ballistic performance, and meets the application requirements of climbing direct burial and underwater laying.

Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable 1



Fiber Parameters:



Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm μm 9.2±0.4
1550nm μm 10.4±0.8
Cladding diameter μm 125.0±1
Cladding non-circularity % 1.0
Core/cladding concentricity error μm 0.5
Coating diameter μm 245±5
Coating non-Circularity % 6.0
Coating/cladding concentricity error μm 12.0
Cable cut-off wavelength nm 1260



Attenuation Coefficient

1310nm dB/km 0.36
1550nm dB/km 0.22
Proof stress level kpsi ≥100

Lead time:Usually 7days,it depends on order quantity
Shipping methods:by sea LCL/FCL,It depends on order quantity
Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable 2
Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable 3
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 13 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America,Mideast and Southeast Asia.Africa etc
Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable 4PppPrinting:
Cable Printing:
Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable 5

Exhibition
Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable 6

Certification:

Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable 7

FAQ:



1.Are you the real manufacturer?
Yes. We are the real manufacturer with 13 years history.

2.What is your fiber brand ?
YOFC/Fiberhome


3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days,it depends on order quantity

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

Submarine Fiber Optic Cable GYTA33 48 96 144 Cores Under Water Optical Fiber Cable 8
