12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : 2/3/4km or as per your requirements
Delivery Time : Usually 5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 6000 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001/CE/FCC/ROHS Model Number: MGTSV

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Numer: MGTSV OEM: Available
Sheath Material: LSZH Manufacturer: Yes
Fiber Count: 4-288 Cores Certification: CE/ROHS/FCC/ISO9001
Application: DUCT/Underground
High Light:

Flame Retardant MGTSV Fiber Optic Cable

,

12 Core MGTSV Fiber Optic Cable

,

24 Core MGTSV Fiber Optic Cable

Product Description

12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable

12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable 012 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable 1

MGTSV is suitable for coal, gold, iron ore and other mines. It has the flame retardant, rodent resistance property, so it is a
good choice for mines. Especially for the accident-prone land mines, to ensure smooth communication, reduce losses when the accident happens.

The steel armor helps to protect the cable from rat bite, ensures bullet proof ability. Double jackets structure have nice
properties of moisture resistance and crush resistance. Besides, the out sheath is flame retardant. Loose tube material itself has
good hydrolysis resistance. Waterproof performance ensures the safety of underground mine.



Fiber G652D:

Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm μm 9.2±0.4
1550nm μm 10.4±0.8
Cladding diameter μm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error μm £0.5
Coating diameter μm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error μm £12.0
Cable cut-off wavelength nm £1260



Attenuation Coefficient

1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100

Cable performance
Item Parameters
Fiber Count 48





Colored coated fiber

Dimension 250µm±15µm



Color

Blue,Orange,Green,Brown,

Gray,White,Red,Black,Yellow, Purple,Pink,Aqua



Loose tube

Dimension 2.0mm
Material PBT
Color Blue,Orange,Green,Brown



Filler

Material PE
Color Black



Central Strength Member

Dimension 1.5mm
Material Steel wire
Armoured Material Aluminium



Inner jacket

Material PE
Color Black



Outer jacket

Material LSZH
Color Blue

12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable 2

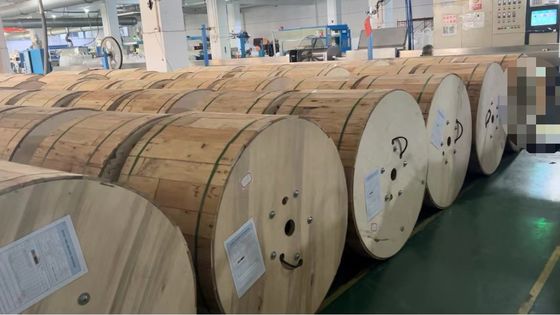

Packing: Plywood drum,2/3/4/5km One Drum or as per your requirements
Shipping:By sea LCL/FCL
12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable 3
12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable 4
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable 5

Exhibition
12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable 6

Certification:

12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable 7

FAQ:



1.Are you the real manufacturer?
Yes. We are the real manufacturer with 13 years history.

2.What is your fiber brand ?
YOFC/Fiberhome


3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
