All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead
All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead
All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead
Contact Now

All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead

Place of Origin: Guangzhou China Brand Name: JQ
Certification: ISO9001 Model Number: ADSS

Detail Information
Operating Temperature: -40℃~+70℃ Application: Overhead
Name: ADSS Fiber Optic Cable Attenuation: 1310nm: ≤0.36dB/km, 1550nm: ≤0.22dB/km
Fiber Count: 2-144 Jacket Color: Black
Delivery Time: 5-7days Packaging Details: 4km
Strenght Member: FRP
Highlight:

All-dielectric ADSS Cable

,

Overhead ADSS Cable

,

Self-supporting ADSS Cable

Product Description

All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead

Product Description:



Outdoor FiberOptic Cable



High quality,long distance transmission filber Reinforced FRP strength member,and Water-Resistant Brand NEW PE or HDPE AT cable sheath

All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead 0



Features:

High quality PE/HDPE material
cable sheath, very smooth
surface, anti-UV, flame-Resistant
All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead 1
All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead 2


Applications:

Aerial

It is designed to withstand temperatures from -40℃ to +85℃,

All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead 3



Technical Parameters:

Name ADSS Fiber Optic Cable
Fiber Count 2-144
Cable Span 100M/200M/300M/400M
Fiber Type Single-mode
Cable Length 1km/2km/3km/4km/5km
Operating Temperature -40℃~+70℃
Application Overhead
Fiber Grade G.652D
Bending Radius Static: 10D/Dynamic: 20D
Jacket Color Black


All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead 4

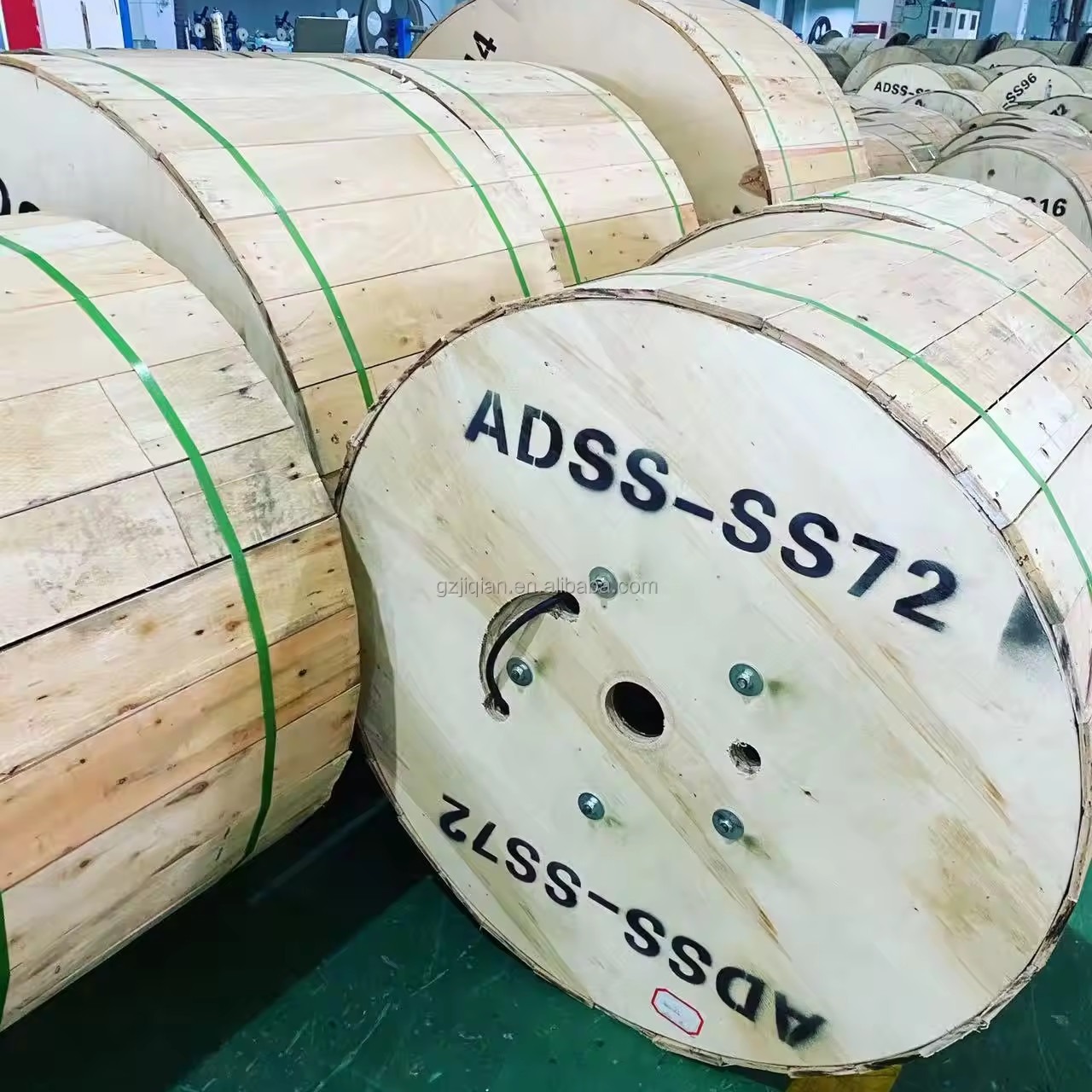

Packing and Shipping:

All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead 5



All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead 6

Cable Mark/Printing



OEM SERVICE



All-dielectric Self-supporting Optical Cable ADSS Cable For Overhead 7

FIBER ATTENUATION TESTING
