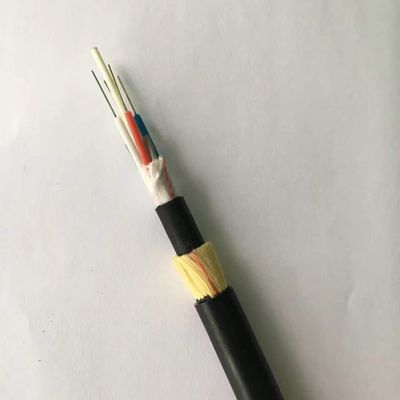

Single Jacket ADSS Fiber Optic Cable 80m 100m 120m Span
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351

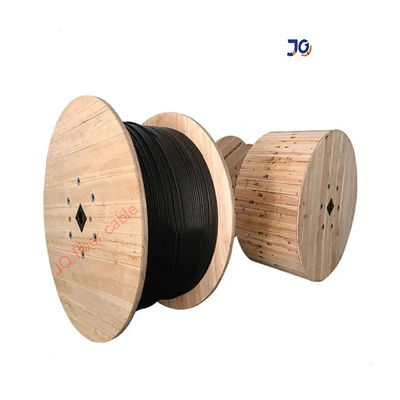

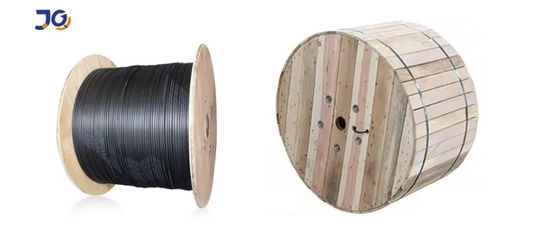

| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Place of Origin: | Guangdong，China | Brand Name: | JQ |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | ADSS |
|
Detail Information |
|||
| Model Number: | ADSS-96F | Type: | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 | Length: | As Required |
| Color: | Customized | Strength Member: | Aramid Yarn |
| Jacket:: | Double PE Sheath | Loose Tube Material: | PBT |
| Outer Sheath: | PE Or As Your Request | Package: | Wooden Drum/Customized |
| Application: | Duct | Oem: | Available |
| Span: | 50m-1000m | Certification: | CE/ROHS/ISO9001 |
| Highlight: | Outdoor ADSS Cable,96 Core ADSS Cable,Double jacket ADSS Cable |
||
Product Description

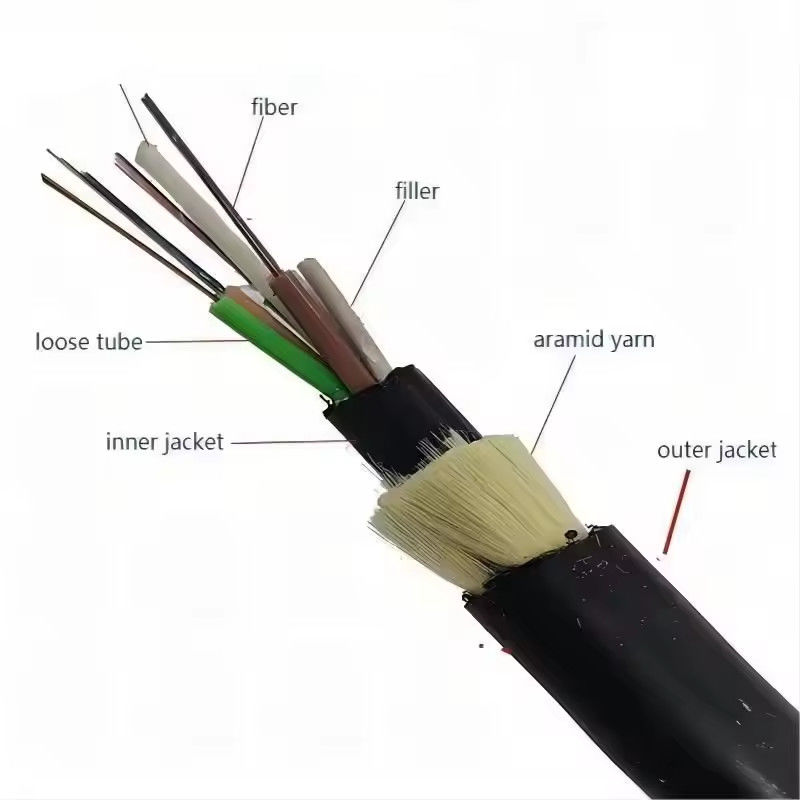

ADSS cable is loose tube stranded. Fiber, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic ) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE(polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.
1. PE outer jacket -double jackets
2. FRP central members
3. RIP CORD
4. FIBER JELLY
5. Loose tube
6. Fibers
7. Aramid yarns
Characteristics:
1.Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
2.Excellent mechanical performance
3.Good flexibility and bending performance
4.Small outer diameter, lightness and compact construction
Application:
* The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
* For overhead power lines under 110kV, PE outer sheath is applied.
* For power lines equal to or over 110kV, AT outer sheath is applied.
Specification:
Company:
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
