Outdoor Communication Cable 24 36 48 Core Double Sheath Fiber Optic Cable GYTA53

Contact Now

Outdoor Communication Cable 24 36 48 Core Double Sheath Fiber Optic Cable GYTA53

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou,China	Brand Name:	JQ/OEM
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	GYTA53

Detail Information
Fiber Type:	G652D	Color:	Black
Jacket:	PE	Fiber Count:	2-288cores
Product Name:	Stranded Loose Tube Armored Cable	Installation:	Aerial & Duct
Oem:	Available	Application:	Telecommunication
Type:	Singlemode &Multimode	Name:	Outdoor Armor Fiber Optic Cable
Highlight:	36 Core Outdoor Communication Cable , 24 Core Outdoor Communication Cable , 48 Core Outdoor Communication Cable

Product Description

Outdoor Communication Cable 24 36 48 Core Double Sheath Fiber Optic Cable GYTA53

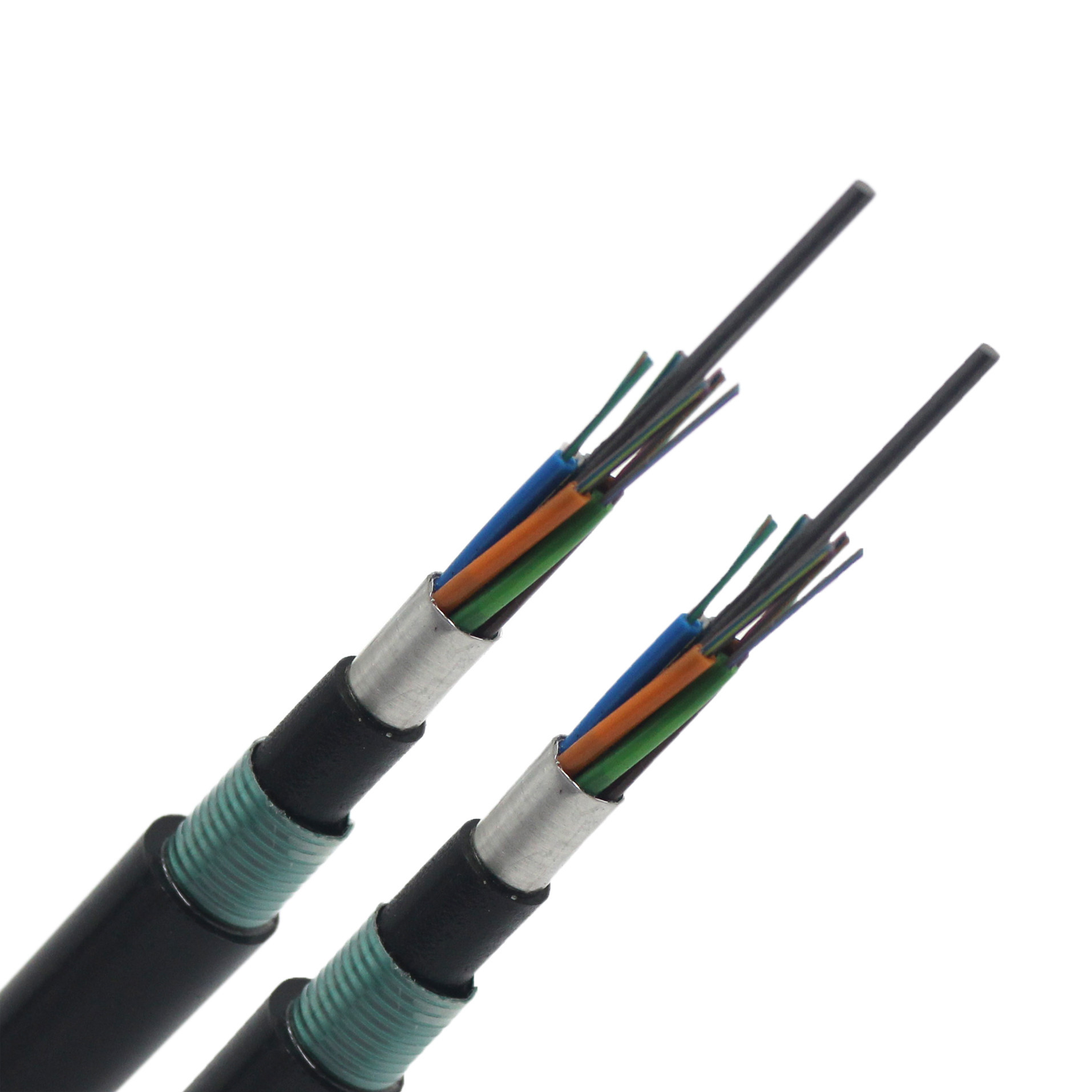

Product show

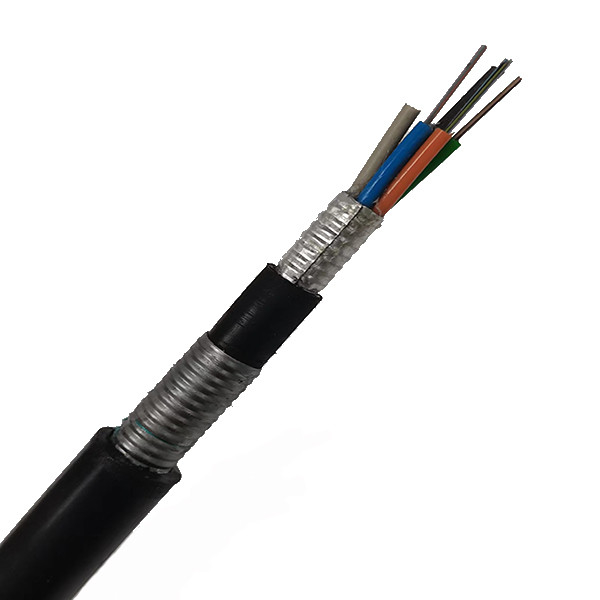

Real Picture for Reference

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Color Code of the optical fiber

optical fiber color code	1	2	3	4	5	6
	Blue	Orange	Green	Brown	Slate	White
	7	8	9	10	11	12
	Red	Black	Yellow	Purple	Pink	Aqua

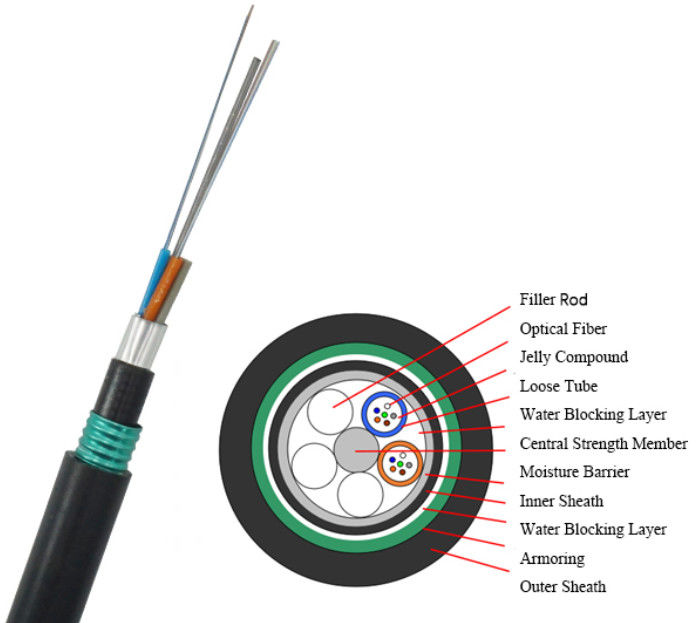

Cable Dimensions and Constructions

Items		Specifications
Fiber Count		24CORE
Cable structure		5+1
Loose Tube	Number	2
	Fiber counts per tube	12
	Dimension	2.0mm±0.1mm
	Material	PBT
	Filling	Gel
	Color	Blue,Orange.
Central Strength Member	Material	Steel Wire
Central Strength Member	Diameter(mm) Approx.	1.5±0.1mm
Outer/inner Jacket	Dimension	11.5± 0.2mm
	Material	PE
	Thickness	1.5-1.8mm
	Color	Black
Armoring	Material	Steel tape +Aluminum tape
Application		Underground Directly buried

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information

Application

Suitable for directly buired laying method

Packaging detail:

3km / export wooden drum (your request is available )

Remark:Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Outdoor Communication Cable 24 36 48 Core Double Sheath Fiber Optic Cable GYTA53 2

Outdoor Communication Cable 24 36 48 Core Double Sheath Fiber Optic Cable GYTA53 3

Note:
1. Storage/Operating Temperature:-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st
