Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33

1km
MOQ
Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D
Color: Black
Jacket: HDPE
Fiber Count: 4-144cores
Product Name: Stranded Loose Tube Armored Cable
Oem: Available
Application: Underground Buired
Name: Underground Directly Buried Armored Cable
Cable Type: Double Jacket Double Armored
Armored: Aluminun Tape+Steel Wire
Highlight:

Submersible Cable 72 Cores

,

Submersible Cable 96 Cores

,

Submersible Cable 144 Cores
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC SDOC
Model Number: GYTA53+33
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33

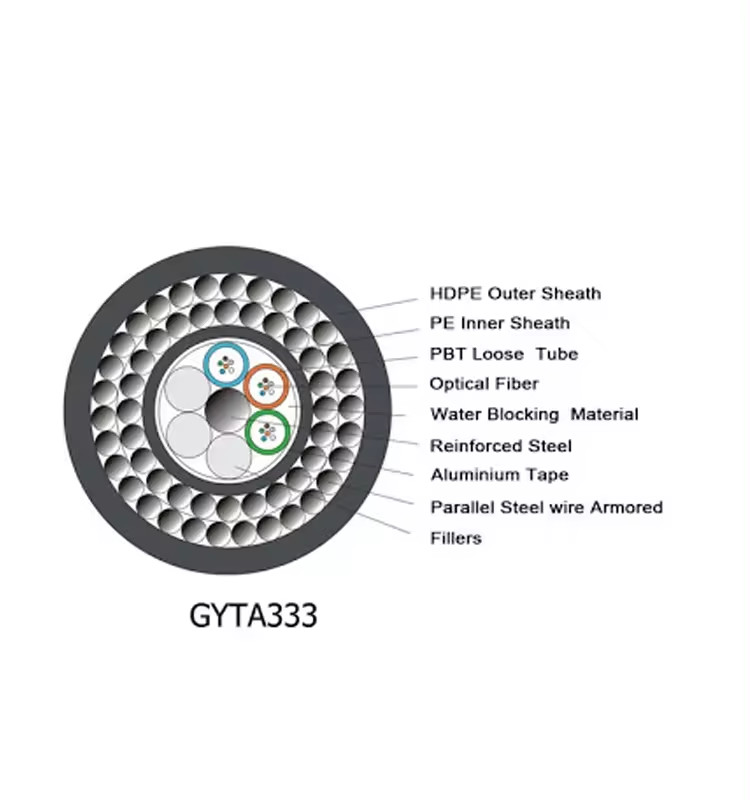

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33 0
Note : This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information





Application

Suitable for directly buired laying or Underwater method

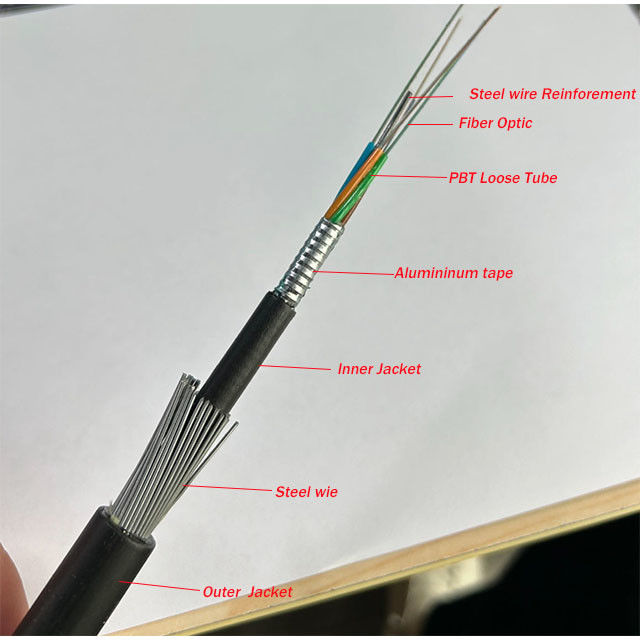

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33 1





Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 13.5 245

10
Times
Diameter

















20
Times
Diameter

















 4000 10000 3000 5000
32-36 13.8 252 4000 10000 3000 5000
38-60 14.5 275 4000 10000 3000 5000
62-72 15.0 285 4000 10000 3000 5000
74-96 15.5 295 4000 10000 3000 5000
98-120 16.0 305 4000 10000 3000 5000
122-144 17.0 315 4000 10000 3000 5000
146-216 19.0 345 4000 10000 3000 5000
218-240 20.5 365 4000 10000 3000 5000
242-288 21.5 395 4000 10000 3000 5000







Product show

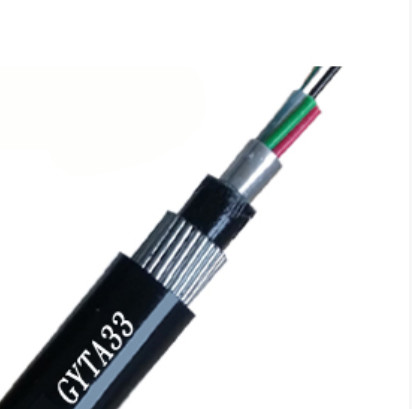

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33 2



Related-products: GYTA53

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33 3





Fiber Cable & Fiber Accessories

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33 4



Packing

1/2/3/4km or customized length export wooden drum



Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33 5

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33 6



1. Factory Directly Supply Price.

2. Life Time Warranty:More 25years

3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.

4. 100% test before shipping.

5.OEM/ODM is available.

6. Professional manufacturer. Welcome to visit our factory!
