Product Description
48 Core GYTS G652D Single Mode Outdoor Armoured Fiber Optic Cable
Specification
MODEL: GYTS-48B1.3
Fiber: SM G652D
Armoured: Steel Tape
Jacket Diameter: 9mm
Jacket Material: HDPE
Cable Length: 4Km/Drum
Simple Specification:
Test Wavelength: 1310/1550nm
at 1310nm: ≤0.35dB
at 1550nm: ≤0.23dB
Optical Characteristics:
| |
|
G.652D |
50/125μm |
62.5/125μm |
| Attenuation (+20℃) |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
| @1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
| @1310nm |
≤0.36dB/km |
|
|
| @1550nm |
≤0.22dB/km |
|
|
| Bandwidth(Class A) |
@850nm |
|
≥500MHz·km |
≥200MHz·km |
| @1300nm |
|
≥1000MHz·km |
≥600MHz·km |
| Numerical Aperture |
|
0.200±0.015NA |
0.275±0.15NA |
| Cable Cut-off Wave length |
≤1260nm |
|
Single mode and Multi mode,Up to 288cores Welcome to your Inquiry!
Operation Temperature: -20℃ to +60℃
Other Models Available(Single/Double Jacket)2F, 4F, 8F, 12F, 24F, 48F, 72F, 96F, 128F, 144F.
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.

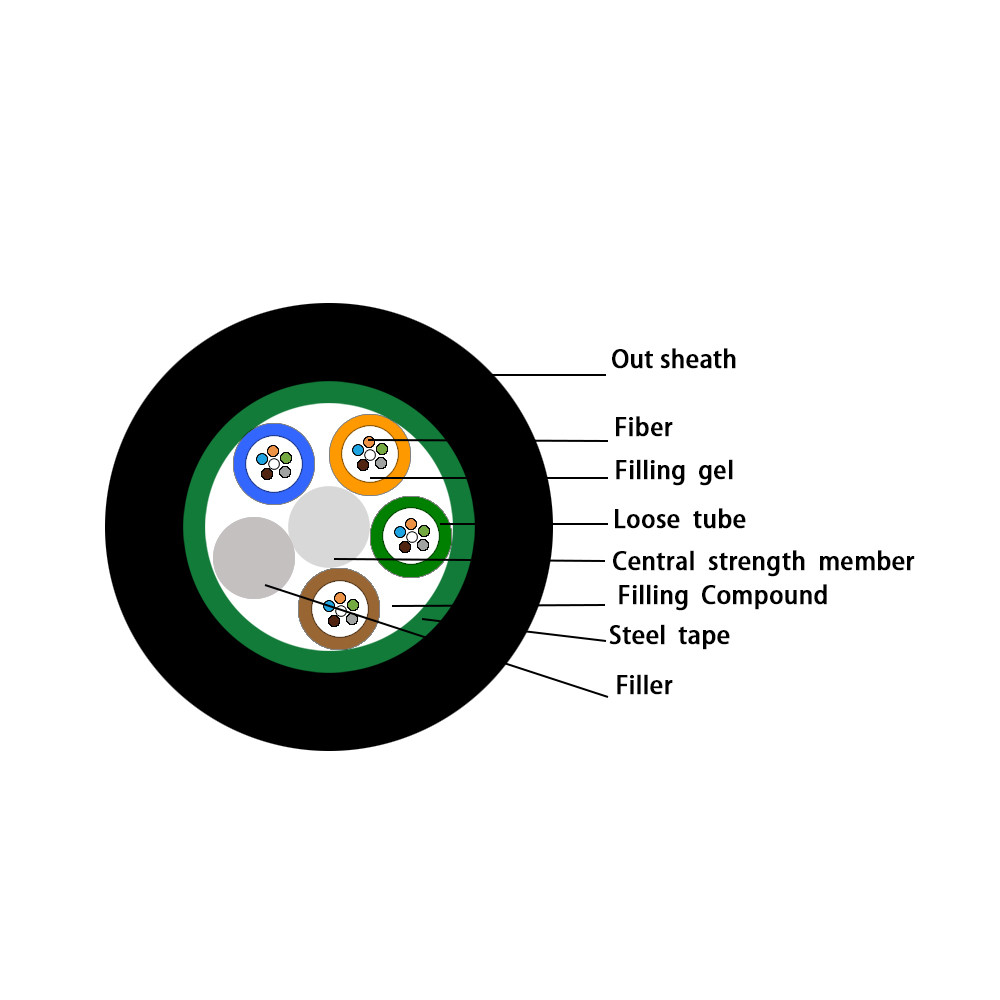

The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
The loose tube is filled with a special waterproof compound.

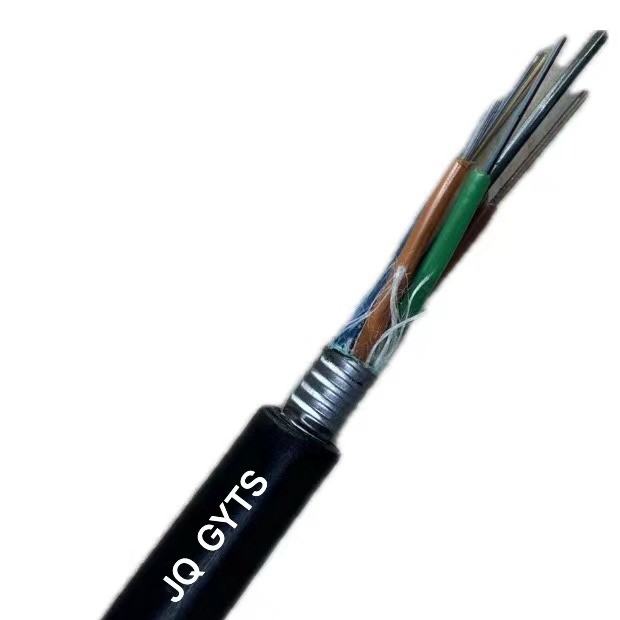

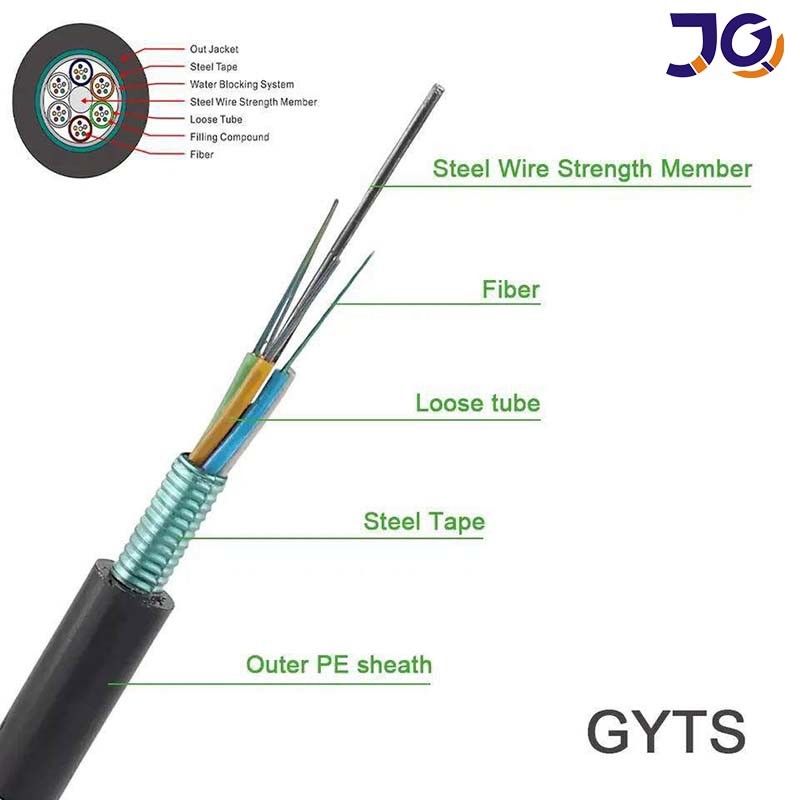

Cable Picture
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
Fiber
Count |
Diameter
(MI) |
Weight
(KG/KMI) |
Min.Bend Radius |
Mlin.Tension
(N) |
Crush
(N/100MMl) |
| Static |
Dynamic |
Long Term |
Short Term |
Long Term |
Short Term |
| 2-30 |
9.8 |
95 |
10
Times
of
Diameter
|
20
Times
of
Diameter
|
1500 |
600 |
1000 |
300 |
| 32-36 |
10.3 |
115 |
1500 |
600 |
1000 |
300 |
| 38-60 |
10.7 |
115 |
1500 |
600 |
1000 |
300 |
| 62-72 |
11.3 |
140 |
1500 |
600 |
1000 |
300 |
| 74-96 |
12.9 |
175 |
1500 |
600 |
1000 |
300 |
| 98-120 |
14.4 |
210 |
1500 |
600 |
1000 |
300 |
| 122-144 |
15.8 |
245 |
1500 |
600 |
1000 |
300 |
| 146-216 |
16.3 |
260 |
1500 |
600 |
1000 |
300 |
| 218-240 |
19.5 |
345 |
1500 |
600 |
1000 |
300 |
| 242-288 |
21.7 |
415 |
1500 |
600 |
1000 |
300 |
Application
Suitable for external application in duct and aerial
Packing & Delivery

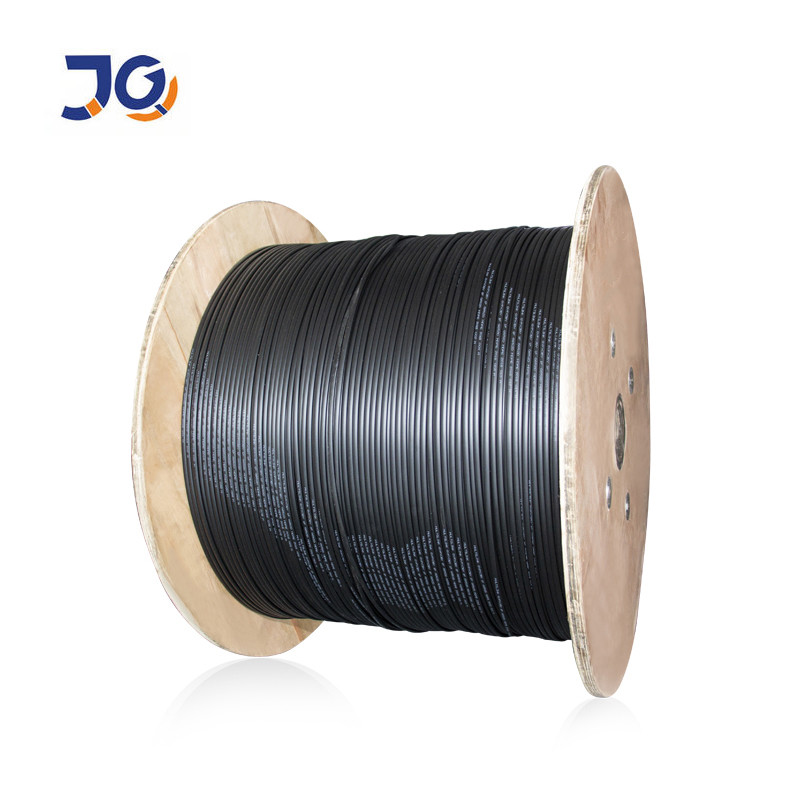

1KM 2KM 3KM 4KM 5KM In one wooden drum, other lengths can be customized
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at +86 18122384553 to get free sample.
