Underground Submarine Optical Fiber Cable GYTA33 Underwater Stranded Armoured Loose Tube Fiber Optic Cable

Contact Now

Underground Submarine Optical Fiber Cable GYTA33 Underwater Stranded Armoured Loose Tube Fiber Optic Cable

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou,China	Brand Name:	JQ/OEM
Certification:	ISO9001 ROHS CE FCC SDOC	Model Number:	GYTA33

Detail Information
Fiber Type:	G652D/G657A1	Color:	Black
Jacket:	PE	Fiber Count:	4-72cores
Product Name:	Stranded Loose Tube Armored Cable	Length:	2km Or Customized Length
Installation:	Aerial & Duct	Oem:	Available
Application:	Underground Buired	Name:	Underground Directly Buried Armored Cable
Cable Type:	Double Jacket Double Armored	Armored:	Aluminun Tape+Steel Wire
Highlight:	Underground Stranded Armoured Fiber Optic Cable , Loose Tube Underground Fiber Optic Cable , GYTA33 Underground Fiber Optic Cable

Product Description

Submarine Optical Fiber Cable GYTA33

GYTA33 optical fiber cable is full cross-section water-blocking structure to ensure good water blocking and moisture resistance. Loose tube is filled with special ointment for a key protection of fiber. The phosphate wire center stiffening member is of high modulus and corrosion resistance. Double-sided vertically-clad laminated corrugated aluminum tape with thin round steel wire armor ensures the mechanical resistance to compression, tensile, and ballistic performance, and meets the application requirements of climbing direct burial and underwater laying.

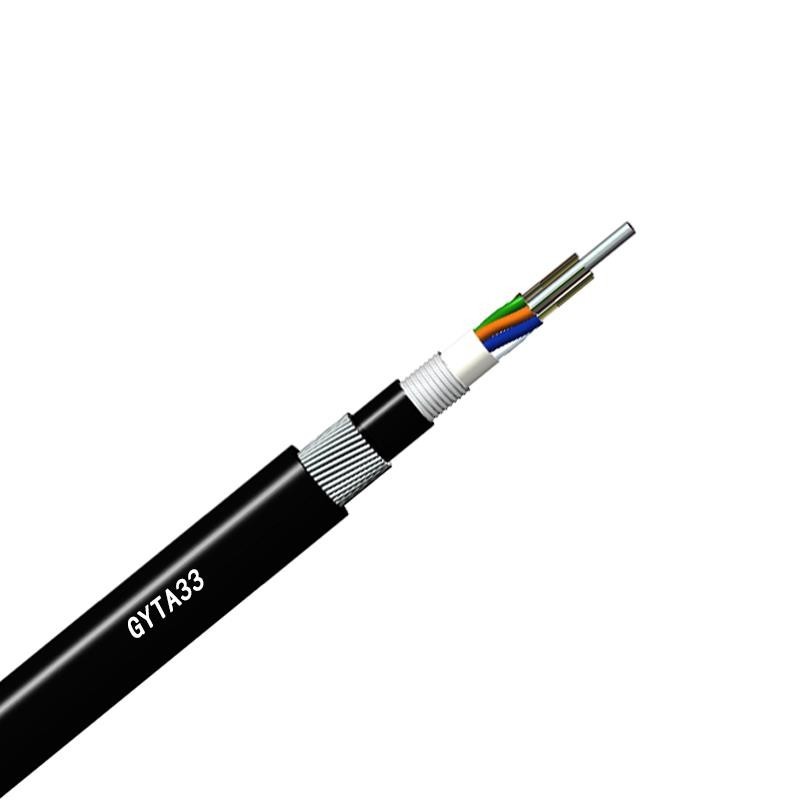

Product Construction

Underground Submarine Optical Fiber Cable GYTA33 Underwater Stranded Armoured Loose Tube Fiber Optic Cable 0

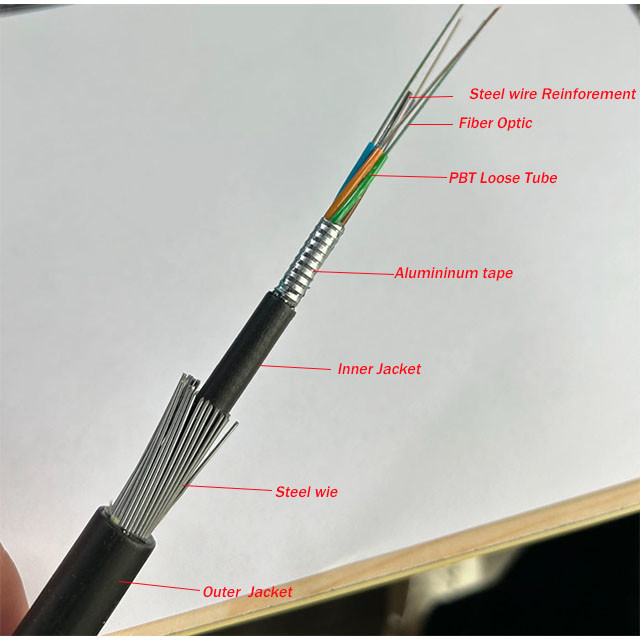

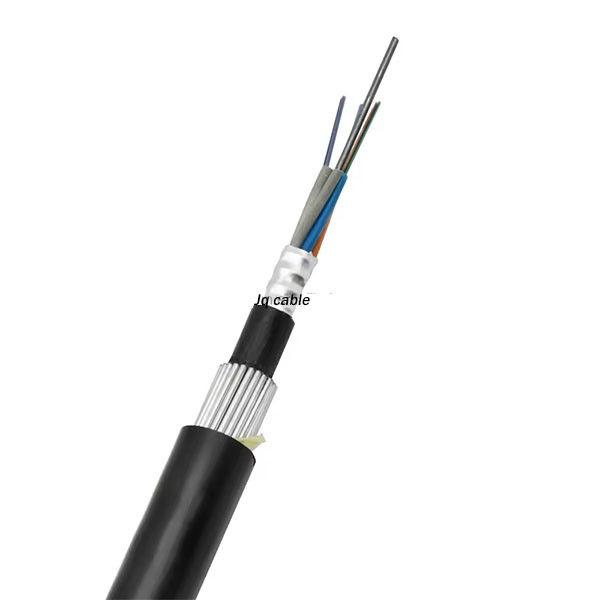

Cable Picture

Underground Submarine Optical Fiber Cable GYTA33 Underwater Stranded Armoured Loose Tube Fiber Optic Cable 1

Underground Submarine Optical Fiber Cable GYTA33 Underwater Stranded Armoured Loose Tube Fiber Optic Cable 2

Application

Suitable for directly buired laying or Underwater method

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

item	value
Model Number	GYTA33
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	steel wire
Armoured	Al tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Aluminum Tape armor
Color	Black or as your need
Application	Direct burial, underground,sea
Certification	CE/ROHS/ISO9001 /ANATEL

Note : This datasheet can only be a reference, but not a supplement to the contract.

Please contact our sales people for more detailed information

Related-products: GYTA53

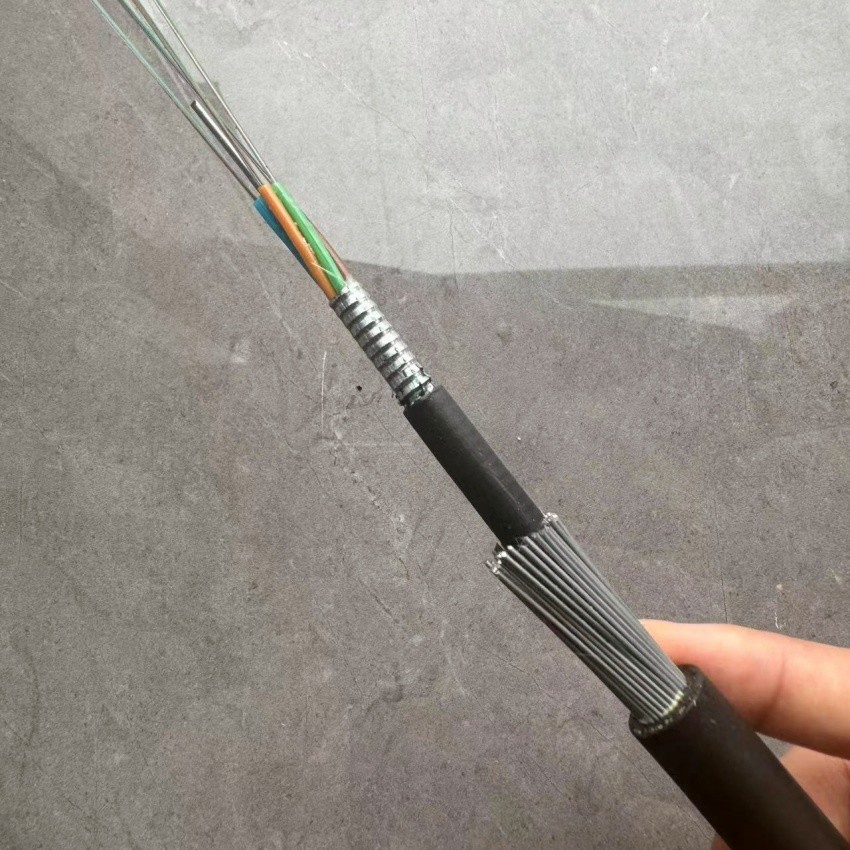

Underground Submarine Optical Fiber Cable GYTA33 Underwater Stranded Armoured Loose Tube Fiber Optic Cable 3

Packing

1/2/3/4km or customized length export wooden drum

professional, environmentally friendly, convenient and efficient packaging services will be provided.

Underground Submarine Optical Fiber Cable GYTA33 Underwater Stranded Armoured Loose Tube Fiber Optic Cable 2

Underground Submarine Optical Fiber Cable GYTA33 Underwater Stranded Armoured Loose Tube Fiber Optic Cable 5

1. Factory Directly Supply Price.

2. Life Time Warranty:More 25years

3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.

4. 100% test before shipping.

5. OEM/ODM is available.

6. Professional manufacturer. Welcome to visit our factory!

We Support OEM and Customize products.

Welcome to your inquiry! Welcome to visit our facotry!

Contact me at +86 18122384553 to get free sample.
