Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | 1/2/3/4/5 km in one wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5dyas | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000 Per day |
| Place of Origin: | Guangzhou China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GYXTW |
|
Detail Information |
|||
| Jacket Material: | PE | Outer Diameter: | 6/7/8/9mm |
|---|---|---|---|
| Steel Wire: | 1.0mm | Color: | Black |
| Fiber Count: | 2/4/6/8/12/24 Core | Structure: | Unit Tube |
| Strength Member: | Two Steel Wire | Installation: | Aerial &Duct |
| Product Name: | Outdoor Optic Fiber Cable | Fiber Type: | YOFC Or As Request |
| Oem: | Available | ||
| High Light: | 1MM Outdoor Fiber Optic Cable,24 Core Outdoor Fiber Optic Cable,GYXTW Outdoor Fiber Optic Cable |
||
Product Description
1MM Steel Wire strength 2 4 8 12 24 Core Outdoor Fiber Optic Cable GYXTW
Product description
Single mode G652D 2/3/4/6/8/10//12/24 Core Fiber Optic Cable GYXTW
|
Fiber Numbers
|
4-24 fibers
|
|
Metal reinforcing members
|
Parallel steel wire
|
|
Cable OD
|
8.0mm
|
|
Application
|
Overhead laying
|
|
Structural features
|
Center tube
Unit loose tube cables
|
|
Recommended index
|
5 stars
|
Cable Structure

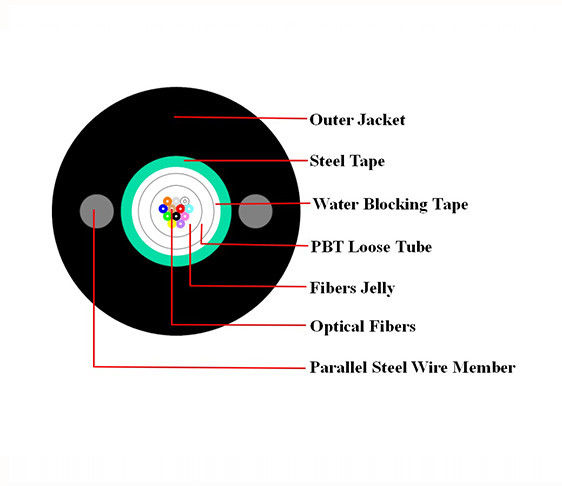

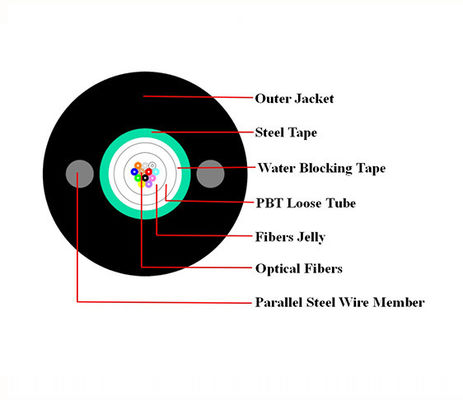

Cable Section

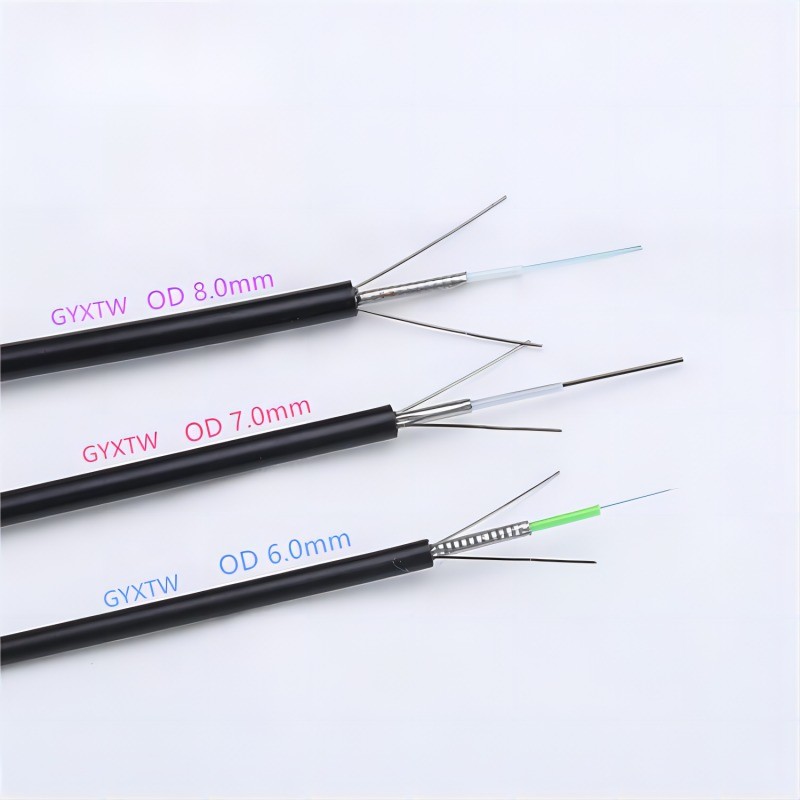

Cable Diameter
Fiber Parameter
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Cable Performance
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White | |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Technical Parameters
| Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic |
| 2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |
Application: Suitable for Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃

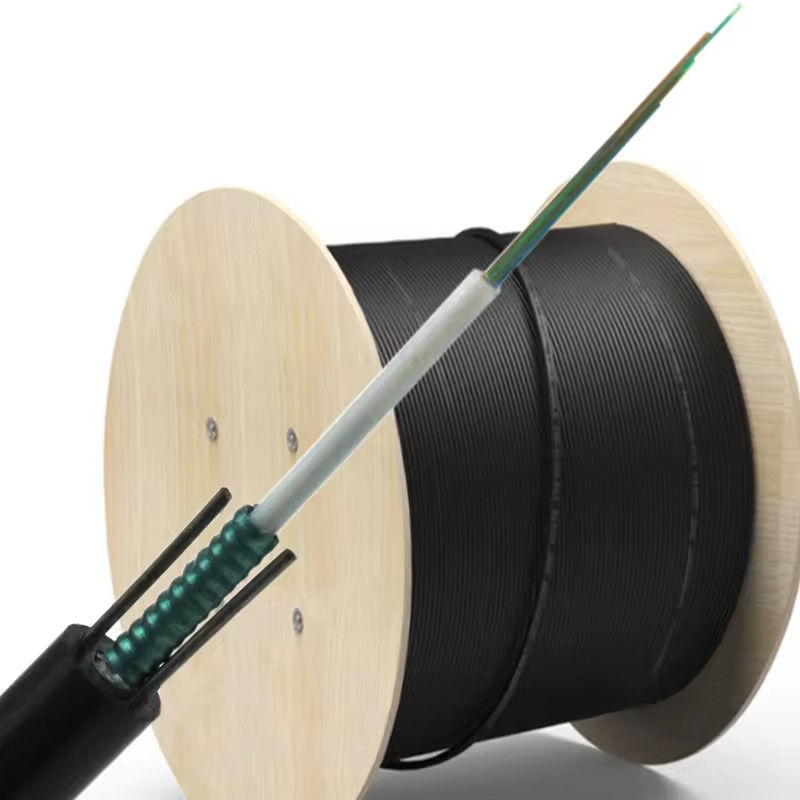

Packing detail: 1/2/3/4/5 km in one wooden drum
Company Profile
Guangzhou jiqian fiber optic cable Co.,ltd
Contact me at +86 18122384553 to get free sample.
