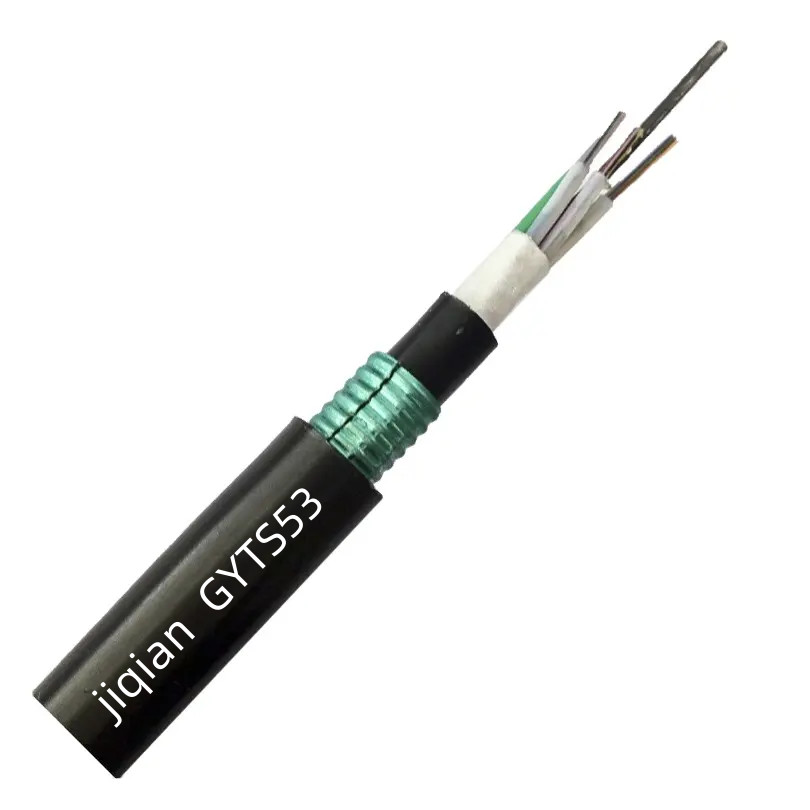

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable

1km
MOQ
Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D
Color: Black
Jacket: PE,MDPE
Fiber Count: 4-144cores
Product Name: Stranded Loose Tube Armored Cable
Length: 2km Or Customized Length
Installation: Aerial & Duct
Oem: Available
Application: Telecommunication
Type: Singlemode &Multimode
Name: Outdoor Armor Fiber Optic Cable
Highlight:

GYTS53 Fiber Optic Cable

,

Double Sheath Fiber Optic Cable

,

Underground Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYTA53/GYTS53
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable



Cable Performance

Product name
GYTS53
Color
BLACK/customization
Fiber Type
Single/Multi mode optical fiber
Conductor Material
optical fiber
Jacket Material
PE/LSZH/PVC/Nylon
Length
2/3 kilometers
Color
BLACK/customization
Application
Communication cable
Usage
Communication security cable
Core
4~144

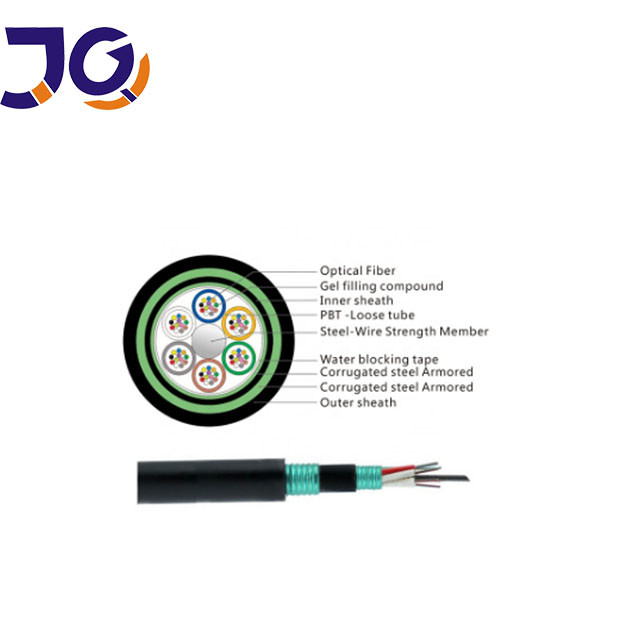

Cable Structure

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable 0

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable 1

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable 2



Application

Suitable for directly buired laying method

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable 3

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable 4

High quality long distance transmission fiber Steel Tape Armored

and Water-Resistant Brand NEW PE or HDPE cable sheath







Fiber Parameter

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22



Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable 5


Note : This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information




Packing & Delivery



1/2/3/4km or customized length export wooden drum

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable 6



Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable 7

Test report and certification enclosed on each drum

OEM Services

Outside package customize

Logo printing for Free

Contact me at +86 18122384553 to get free sample.
