GYFTY33 Fiber Optic Cable For Laying In Ground Laying Projects

Product Description

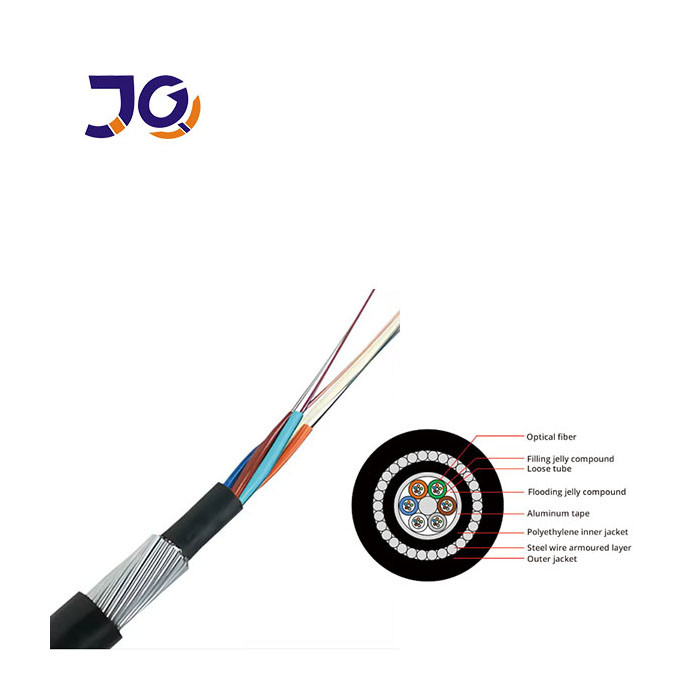

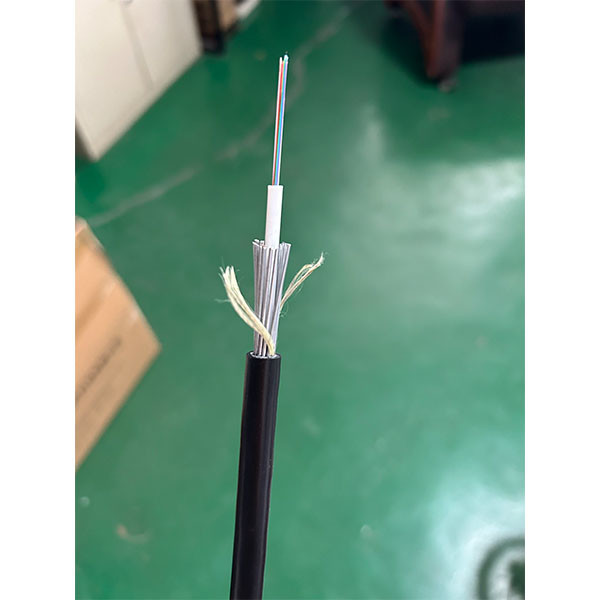

GYFTY33 Armored double jacket fiber optic cable is an outdoor fiber optic cable designed for direct burial and under-water applications

Fiber Parameters:



Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.35
	1550nm	dB/km	≤0.21
Proof stress level		kpsi	≥100



Lead time:Usually 7days,it depends on order quantity

Shipping methods:by sea LCL/FCL,It depends on order quantity

Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 13 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America,Mideast and Southeast Asia.Africa etc

PppPrinting:

Cable Printing:



Exhibition



Certification:





FAQ:



1.Are you the real manufacturer?
Yes. We are the real manufacturer with 13 years history.

2.What is your fiber brand ?
YOFC/Fiberhome

3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days,it depends on order quantity

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
