Home ProductsUnderground Fiber Optic CableSingle Mode 48Core GYTS GYFTS Optical Cable Black Jacket 1550nm Length
Single Mode 48Core GYTS GYFTS Optical Cable Black Jacket 1550nm Length
Single Mode 48Core GYTS GYFTS Optical Cable Black Jacket 1550nm Length Single Mode 48Core GYTS GYFTS Optical Cable Black Jacket 1550nm Length Single Mode 48Core GYTS GYFTS Optical Cable Black Jacket 1550nm Length Single Mode 48Core GYTS GYFTS Optical Cable Black Jacket 1550nm Length
Contact Now

Single Mode 48Core GYTS GYFTS Optical Cable Black Jacket 1550nm Length

Minimum Order Quantity : 1KM Packaging Details : 2KM/ROLL
Delivery Time : 3DAYS Payment Terms : T/T LC
Place of Origin: Guangzhou Brand Name: JQ
Certification: ISO9001 Model Number: 48Core

Detail Information
Oem: Yes Laying Mode: Duct Aerial
Cable Type: Single-mode Jacket Material: HDPE
Jacket Color: Black Wave Length: 1310nm/1550nm
Fiber Brand: YOFC Strength Member: Steel Wire,FRP
Highlight:

Single Mode Optical Cable

,

48Core Single Mode Optical Cable

,

GYTS Single Mode Optical Cable

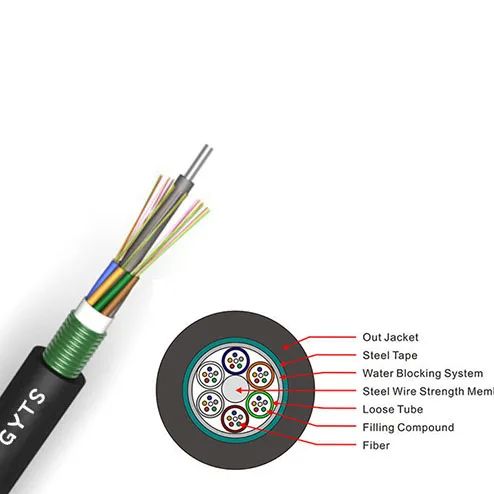

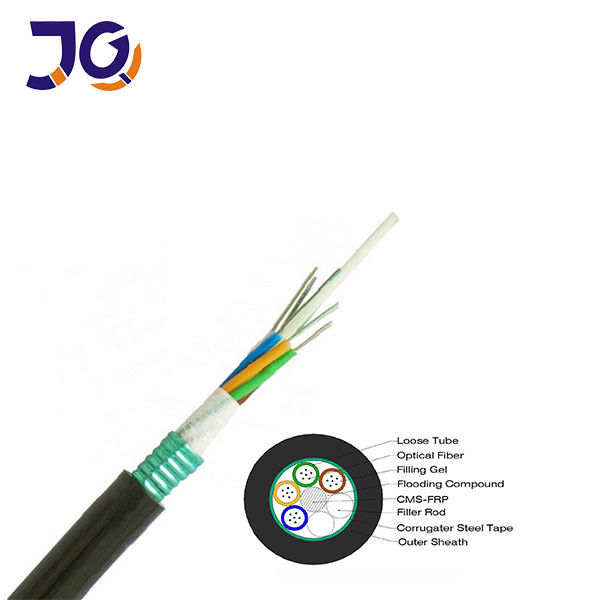

Product Description

Product Description

Model Number
GYTS-48B1.3
Fiber Count
48





Loose tube
Number
4
Fiber counts per tube
12
Dimension
2.0mm±0.1mm
Material
PBT
Filling
Thixotropic jelly
Color
Blue,Orange,Green,Brown


Central Strength Member
Material
FRP+HDPE
Color
black
PE layer
Diameter(mm) Approx.

5.2mm
Strength Member
Glass yarn
cable assembly
Water-blocking yarn and Water-blocking tape
Armouring
Corrugated ECCS Tape


Outer Jacket
Dimension
9 ± 0.3mm
Material
PE
Color
black
Application

Overhead
Underground Duct laying
Package
3km
Plywood drum
Place of Origin
Guangzhou
China
Single Mode 48Core GYTS GYFTS Optical Cable Black Jacket 1550nm Length 0

Applications:

GYTS,GYFTS fiber optic cable is used for duct or aerial applications.



Support and Services

Fiber count
Structure
Fibers per tube
Loose tube diameter
(mm)
CSM diameter/pad diameter
(mm)
Nominal Thickness of outer jacket
(mm)
Cable diameter
(mm)
Cable weight
(kg/km)
4
1+5
4
1.8±0.1
1.4/1.4
1.4
9.0±0.3
80
6
1+5
6
1.9±0.1
1.4/1.4
1.4
9.0±0.3
80
8
1+5
8
1.9±0.1
1.4/1.4
1.4
9.0±0.3
80
12
1+5
6
1.9±0.1
1.4/1.4
1.4
9.0±0.3
80
24
1+5
6
1.9±0.1
1.4/1.4
1.4
9.0±0.3
85
36
1+6
12
2.2±0.1
1.6/1.6
1.6
9.0±0.3
100
48
1+5
12
2.2±0.1
1.6/1.6
1.6
9.0±0.3
105
60
1+5
12
2.2±0.1
1.6/1.6
1.6
9.7±0.3
110
72
1+6
12
2.2±0.1
2.0/2.0
1.6
10.6±0.3
122
96
1+8
12
2.2±0.1
1.6/3.5
1.6
12.0±0.3
160
144
1+12
12
2.2±0.1
2.0/6.4
1.8
15.6±0.3
240
216
1+6+12
12
2.2±0.1
2.2/2.2
1.8
16.0±0.3
270
288
1+9+15
12
2.2±0.1
2.2/4.3
2.0
18.2±0.3
282





Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity

Single Mode 48Core GYTS GYFTS Optical Cable Black Jacket 1550nm Length 1
