Underground 48 Cores 96 Cores 144 Cores 288 Core Fiber Optic Cable

1KM
MOQ
Underground 48 Cores 96 Cores 144 Cores 288 Core Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket: Black Double Jacket
Cable Type: Single-mode
Wave Length: 1310nm/1550nm
Model Numer: GYTA/GYTA53/GYTS/GYTS53
Jacket Color: Black
Packing: 2km/Wooden Drum
Sample: Acceptable
Manufacturer: Yes
Highlight:

144 cores Underground Fiber Optic Cable

,

96 cores Underground Fiber Optic Cable

,

288 core Underground Fiber Optic Cable

Basic Infomation
Place of Origin: Guangzhou
Brand Name: JQ
Certification: ISO9001
Model Number: 48Core
Payment & Shipping Terms
Packaging Details: 2KM/ROLL
Delivery Time: 3DAYS
Payment Terms: T/T LC
Product Description

Product Description



Underground 48 Cores 96 Cores 144 Cores 288 Core Fiber Optic Cable 0

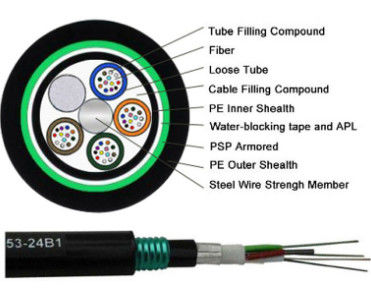

Characteristics
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·The following measures are taken to ensure the cable watertight:
-Single Fiber Reinforced Plastic as the central strength member
-Loose tube filling compound
-100% cable core filling
-PSP enhancing moisture-proof
-Water-blocking material





Optical Characteristics:

    G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0dB/km ≤3.0dB/km
@1300nm   ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Bandwidth(Class A) @850nm   ≥500MHz·km ≥200MHz·km
@1300nm   ≥1000MHz·km ≥600MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.15NA
Cable Cut-off Wave length ≤1260nm





Standards:

GYTY53 cable complies with Standard YD/T 901-2001 as well as IEC 60794-1

Support and Services:

Our Underground Fiber Optic Cable product comes with comprehensive technical support and services to ensure optimal performance and reliability.

Our team of experienced technicians is available to provide installation guidance, troubleshooting assistance, and maintenance support throughout the product life cycle.

We also offer training programs to help your team become proficient in handling and maintaining the product, as well as customized solutions to meet specific project needs.

Our goal is to ensure that our customers have uninterrupted and efficient access to their data through our high-quality Underground Fiber Optic Cable product.



Packing and Shipping:

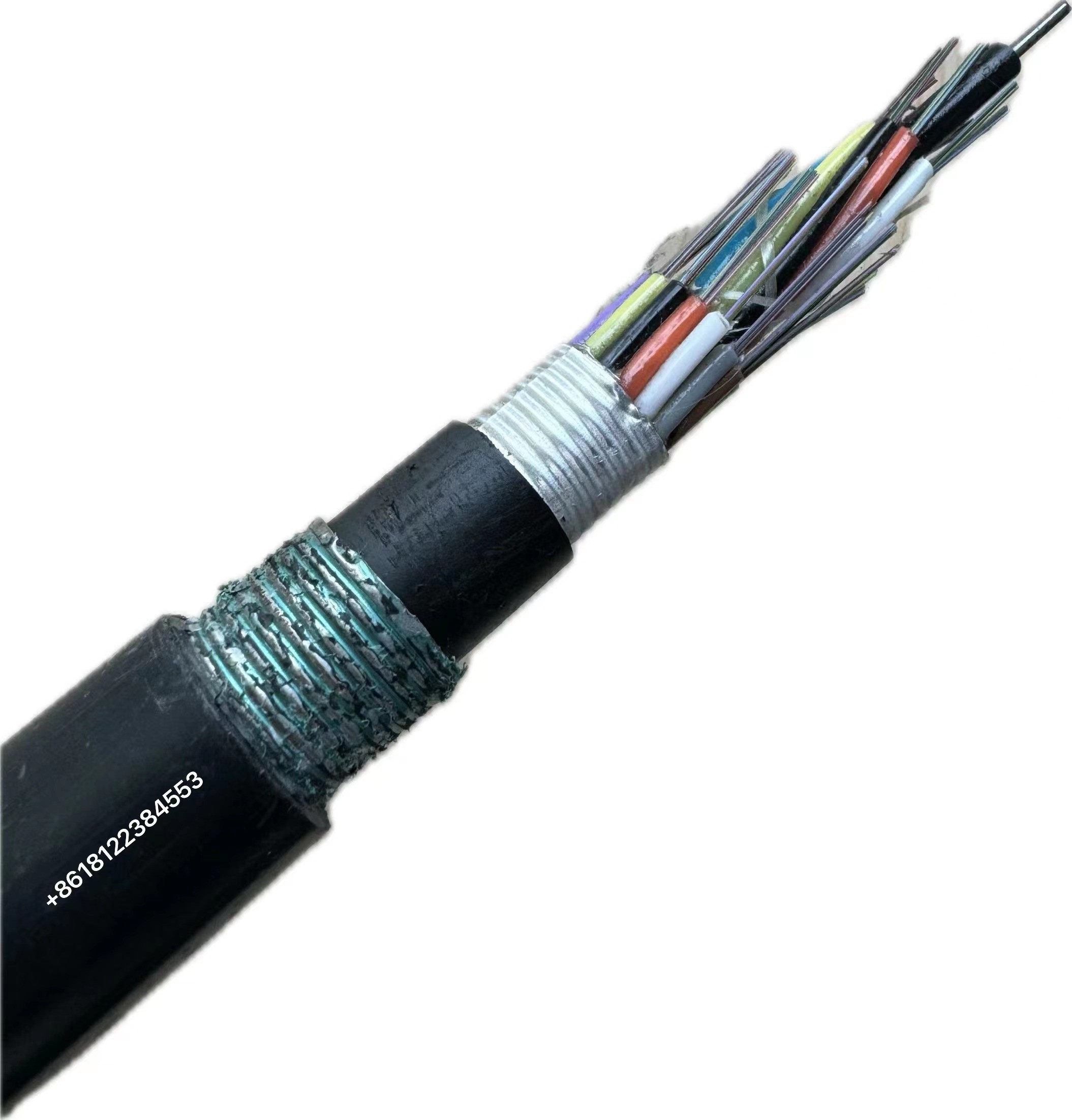

Underground 48 Cores 96 Cores 144 Cores 288 Core Fiber Optic Cable 1

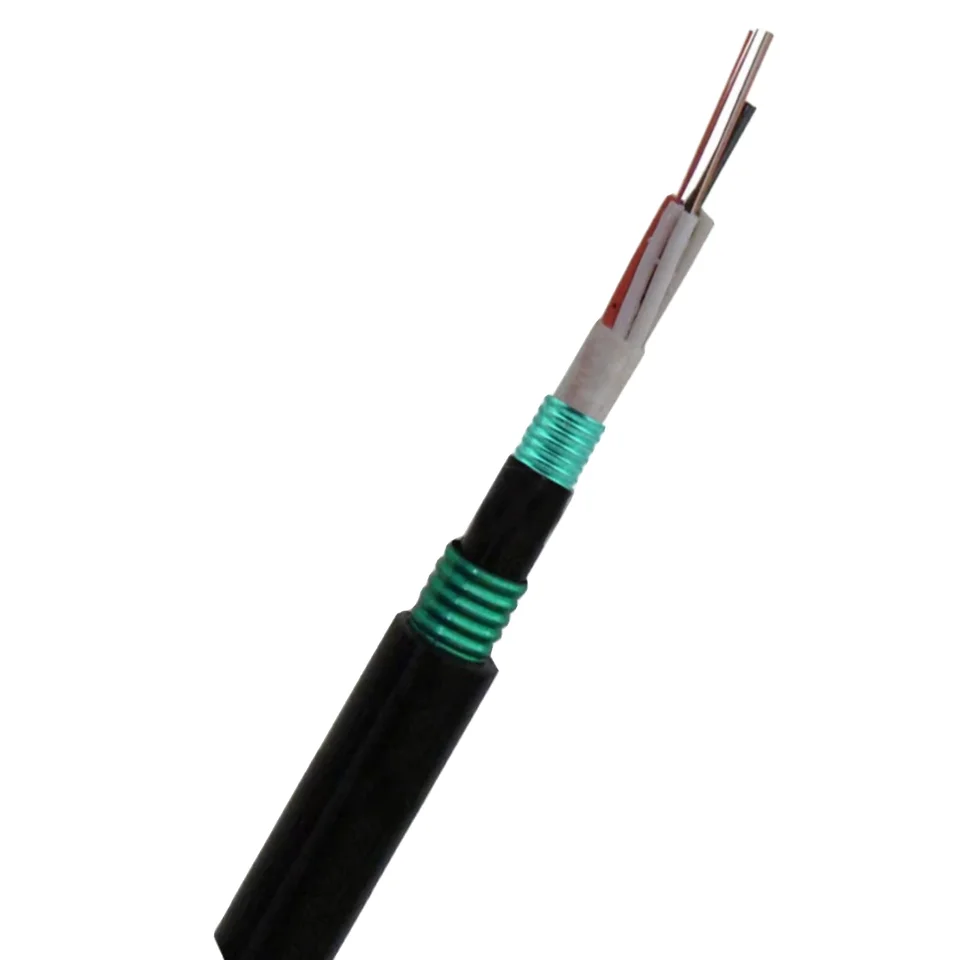

Underground 48 Cores 96 Cores 144 Cores 288 Core Fiber Optic Cable 2
