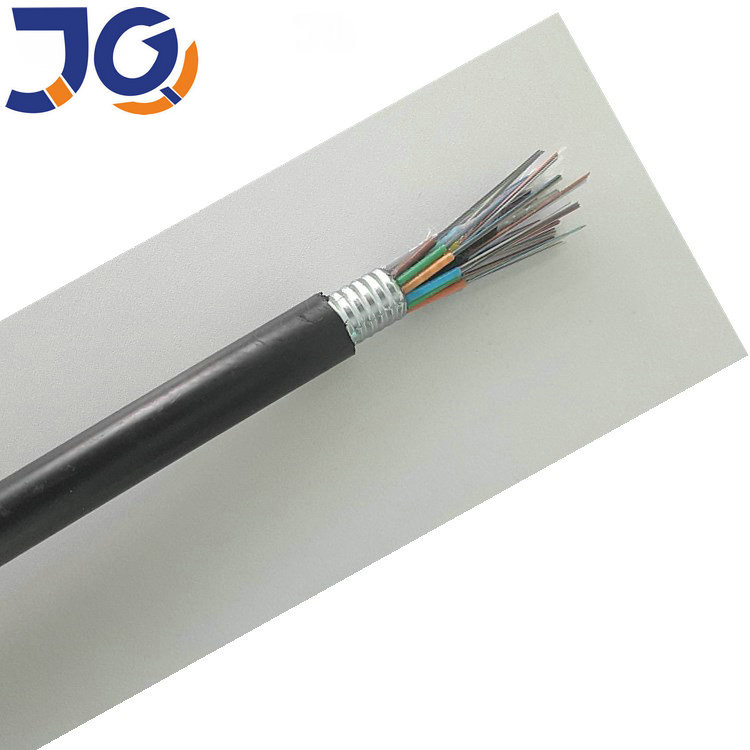

OEM Single Mode 12 24 48 Core GYTS GYFTS Armoured Fiber Optic Cable

1KM
MOQ
OEM Single Mode 12 24 48 Core GYTS GYFTS Armoured Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Oem: Yes
Laying Mode: Duct Aerial
Cable Type: Single-mode
Jacket Material: HDPE
Jacket Color: Black
Wave Length: 1310nm/1550nm
Fiber Brand: YOFC
Strength Member: Steel Wire,FRP
Highlight:

GYTS GYFTS Armoured Fiber Optic Cable

,

OEM Armoured Fiber Optic Cable

Basic Infomation
Place of Origin: Guangzhou
Brand Name: JQ
Certification: ISO9001
Model Number: 48Core
Payment & Shipping Terms
Packaging Details: 2KM/ROLL
Delivery Time: 3DAYS
Payment Terms: T/T LC
Product Description

Product Description

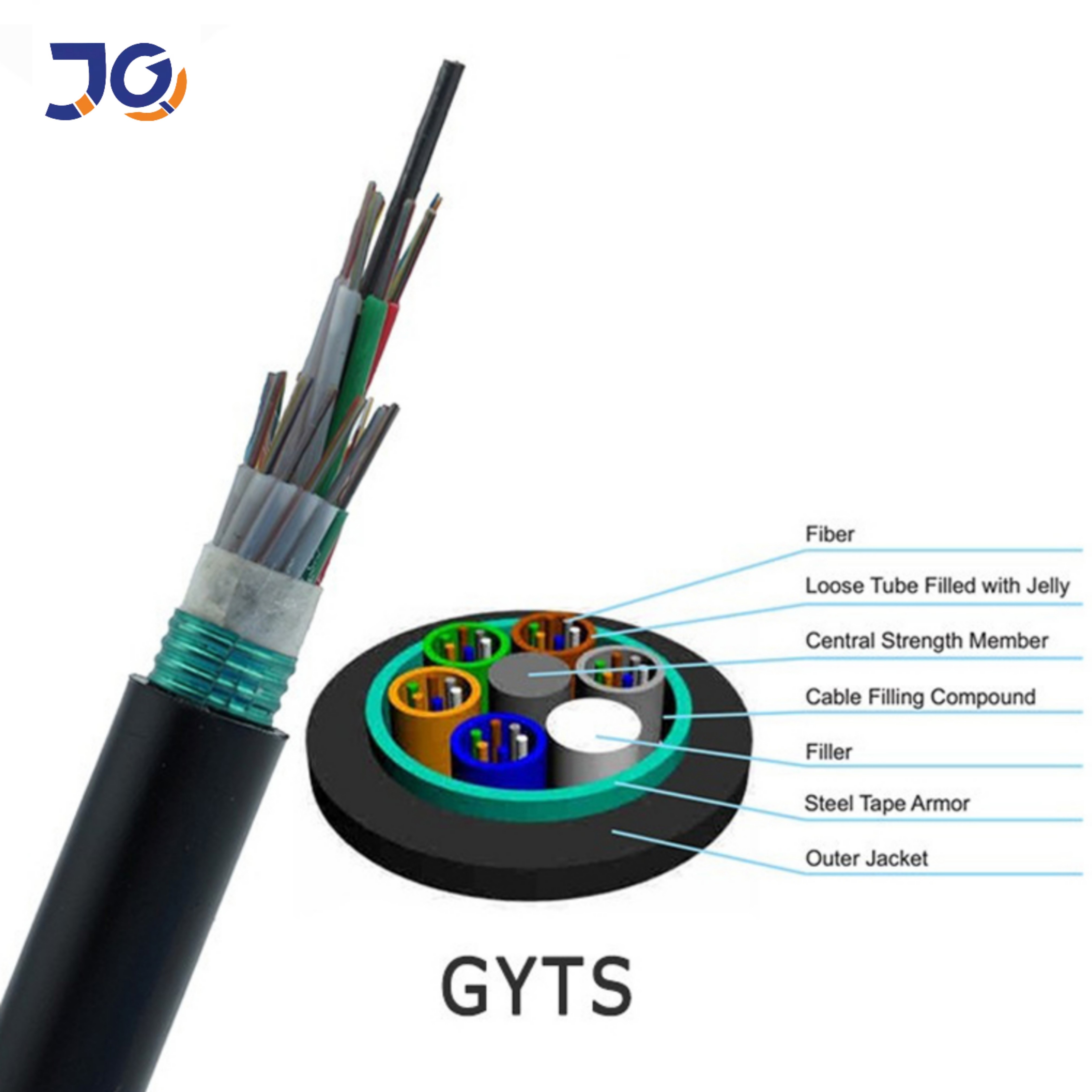

Model Number
GYTS-48B1.3
Fiber Count
48





Loose tube
Number
4
Fiber counts per tube
12
Dimension
2.0mm±0.1mm
Material
PBT
Filling
Thixotropic jelly
Color
Blue,Orange,Green,Brown


Central Strength Member
Material
FRP+HDPE
Color
black
PE layer
Diameter(mm) Approx.

5.2mm
Strength Member
Glass yarn
cable assembly
Water-blocking yarn and Water-blocking tape
Armouring
Corrugated ECCS Tape


Outer Jacket
Dimension
9 ± 0.3mm
Material
PE
Color
black
Application

Overhead
Underground Duct laying
Package
3km
Plywood drum
Place of Origin
Guangzhou
China
OEM Single Mode 12 24 48 Core GYTS GYFTS Armoured Fiber Optic Cable 0

Applications:

GYTS,GYFTS fiber optic cable is used for duct or aerial applications.



Support and Services

Fiber count
Structure
Fibers per tube
Loose tube diameter
(mm)
CSM diameter/pad diameter
(mm)
Nominal Thickness of outer jacket
(mm)
Cable diameter
(mm)
Cable weight
(kg/km)
4
1+5
4
1.8±0.1
1.4/1.4
1.4
9.0±0.3
80
6
1+5
6
1.9±0.1
1.4/1.4
1.4
9.0±0.3
80
8
1+5
8
1.9±0.1
1.4/1.4
1.4
9.0±0.3
80
12
1+5
6
1.9±0.1
1.4/1.4
1.4
9.0±0.3
80
24
1+5
6
1.9±0.1
1.4/1.4
1.4
9.0±0.3
85
36
1+6
12
2.2±0.1
1.6/1.6
1.6
9.0±0.3
100
48
1+5
12
2.2±0.1
1.6/1.6
1.6
9.0±0.3
105
60
1+5
12
2.2±0.1
1.6/1.6
1.6
9.7±0.3
110
72
1+6
12
2.2±0.1
2.0/2.0
1.6
10.6±0.3
122
96
1+8
12
2.2±0.1
1.6/3.5
1.6
12.0±0.3
160
144
1+12
12
2.2±0.1
2.0/6.4
1.8
15.6±0.3
240
216
1+6+12
12
2.2±0.1
2.2/2.2
1.8
16.0±0.3
270
288
1+9+15
12
2.2±0.1
2.2/4.3
2.0
18.2±0.3
282

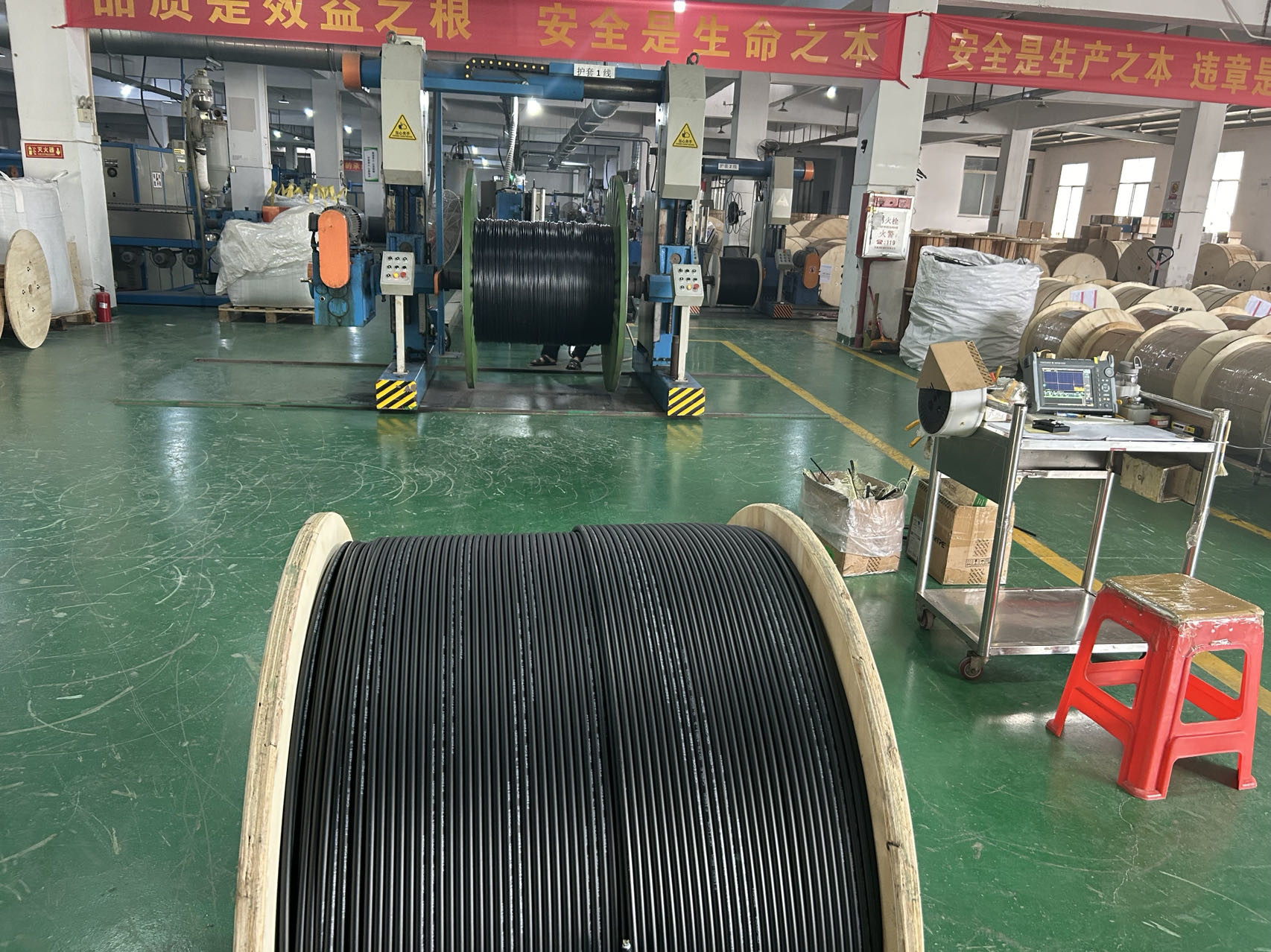

Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
