4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fiber Optic Cable

Minimum Order Quantity : 10km Price : base on fiber specifications
Packaging Details : Wooden reel Delivery Time : about 11 working days
Payment Terms : T/T, Western Union,Alipay Supply Ability : 1000KM per day
Place of Origin: China guangdong Brand Name: JQ
Certification: ISO9001 CE ROHS FCC Model Number: ADSS-4/12/24F

Detail Information

Application: Overhead/aerail Fiber Counts: 4/8/12/24F
Span: 80/100/120M Fiber Per Tube: 4/6/8/12F
OEM: Avalible Strength Number: FRP
Structure: Unit Loose Tube Jacket Color: Black/red
Operating Temperature: -40℃ To +60℃ Sample: Avaliable
Highlight:

12 cores ADSS fiber optic cable

,

8 cores ADSS fiber optic cable

,

24 cores ADSS fiber optic cable

Product Description



ASU mini -ADSS fiber optic cable



destricption



ASU fiber optic cable, also known as mini ADSS fiber optic cable, is an outdoor overhead self-supporting dielectric cable that contains one loose tube which is filled with up to 24 optical fibers( max to 24 optical fibers in total). The fibers are protected from moisture by jelly and hydro-expandable material inside the loose tube.

It is all dielectric which has two FRP strength member as a traction element, providing pull strength and avoiding electrical discharges between connections. It is much easier and ligher to handle and install compared to other outdoor cable, eliminating the need to use strings or grounding. It’s widely used in FTTH fiber to the home networking.



Features



  • 1. It is commonly in span of 80m or 120m with less weight.

  • 2. It is mainly used in the communication route of overhead high voltage transmission system, and can also be used in the communication line under the . environment such as lightning zone and long distance overhead line.

  • 3. It is 20% or more cheaper compared with standard ADSS fiber optic cable. ASU fiber optic cable can not only save the use of imported aramid yarn, but also reduce the manufacturing cost due to the reduction of the overall structure size.

  • 4. Great tensile strength and high/low temperature resistance

  • 5. Service life is expected over 30 years





Details picture shows

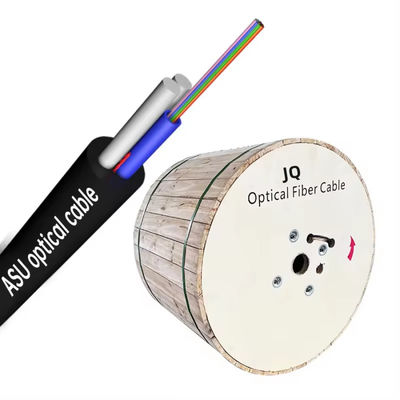

4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS  Fiber Optic Cable 0



                                                           mini adss ASU fiber cable

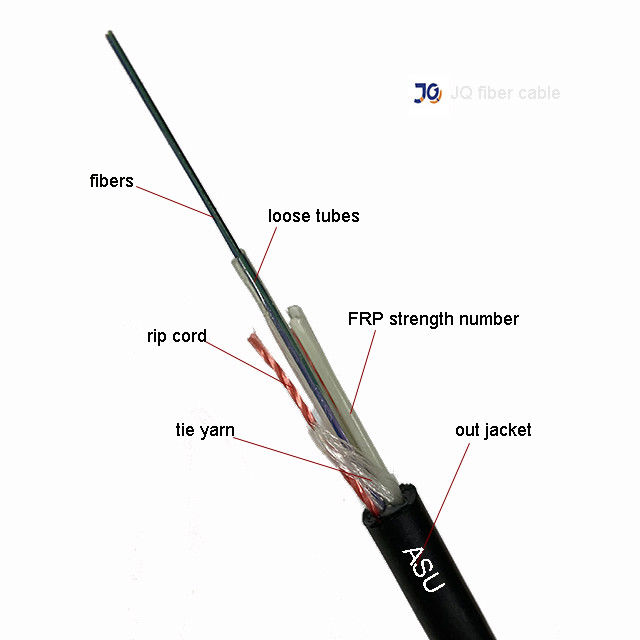

4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS  Fiber Optic Cable 1



                                                       ASU-mini ADSS fiber optic cable

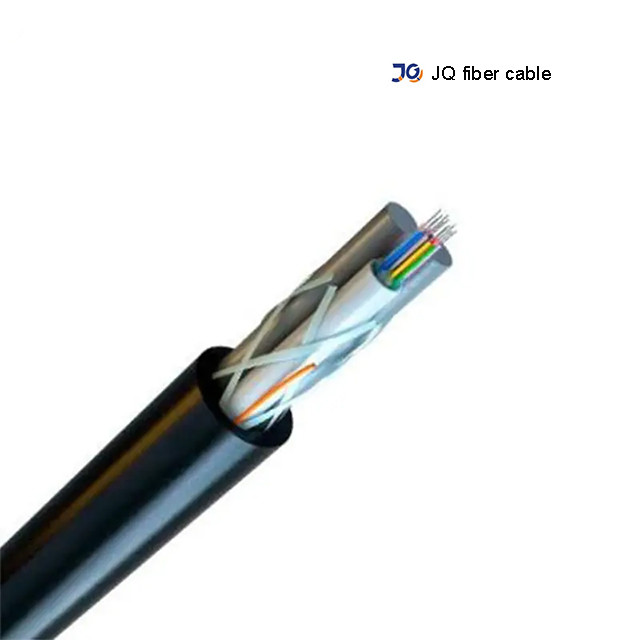

4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS  Fiber Optic Cable 2

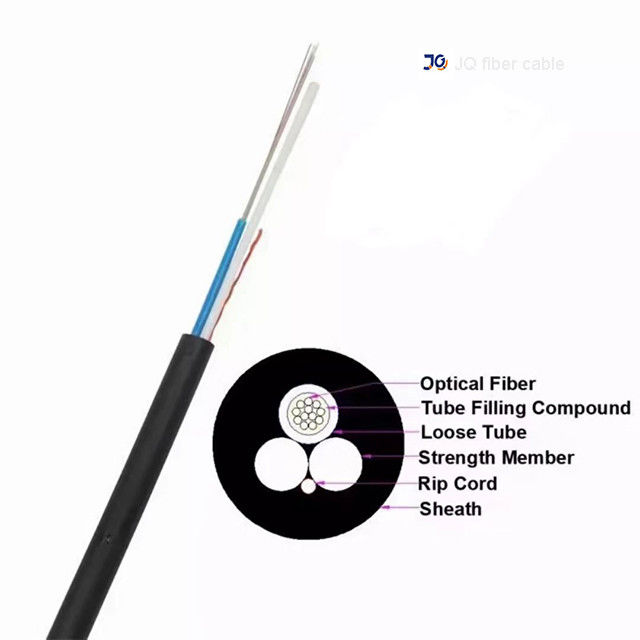

4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS  Fiber Optic Cable 3





Structure and Technical Specifications





fiber count structure fiber per tube

losse tube diameter

(MM)

FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)
PE Jacket
4 1+2 4 1.9 2.0/2.0 1.7±0.1 8.0±0.2 60
6 1+2 6 1.9 2.0/2.0 1.7±0.1 8.0±0.2 60
8 1+2 4 1.9 2.0/2.0 1.7±0.1 8.0±0.2 60
12 1+2 12 1.9 2.0/2.0 1.7±0.1 8.0±0.2 60
24 1+2 24 2.5 2.0/2.0 1.7±0.1 8.5±0.2 70



 Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

 pls contact our salers.







Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---

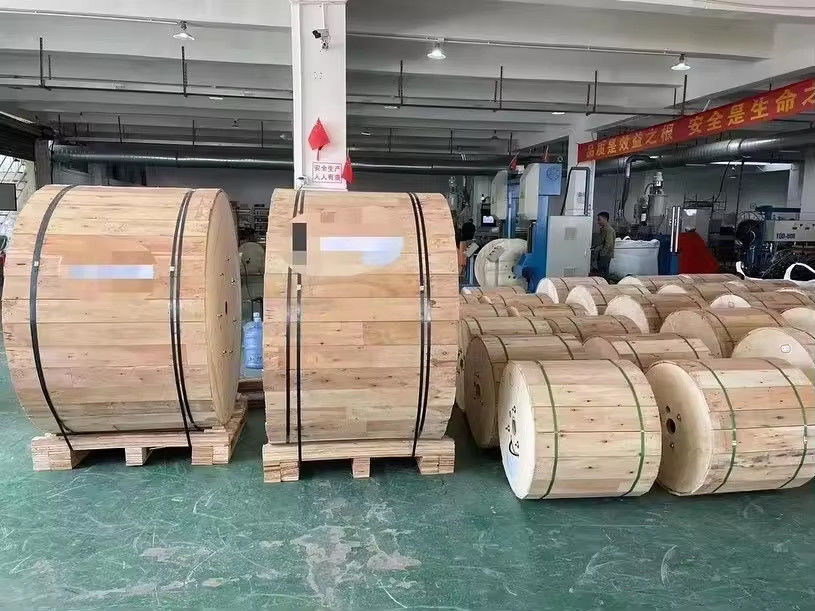

Packing:

4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS  Fiber Optic Cable 4



FAQ



1.  Q:Are you a factory or trade company?
A: We are a factory


2. Q:What is the MOQ?

A: The MOQ of Fiber Optic cable is 15km.



3. Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,CORNING ,etc



4. Q:Can you accept small order?
A: Yes, small order is available .We support new project of our customers as we know business is always from small order.


5. Q:What’s delivery time?
A: The general delivery time is 10 days after order confirmed. It depends on the order quantity.



6. Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.  what is your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
