GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network

1km
MOQ
Inquiry for price
Price
GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 4-144 Cores
Fiber Type: Single Mode/multi Mode
Jacket: PE/PVC/LSZH/HDPE/MDPE
Color: Black Or Orange Or Customized
Product Name: Air-blown Micro Cable
Structure: Micro Cable
Installation: Aerial Or Duct Pipe Laying
Number Of Conductors: ≥ 10
Highlight:

duct installation fiber optic cable

,

high density network fiber cable

,

air blown outdoor fiber cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GCYFY/GCYFTY
Payment & Shipping Terms
Packaging Details: wooden drum/customized
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 30km Per day
Product Description

GCYFY Air Blown Micro Fiber Optic Cable 24 48 96 Core for FTTH Micro Duct Network



Features

  • Loose tube stranded structure with non-metallic strength member

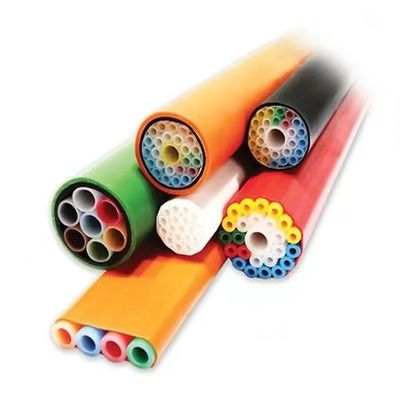

  • Designed for air blowing installation in micro ducts
  • Lightweight and compact for easy deployment
  • Improves duct utilization and reduces construction cost

Applications

  • FTTH feeder and drop network installation
  • Backbone and metropolitan area networks
  • Access network construction
  • Connection between distribution points and users





GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network 0







Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





Fiber & Tube Color


GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network 1



GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network 2

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃



Cable Parameters



Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38



GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network 3



Delivery Length

• Standard length: 4,000m; other lengths are also available.

GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network 4

GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network 5

GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network 6

GCYFY Air Blown Fiber Optic Cable 24 48 96 Core for Duct Installation High Density Network 7

Welcome to your Inquiry Welcome to visit our factory!





FAQ – GCYFY Air Blown Micro Fiber Optic Cable



Q1: What is GCYFY fiber optic cable used for?
A: It is mainly used for FTTH, access networks, and micro-duct air blown installations.



Q2: What fiber counts are available?
A: Common options include 24, 48, and 96 cores, with customization available.



Q3: How is the cable installed?
A: It is installed by air blowing into pre-installed micro ducts.



Q4: Is the cable suitable for long-distance networks?
A: Yes, it is designed for backbone, metropolitan, and access network deployment.



Q5: What are the advantages of air blown installation?
A: It improves duct utilization, reduces construction costs, and allows easy network expansion.
