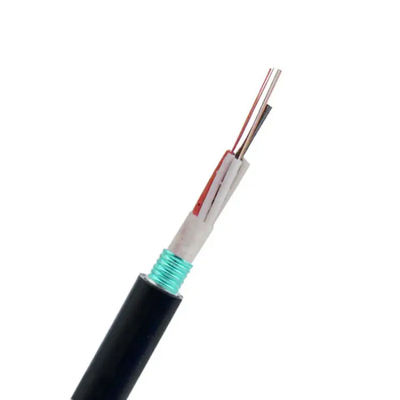

Name: GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTA 12core/24core/48core
Price: 1,249.28 USD
Availability: InStock

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom

1 Kilometer

MOQ

Inquiry for price

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Outdoor Fiber Optic Cable

Place Of Origin: Guangdong, China

Fiber Type: G652D Single Mode Or As Your Request

Fiber Count: 2-144 Cores

Tube: Multi-Loose Tube

Central Strength Member: Steel Wire

Outer Sheath: PE Or As Your Request

Application: Aerial,Overhead/ Direct Burial

Highlight:

GYTA armored fiber optic cable

outdoor telecom fiber cable

loose tube fiber cable 144 core

Basic Infomation

Place of Origin: Guangdong，China

Brand Name: JQ or OEM/Customize

Certification: CE/ISO9001/RoHS/FCC

Model Number: GYTA 12core/24core/48core

Payment & Shipping Terms

Packaging Details: Wooden drum or Customized

Delivery Time: 2-5days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 8000 kilometers per month

Gallery

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom

Product Description

GYTA Armored Outdoor Fiber Optic Cable Aluminum Tape Moisture Proof for Aerial and Duct Installation

Product Introduction

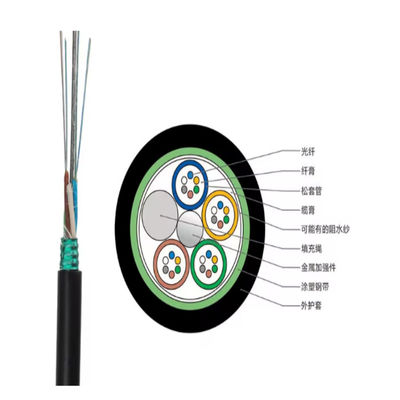

GYTA fiber optic cable uses a stranded loose tube structure with a central steel strength member. Aluminum tape armor and a PE outer sheath provide strong moisture protection and mechanical strength for reliable outdoor communication networks.

Key Features

Aluminum tape armor for moisture resistance
High tensile strength steel central member
Gel filled loose tube for fiber protection
Durable PE outer jacket
Stable long distance transmission

Applications

Aerial fiber optic installation
Underground duct networks
Telecom backbone networks
Metropolitan area networks
CATV and broadband systems

Specification:

item	value
Model Number	GYTA
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Loose tube material	PBT
Central strength member	steel wire
Armoured	Al tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Aluminum/Steel Tape armor
Color	Black or as your need
Package	Fumigation free wooden drum
Installation	aerial, in duct
Certification	CE/ROHS/ISO9001 /ANATEL
OEM	Available

Structure and Technical Specifications:

Fiber	Nominal	Nominal	Max Fiber	Max No.	Allowable Tensile		Allowable Crush
Count	Diameter	Weight	Per Tube	of(Tubes+	Load(N)		Resistance(N/100mm)
	(mm)	(kg/km)		fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19	325	12	24(2 layers)	2500	600	1000	300

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom 0

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom 1

WHY CHOOSE US:

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom 2

Certification:

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom 3

FAQ

1. What is GYTA fiber optic cable used for?
It is mainly used for aerial and duct installations in telecom and broadband networks.

2. What fiber types are available?
GYTA cable supports single mode and multimode fibers such as G652D and OM series.

3. What protection does the aluminum tape provide?
The aluminum tape improves moisture resistance and protects the cable from corrosion.

4. Is GYTA cable suitable for outdoor environments?
Yes, the PE outer sheath provides strong UV and weather resistance for outdoor use.

5. What core counts are available?
Common options include 2 to 144 cores depending on network requirements.
