Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable

Minimum Order Quantity : 5 km Price : base on fiber specifications
Packaging Details : Wooden reel Delivery Time : about 11 working days
Payment Terms : T/T, Western Union,Alipay Supply Ability : 1000KM per day
Place of Origin: China guangdong Brand Name: JQ
Certification: ISO9001 CE ROHS FCC Model Number: ADSS-4/8/12F

Detail Information

Application: Overhead/aerail Network Fiber Counts: 2~24F
Span: 80/100/120M OEM: Avalible
Strength Number: FRP Structure: Unit Loose Tube
Jacket Color: Black Operating Temperature: -40℃ To +60℃
Sample: Avaliable Fiber Type: Singlemode G652D G657a
Drum Length: 5km/drum
Highlight:

100M ADSS fibre optics cable

,

120M ADSS fibre optics cable

,

24 cores ADSS fibre optics cable

Product Description





ASU mini -ADSS fiber optic cable



destricption



ASU fiber optic cable, also known as mini ADSS fiber optic cable, it is a very popular dielectric self-supporting fiber optic cable used in America countires , it is light in weight and good in bending perfermance .

two FRP provides strong tension and all the cable to have a large span up to 120 meters . The fibers laid in a loose tube and the fibers count can up to 24 cores. When the fiber count is 24 coores in a loose tube,

12 cores will be coating in nomal color, and the other 12 cores will be marked with rings .



The advantages of ASU ( mini-adss) fibre cable



  • 1. the cable is light in weight and easy for installation.

  • 2. the cable span can be large to 120 meters .

  • 3. it is cheaper than ADSS, but have a good cable perfermance as ADSS cable

  • 4. Have a very good perfermance in bending, it is suitable for laying outdoor and FTTH network singnal transfer.

  • 5. Service life is expected over 25 years





Details picture shows

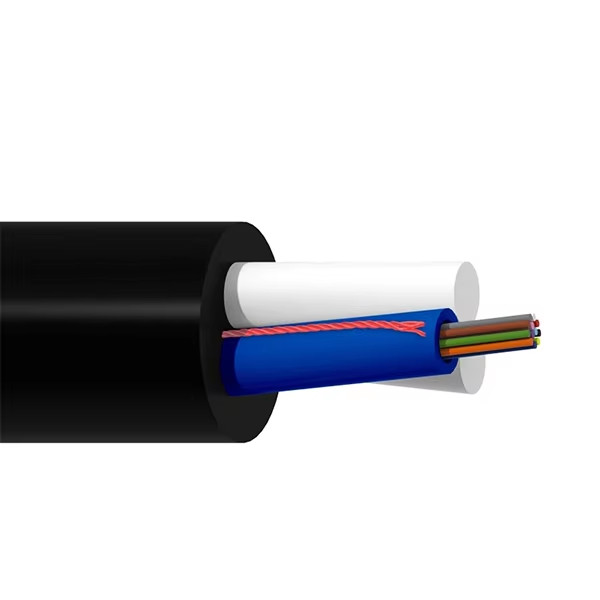

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable 0



                                                           mini adss ASU fiber cable

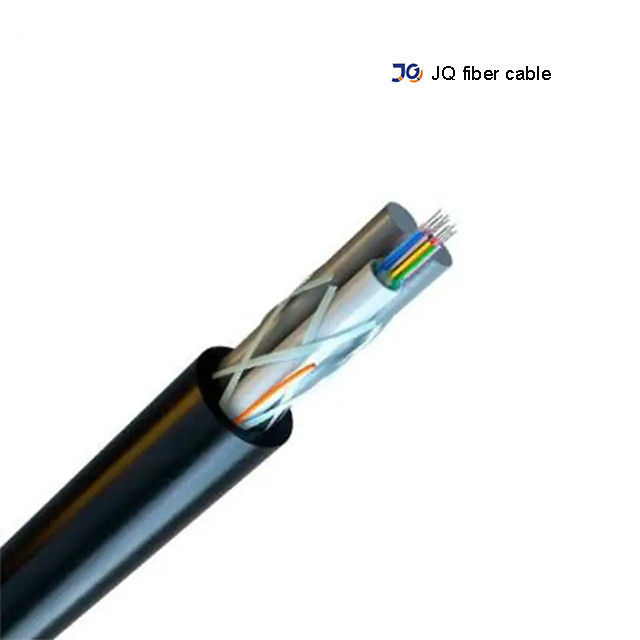

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable 1



                                                       ASU-mini ADSS fiber optic cable

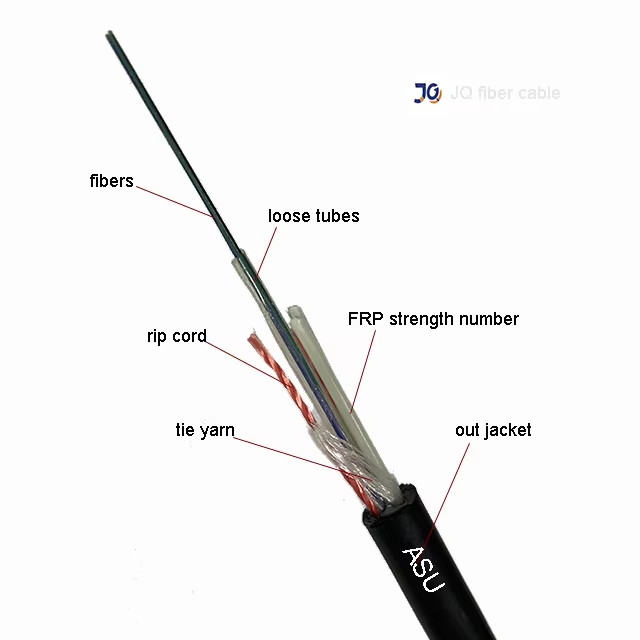

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable 2

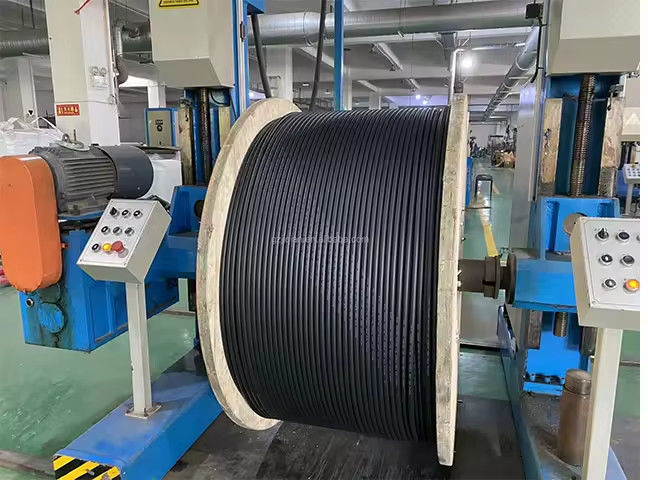

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable 3





Structure and Technical Specifications





fiber count structure fiber per tube

losse tube diameter

(MM)

FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)
PE Jacket
4 1+2 4 1.9 2.0/2.0 1.7±0.1 7.0±0.2 55
6 1+2 6 1.9 2.0/2.0 1.7±0.1 7.0±0.2 55
8 1+2 4 1.9 2.0/2.0 1.7±0.1 7.0±0.2 55
12 1+2 12 1.9 2.0/2.0 1.7±0.1 7.0±0.2 55
24 1+2 24 2.5 2.0/2.0 1.7±0.1 8.0±0.2 70



 Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

 pls contact our salers.







Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---







Packing:

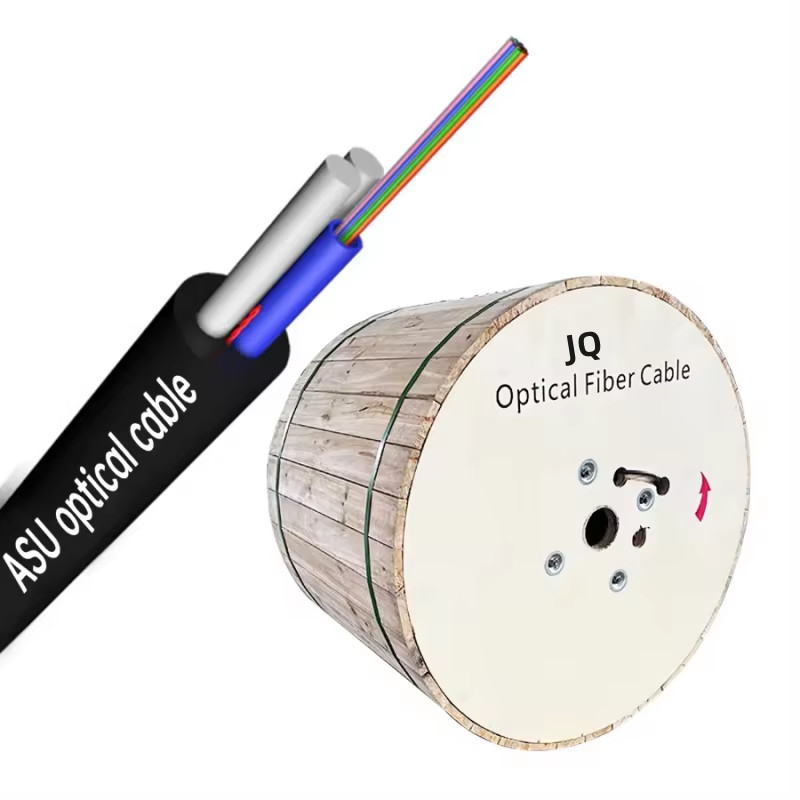

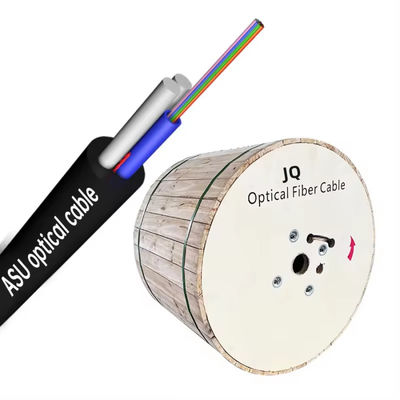

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable 4



FAQ



1.  Q:Are you a factory or trade company?
A: We are a factory


2. Q:What is the MOQ?

A: The MOQ of Fiber Optic cable is 15km.



3. Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,CORNING ,etc



4. Q:Can you accept small order?
A: Yes, small order is available .We support new project of our customers as we know business is always from small order.


5. Q:What’s delivery time?
A: The general delivery time is 10 days after order confirmed. It depends on the order quantity.



6. Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.  what is your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
