12 Core fiber optic cable outdoor G652D G657A overhead armored fibre optical cable GYXTW
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166

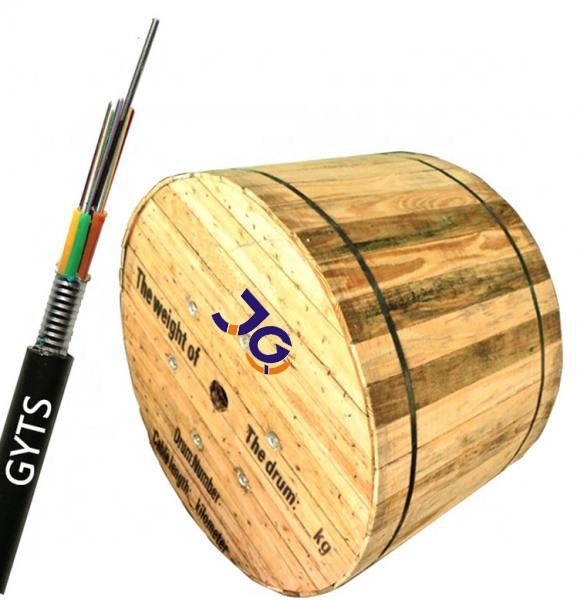

Minimum Order Quantity : | 3km | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 5 days | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 45000KM Per Month |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | ISO9001, FCC, ROHS/CE | Model Number: | GYTS-12/24/48/72/96/144F |
Detail Information |
|||
Color: | Black | Jacket Metarial: | HDPE |
---|---|---|---|
Strength Member: | Steel Wire | Fiber Count: | 2-288 Cores |
Installation: | Aerial & Duct | Armored: | Steel Tape |
Application: | Long Distance Singnal Transfer | Fiber Type: | G652D G655 G657A OM2 OM3 |
OEM: | Acceptable | Sample: | Avaliable |
Highlight: | GYTS GYFTS Fiber Optic Cable,96C Fiber Optic Cable |
Product Description
Product Description

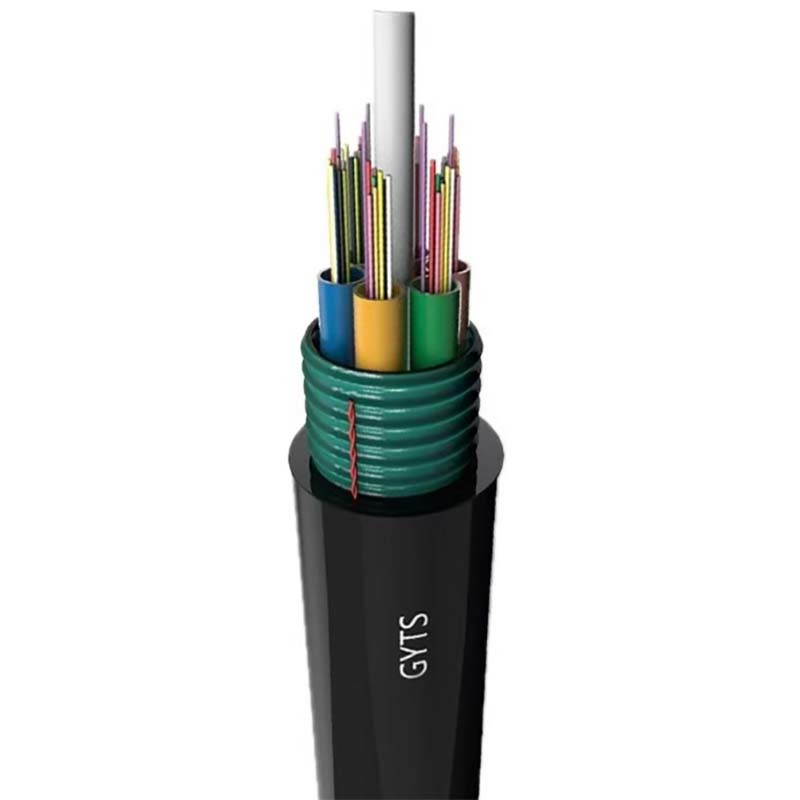

The structure of GYTS optical cable is to put 9/125um single-mode optical fiber or 50/125um, 62.5/125pm multi-mode optical fiber (silicon dioxide) into a loose sleeve made of high water-resisting material, and filling the loose sleeve with hydrate-resisting material. The center of the cable core is a metal reinforcement core. For multi-core optical cables, the reinforcement core needs to add a layer of PE jacket. Loose casing and filling rope around the center of the reinforcement core are twisted with compact and round cable cores. The gap in the cable core is filled with water-blocking filler. Double-sided wrinkled steel belt (PSP) is wrapped vertically and extruded into a polyethylene sheath into a cable.
Features
Has good mechanical properties and temperature characteristics.

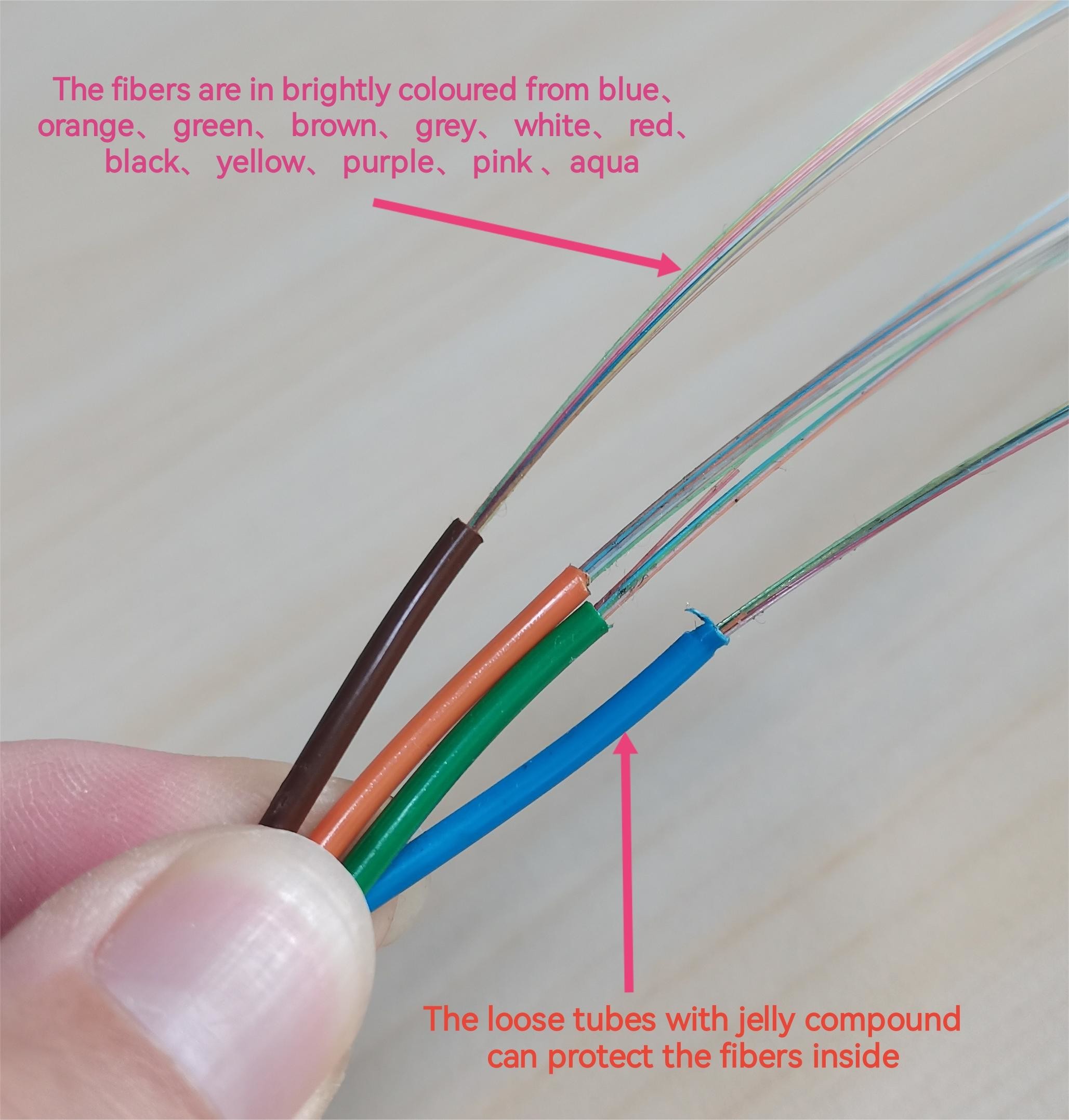

Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
2-30 | 9.2 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 | ||
38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 | ||
62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 | ||
74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 |

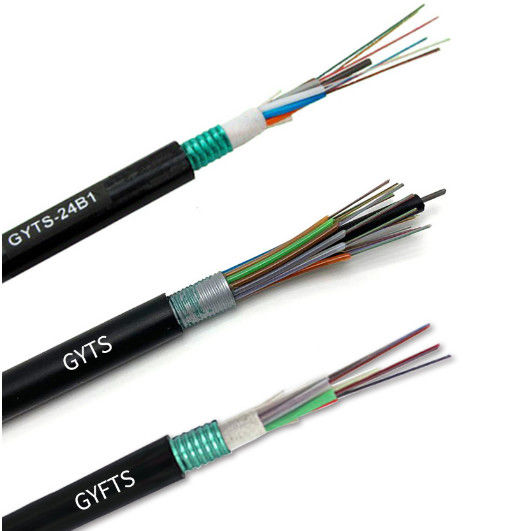

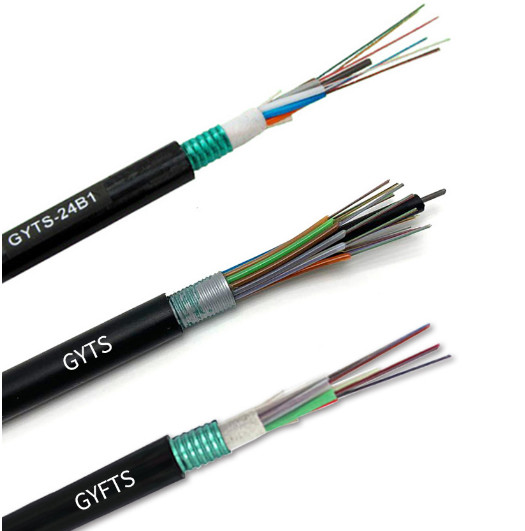

Detail product pictures
