Product Description

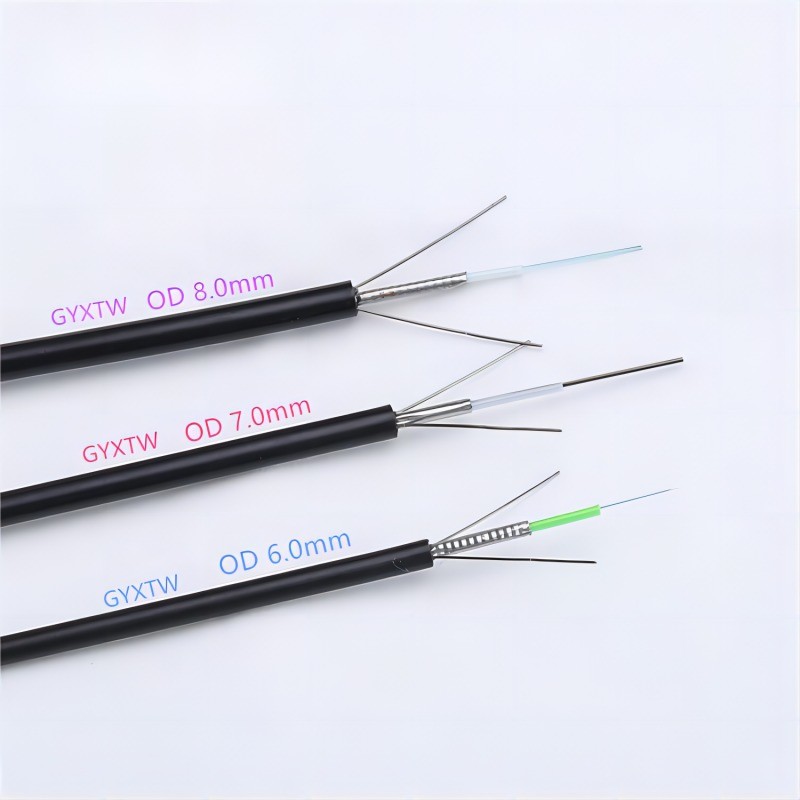

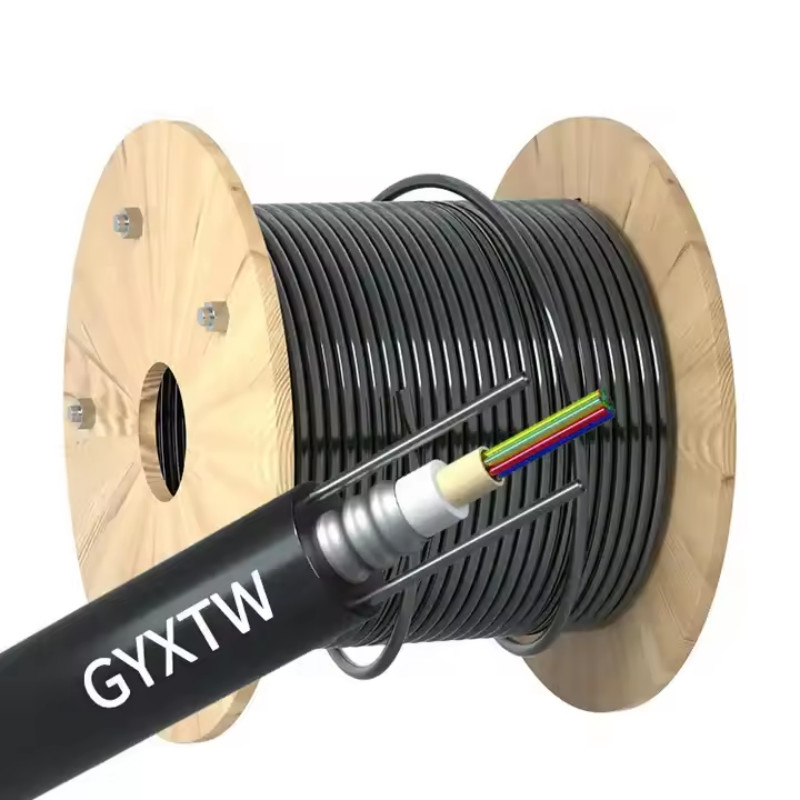

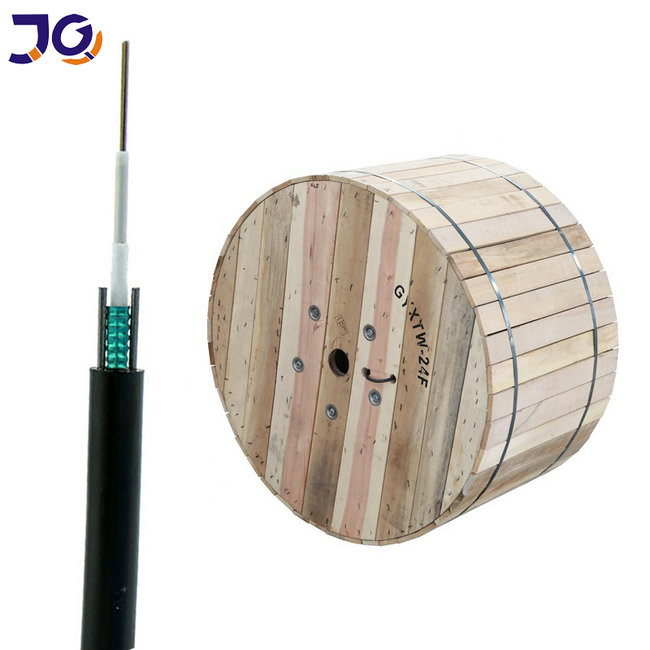

High srength GYXTW outdoor fiber optic cable with two steel wires

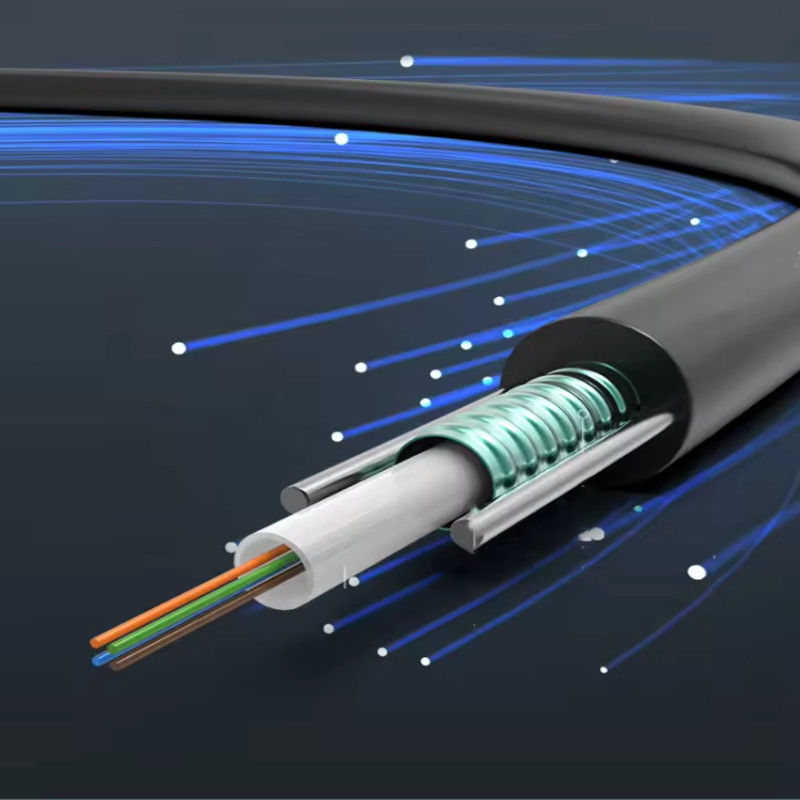

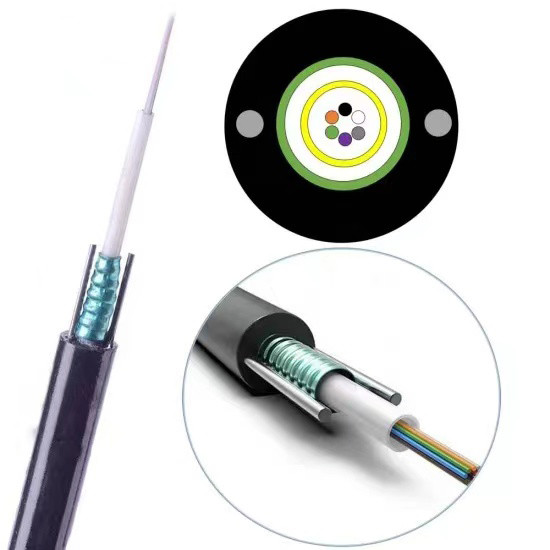

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal. Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
Features of GYXTW fiber optic cable
1. It has good mechanical and temperature properties.
2. The loose casing material itself has good hydrolysis resistance and high strength.
3. The tube is filled with special grease, which provides critical protection to the optical fibre.
4. Good pressure resistance and softness
5. Double-sided plastic-coated steel strip (PSP) improves the moisture-resistant ability of optical cables.
6. Two parallel steel wires ensure the tensile strength of the optical cable.
7. Small diameter, light weight, easy to lay
8. The number of cores is the most commonly used and cost-effective.
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Cable Parameters
| Items |
Specifications |
| Fiber Count |
2~24 |
| Colored Coating Fiber |
Dimension |
250μm+15μm |
| Color |
Blue,Orange,Green,Brown,Gray,White,Red, Black,Yellow,violet,pink,Turquoise |
| Loose Tube |
Dimension |
2.0mm±0.05mm |
| Material |
PBT |
| Color |
Natural |
| Strength Member |
Diameter |
1.0mm/0.7mm |
| Material |
Steel |
| Outer Jacket |
Dimension |
6.0~9.0mm |
| Material |
PE |
| Color |
Black |
Technical Parameters
Fiber
Count |
Cable
Diameter(mm) |
Cable Weight
kg/km) |
Tensile Strength
Long/Short
Term (N) |
Crush Resistance
Long/Short
Term (N/100mm) |
Bending
Radius Static/Dynamic
mm)
|
| 2~12 |
8 |
78 |
1000/3000 |
1000/3000 |
10D/20D |
| 14~24 |
10 |
90 |
1000/3000 |
1000/3000 |
10D/20D |
Application
Usable in Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
FAQ
1.Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
