Single Mode G652D Direct Buried Underwater Fiber Optic Cable 24 36 48 96 Core

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 5-7days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC Model Number: GYFTY33

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Number: GYFTY33 Number Of Fiber: 4-576
Sheath: PE/LSZH,Black Colour Or The Colour You Like Suitable Temperature: -40℃ +70℃
Fiber Type: Single Mode G652D Certification: ISO9001 ROHS CE FCC
Manufacturer: Yes Armored Fiber Optic Cable: Yes,Armour Steel Wire
OEM: Available
Highlight:

Direct Buried Underwater Fiber Optic Cable

,

Underwater Fiber Optic Cable G652D

,

Underwater Fiber Optic Cable Single Mode

Product Description

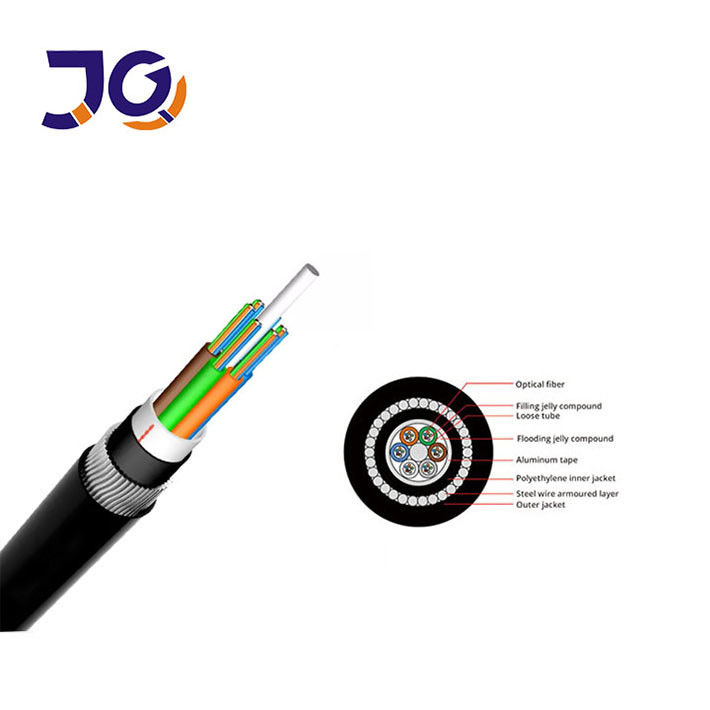

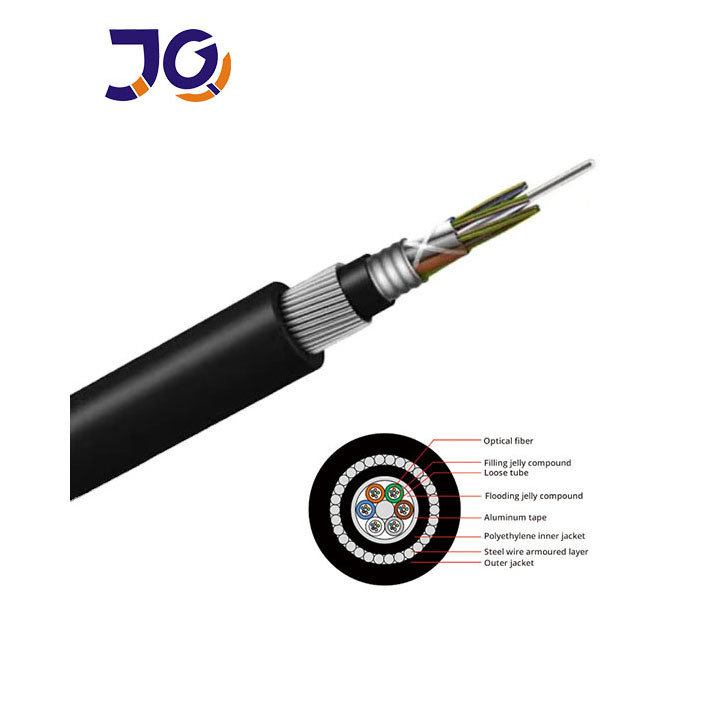

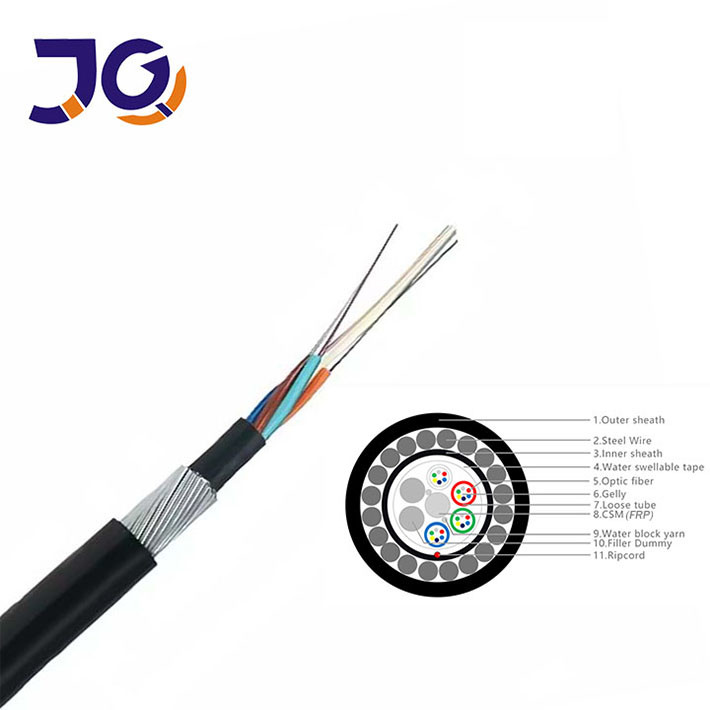

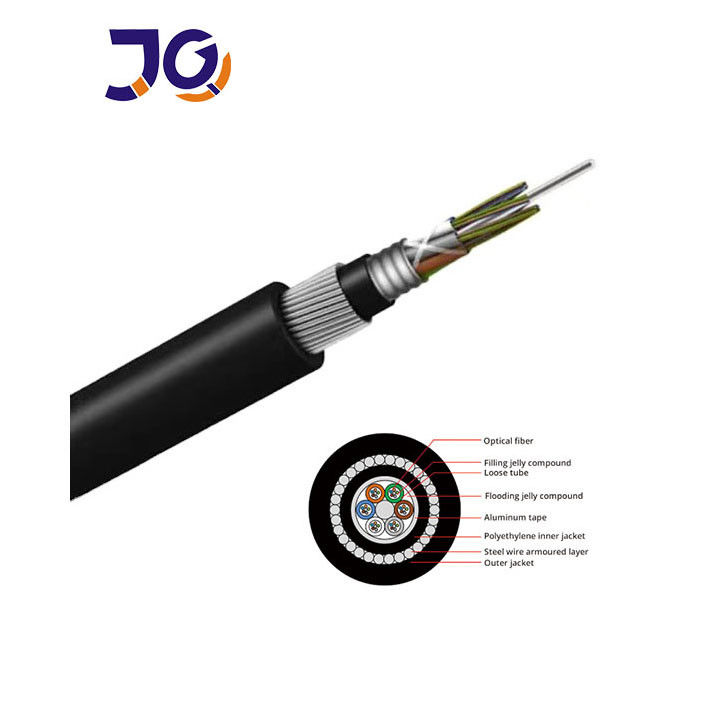

GYFTY33 Fiber Optic Cable construction with armoured steel wire, which provides better mechanical performance in tensile and crush resistance. Steel wire armour double jacket construction, also providing excellent protection against rodents. Double water blocking

yarn and tape around fiber cores, providing good waterproof performance.it's stranded

loose tube type,it comes with 4-576 cores SM/MM


Single Mode G652D Direct Buried Underwater Fiber Optic Cable 24 36 48 96 Core 0
Single Mode G652D Direct Buried Underwater Fiber Optic Cable 24 36 48 96 Core 1


Applications:

Directburied, DuctorUnderground conduits.

Backbone.


Technical data
Fiber count                        48 cores G652D
Cable diameter                         13.0±0.2mm
Loose tube 4,each tube contain 12 cores
Inner sheath                 PE           0.9MM
Outer sheath                 PE           1.8±0.2MM

Tension(Long Term)

                N            3500

Tension(Short Term)

                N             7000

Crush(Long Term)

                N/10cm

            1000

Crush(Short Term)

                N/10cm

            3000

Operating Temperature

                ℃

            -40~+70



Fiber Optic G652D:



Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100



Cable testing:

Single Mode G652D Direct Buried Underwater Fiber Optic Cable 24 36 48 96 Core 2





Company profile:

Single Mode G652D Direct Buried Underwater Fiber Optic Cable 24 36 48 96 Core 3

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

Single Mode G652D Direct Buried Underwater Fiber Optic Cable 24 36 48 96 Core 4

FAQ



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



For more information please contact me
Single Mode G652D Direct Buried Underwater Fiber Optic Cable 24 36 48 96 Core 5
