12 24 48 cores outdoor overhead aerial GYTC8S GYTC8Y figure 8 fiber optic cable

Minimum Order Quantity : 3 km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GYTC8S

Detail Information

Fiber Type: G652D/G657A/G655 Fiber Count: 2-144 Cores
Length: 3 Km Or Customized Model Number: GYTC8S/GYFTC8A/GYXTC8S
Color: Black Messenger Wire: 1.0*7 Steel Stranded Wire
Structure: Figure 8 Cable Type: APL Tape
Operating Temperature: -40 ~ +60 C Application: Outdoor Aerial Application
Sample: Avaliable

Product Description





Self-supporting Figure 8 Fiber Optic Cable GYTC8S

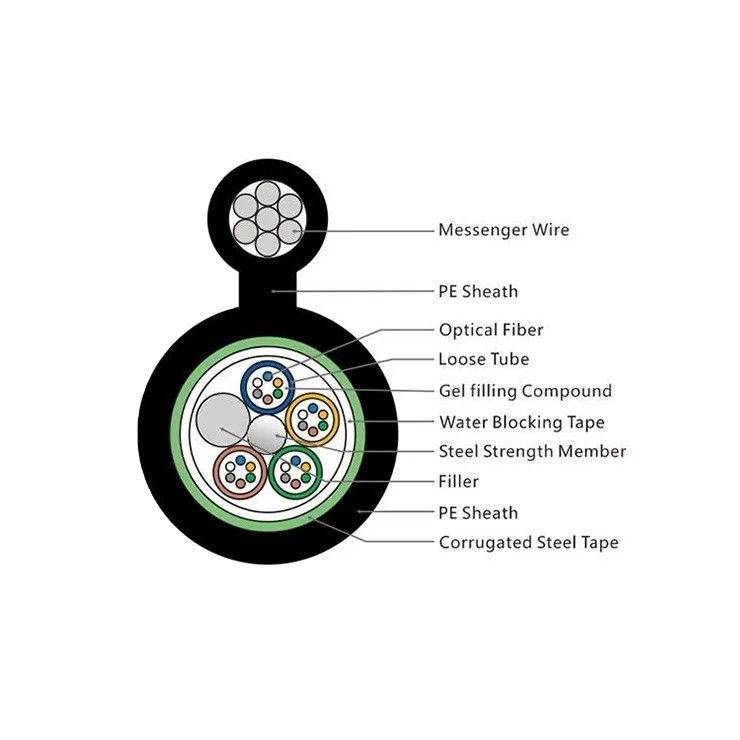

GYTC8S (metal-reinforced hanging wire, loose sleeve layer twisted filling, steel-polyethylene bonding sheath 8-shaped self-bearing outdoor optical cable for communication) The structure of the optical cable is to put single-mode or multi-mode optical fibre into the inner-filled waterproof compound loose sleeve made of high-modulus plastic. The centre of the cable core is a metal reinforcement core. For some optical cables with a number of cores, a layer of polyethylene (PE) is also extruded outside the metal reinforcement core. The loose sleeve (and filling rope) is twisted around the centre to strengthen the core to form a compact and round cable core, and the gaps in the cable core are filled with water-blocking compounds. After coating the plastic steel belt is wrapped vertically, it is made of steel stranded wire and sling polyethylene sheath at the same time.







12 24 48 cores outdoor overhead aerial GYTC8S GYTC8Y figure 8 fiber optic cable 0





Features



1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber Model G.652D
Design(Strength Member+Tube&Filler) 1+5
CentralStrengthMember Material Steel Wire
Diameter(+0.05)mm 1.5
LooseTube Material PBT
Diameter(+0.06)mm 2
Thickness(+0.03)mm 0.32
TheMax.CoreNO./Tube 12
Filler Rope Material HDPE
Color White
Diameter(+0.06)mm 2.1
Strand Strength Member Material Galvanized Steel
Type φ0.9x3
Armor layer Material Steel Tape
OuterSheath① Material MDPE
Thickness(+0.03)mm 1.
OuterSheath① Material MDPE
Thickness(40.03)mm 1.8
CableDiameter(土0.2)mm 9.5*17.8(nominal)
CableWeight(+10)kg/km 160(nominal)
Min.installation/N 1500
Attenuation 1310nm 0.35dB/KM
1550nm 0.21dB/KM
Min.bendingradius Without Tension 10.0*Cableφ
Under Maximum Tension 20.0xCableφ

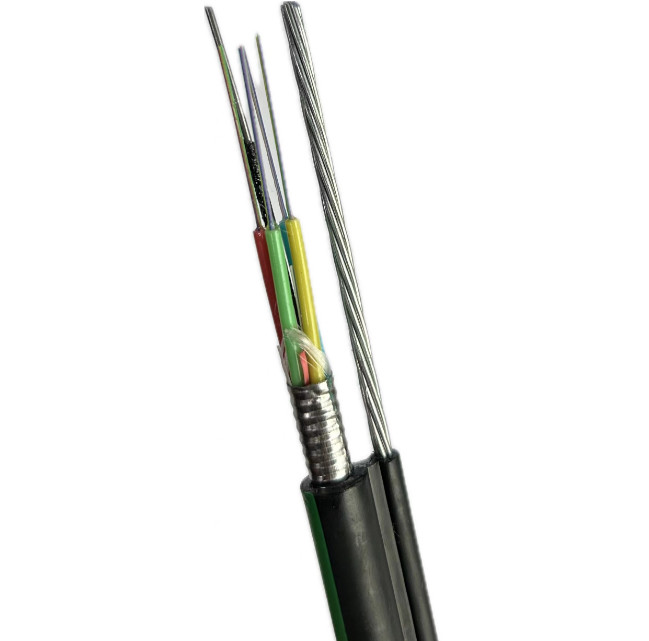

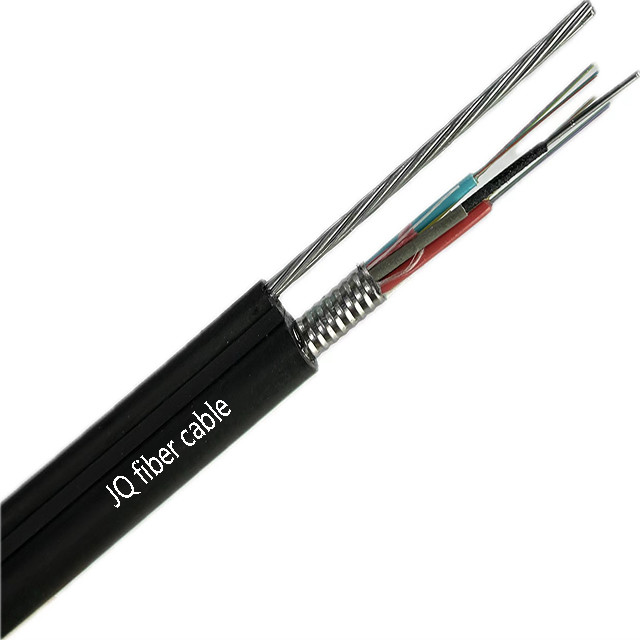

Picture Show





12 24 48 cores outdoor overhead aerial GYTC8S GYTC8Y figure 8 fiber optic cable 1





12 24 48 cores outdoor overhead aerial GYTC8S GYTC8Y figure 8 fiber optic cable 2





12 24 48 cores outdoor overhead aerial GYTC8S GYTC8Y figure 8 fiber optic cable 3

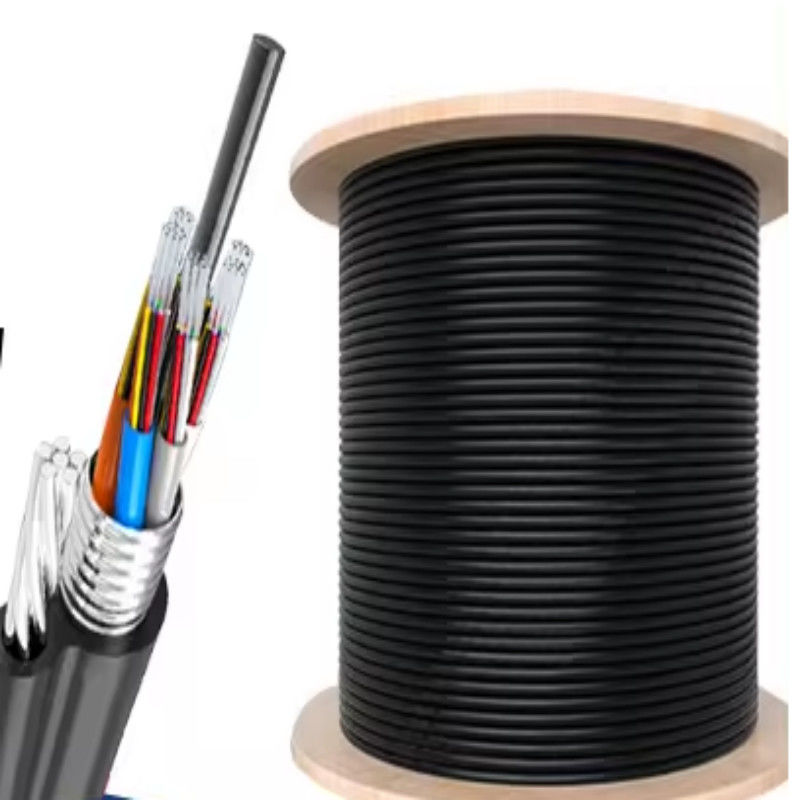

Packing

• Standard Cable Wooden Drum

• Standard reel length: 2/3km/reel, other length is also available



12 24 48 cores outdoor overhead aerial GYTC8S GYTC8Y figure 8 fiber optic cable 4





FAQ

1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 10 years’ history.



2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



3.What is your warranty period?

25 years for fiber optic cable



4.What is your delivery time?

Usually within 3-5 working days



5.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
