Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001 Model Number: GYTC8S

Detail Information

Fiber Count: 2-144 Core Lift Time: More Than 25years
Fiber Type: G652D Application: Aerial, Self-supported
Fiber Brand: YOFC Length: 1/2/3/4/5KM
Strength Member: Steel Wire
High Light:

Steel Wire Figure 8 Fiber Optic Cable

,

5KM Length Figure 8 Fiber Optic Cable

,

Fiber Optic Cable Self - Supported

Product Description

Fig 8 Cable Single Mode Amoured 12 24 48 96 Cores Fiber Optic Cable

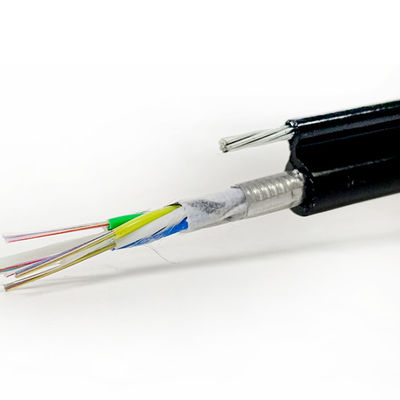

Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length 0
Product Description
Type
GYFTC8S
GYTC8S
GYXTC8S
Fiber Count
2-144
2-144
2-12
Reference Outer Diameter
9.8~16.2mm
9.8~16.2mm
7.6mm
Cable Weight(kg/km)
180~260
180~260
130
Tensile Stength
2000~7000N
2000~7000N
1500~4000N
Attenuation (dB/km)
≤0.36dB/km@1310mm; ≤0.22dB/km@1550mm
Operation temperature
-40 ℃~70 ℃

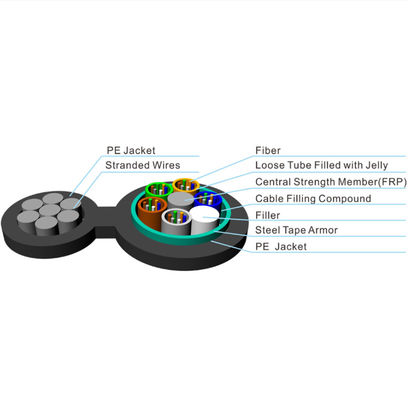

Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length 1





Self-supporting optical fiber
Adopted to the core network,metropolitan area network,access network etc.
. High tensile strength of stranded wires meed the requirement of self-supporting and reduce the installation cost;
. Special tube filling compound ensure a critical protection of fiber;
. The following measures are taken to ensure the cable watertight.
Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length 2

Fiber parameter

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100



Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length 3

Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length 4



There are twelve fiber color code.They are A grade fiber.

Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length 5

Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length 6

We are fiber cable manufacturer.We have a factory.



Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length 7

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length 8

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351



FQA

Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.

Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.

Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

Q5. Can you supply customized products and logo?
Yes. We supply OEM service.

Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
