Single Mode Figure 8 Self-support Fiber Optical Cable GYTC8S 24 48 96 Core

Product Description

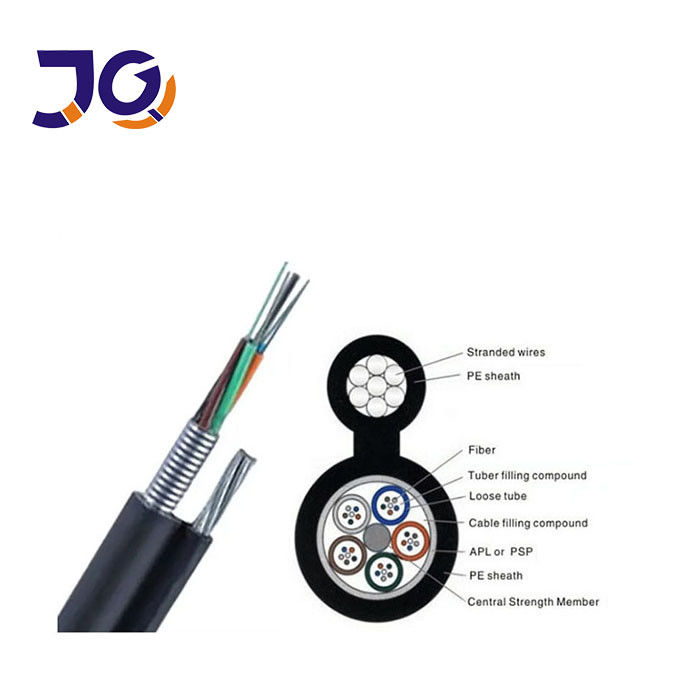

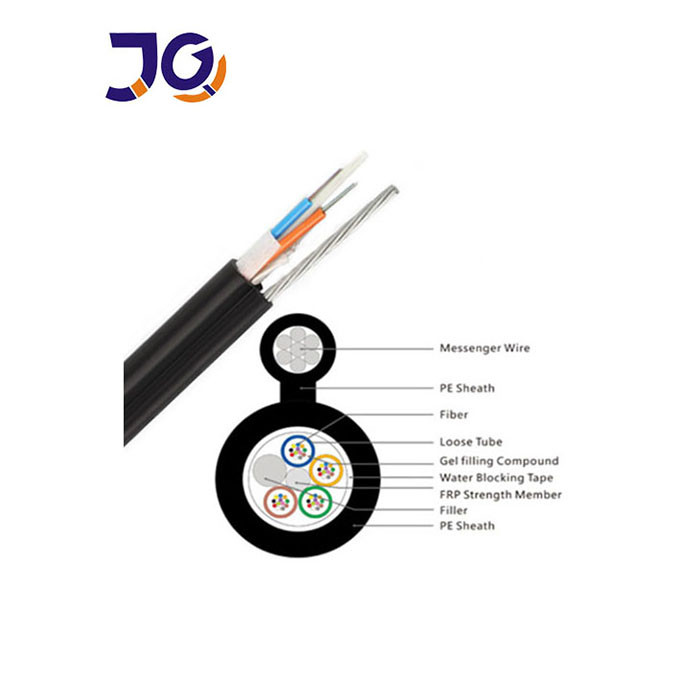

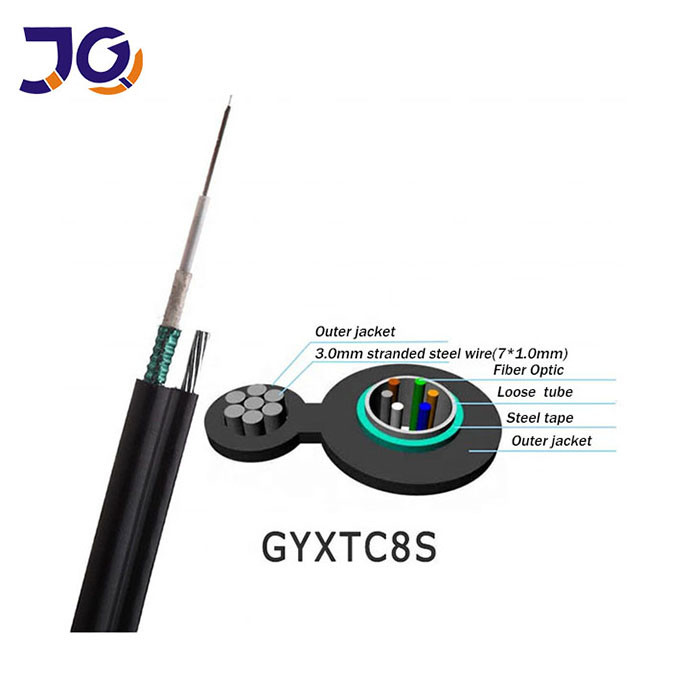

Figure 8 fiber optic cable is constructed by placing a single-mode or multi-mode fiber into a loose sleeve made of high modulus plastic and filled with a water-blocking compound. The center of the core is a metal reinforcement core, and for some cores, a layer of polyethylene is extruded over the metal reinforcement core. The loose tubing (and filler rope) is twisted around the center reinforcement core to form a compact and round core, with the gaps in the core filled with a water-blocking filler. The cable core is wrapped longitudinally with steel-plastic composite tape and placed in parallel with the steel strand while squeezing the 8-letter sheath into the cable.

Features:

1. Steel belt armor: provides good tensile strength and lateral pressure resistance, ensuring the stability of the optical cable in harsh environments.

2. 8-shaped self-supporting structure: has high tensile strength, is convenient for overhead laying, and reduces safety costs.

Polyethylene sheath: provides good UV resistance and extends the service life of the optical cable.

3.Adopt SZ twisted structure, easy to branch and ensure the optical fiber is not stressed under harsh environment

4.The tube is filled with special grease to protect the optical fiber critically

5. Polyethylene sheath makes the cable have good UV resistance



Specification:

Cable Type: Figure 8 Self-SupportingAerial Outdoor Fiber Optic Cable

Fiber Type: G652D
Jacket Material: Polyethylene (PE)
Total Fiber Count: 4-288 Cores
Loose tube:PBT

Application: Aerial

Armor: Corrugated Steel Armoring



Technical parameter



Performance	Long-term	Short-term
Max.Tension(N)	3500	7000
Max.Crushing	300	1000
Min. Bend Radius(Dynamic)	20D(Dynamic)	10D(static)
Storage and operating temperature	-40℃ to +70℃



Optical Characteristics



Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.35
	1550nm	dB/km	≤0.21
Proof stress level		kpsi	≥100



Application: overhead



Company profile:

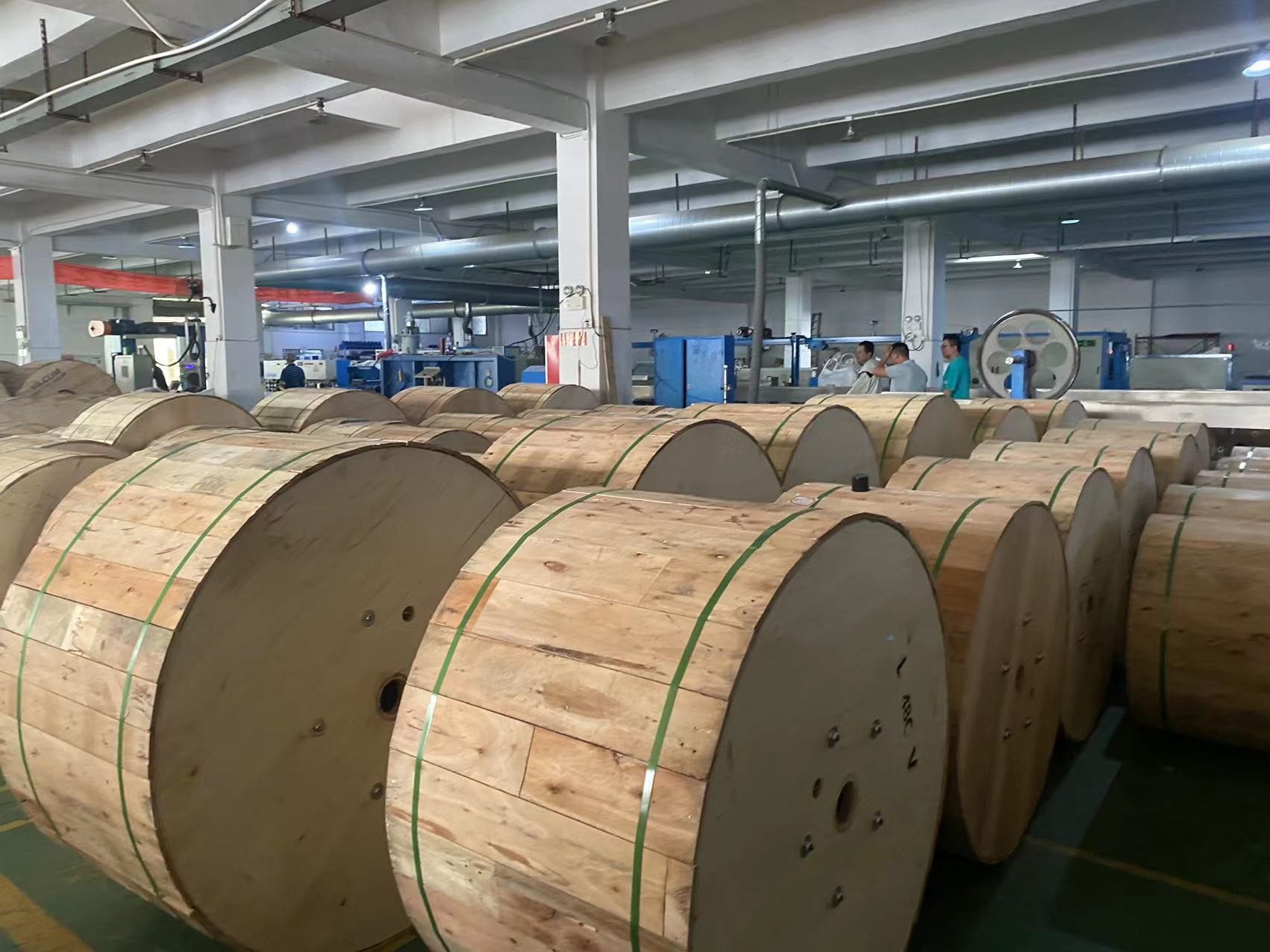

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.Exporting fiber optic cable to all over the world
4.CE/ROSH/FCC/ISO9001 Certifications



Certification:





Exhibition:



FAQ:



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
