4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a
4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a
4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a 4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a 4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a 4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a
Contact Now

4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a

Place of Origin: Guangzhou China Brand Name: JQ
Certification: ISO9001 Model Number: GYTC8Y/GYXTC8Y

Detail Information
Fiber Diameter: 9/125μm Bending Radius: 20D
Jacket: UV PE Cladding Diameter: 125.0±0.1
Water Blocking System: Filling Compound Cable Use: Outdoor
Outer Diameter: 7.0mm-9.0mm Self Suporting: Stranded Steel Wire/Steel Wire
Strength Member: Aramid Yarn
Highlight:

Figure 8 Fiber Optic Cable

,

12 Core Fiber Optic Cable

,

Gyxtc8y Figure 8 Fiber Optic Cable

Product Description

4core 6core 12core Figure 8 Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a

Product Description

Figure 8 Fiber Optic Cable
  • Self-Supporting: The Figure 8 Fiber Optic Cable is designed to be self-supporting, eliminating the need for additional hardware or structures.
  • Stranded Steel Wire: The cable is reinforced with stranded steel wire, providing high strength and support for aerial installations.
  • UV PE Jacket: The cable is jacketed with UV PE material, which provides excellent protection against harsh weather conditions and UV radiation.
  • Aluminum Tape/Steel Tape Armored: The cable is armored with either aluminum tape or steel tape, providing additional protection against rodents, moisture, and other external factors.
4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a 0
4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a 1

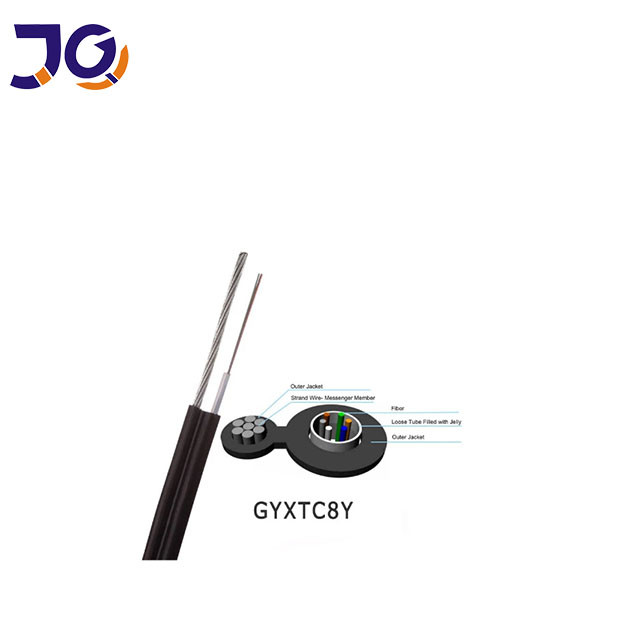

Cable structure and parameter
Fiber
number
Galvanized steel wire
diameter
Loose
tube
Sheath thickness
(nominal*)
Connect
dimension
Cable dimension
W*H
(nominal**)
Weight
(approx.)
mm
mm
mm
mm
mm
kg/km
6
1.6
2.5
1.5
1.5*1.5
6.8*11.5
70
12
1.6
3
1.5
1.5*1.5
7.4*12.0
77



* The nominal sheath thickness may have a tolerance with ±0.2mm.
** The nominal cable dimension may have a tolerance with ±0.5mm.



4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a 2



Performance of Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)
Item
Specification
Fiber type
Single mode
Fiber material
Doped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm

≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.30 dB/km
Point discontinuity
≤ 0.05 dB
Cable cut-off wavelength
≤ 1260 nm
Zero-dispersion wavelength
1300 ~ 1324 nm
Zero-dispersion slope
≤0.093 ps/(nm².km)
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm

≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMD
≤0.2 ps/km½
Mode field diameter @ 1310 nm
(8.6~9.5)±0.6 um
Core / Clad concentricity error
≤0.6 um
Cladding diameter
125.0 ± 1 um
Cladding non-circularity
≤1.0%
Primary coating diameter
245 ± 10 um
Proof test level
100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm
≤ 0.1 dB/km

Technical Parameters:

Product Name Figure 8 Fiber Optic Cable
Aerial Use Yes
Customizable Yes
Cable Diameter 7.0mm-16.0mm
Bend Radius 20x Cable Diameter
Jacket Material LSZH (Low Smoke Zero Halogen)
Bending Radius 20D
Cable Sheath PE (Polyethylene)
Self Supporting Stranded Steel Wire
Jacket UV PE (UV-resistant Polyethylene)
Fiber Diameter 9/125μm
Armored Material Aluminum Tape or Steel Tape
Cable Use Outdoor

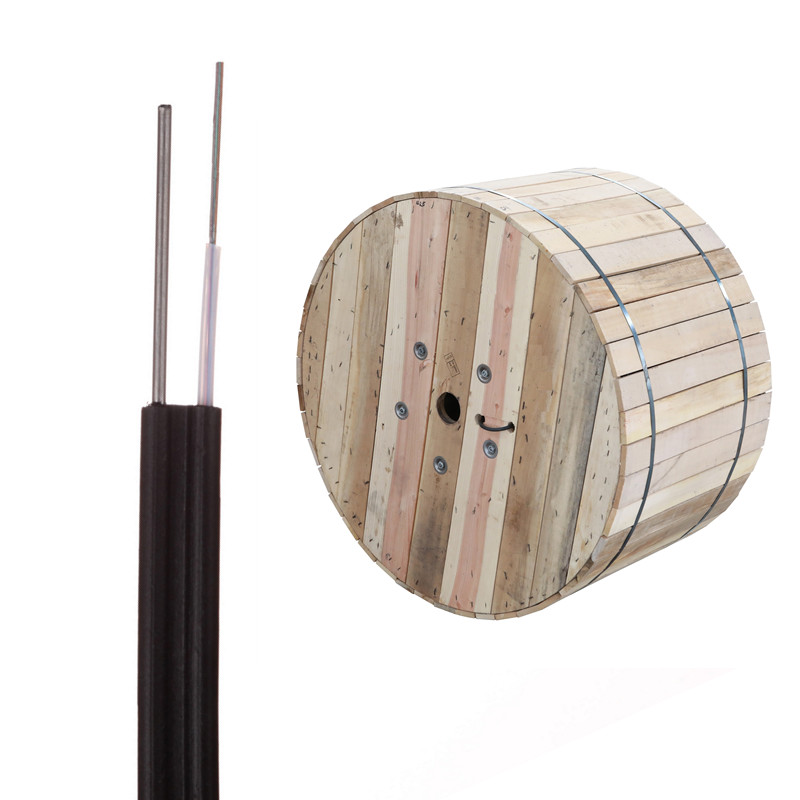

Packing and Shipping:

Packaging and Shipping

4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a 3

4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a 4



4 Core 6 Core 12 Core Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a 5
Welcome to your inquiry! Welcome to visit our factory!
Contact me at +86 18122384553 to get free sample.
