Outdoor Aerial Duct Underground GYFTS Fiber Optic Cable

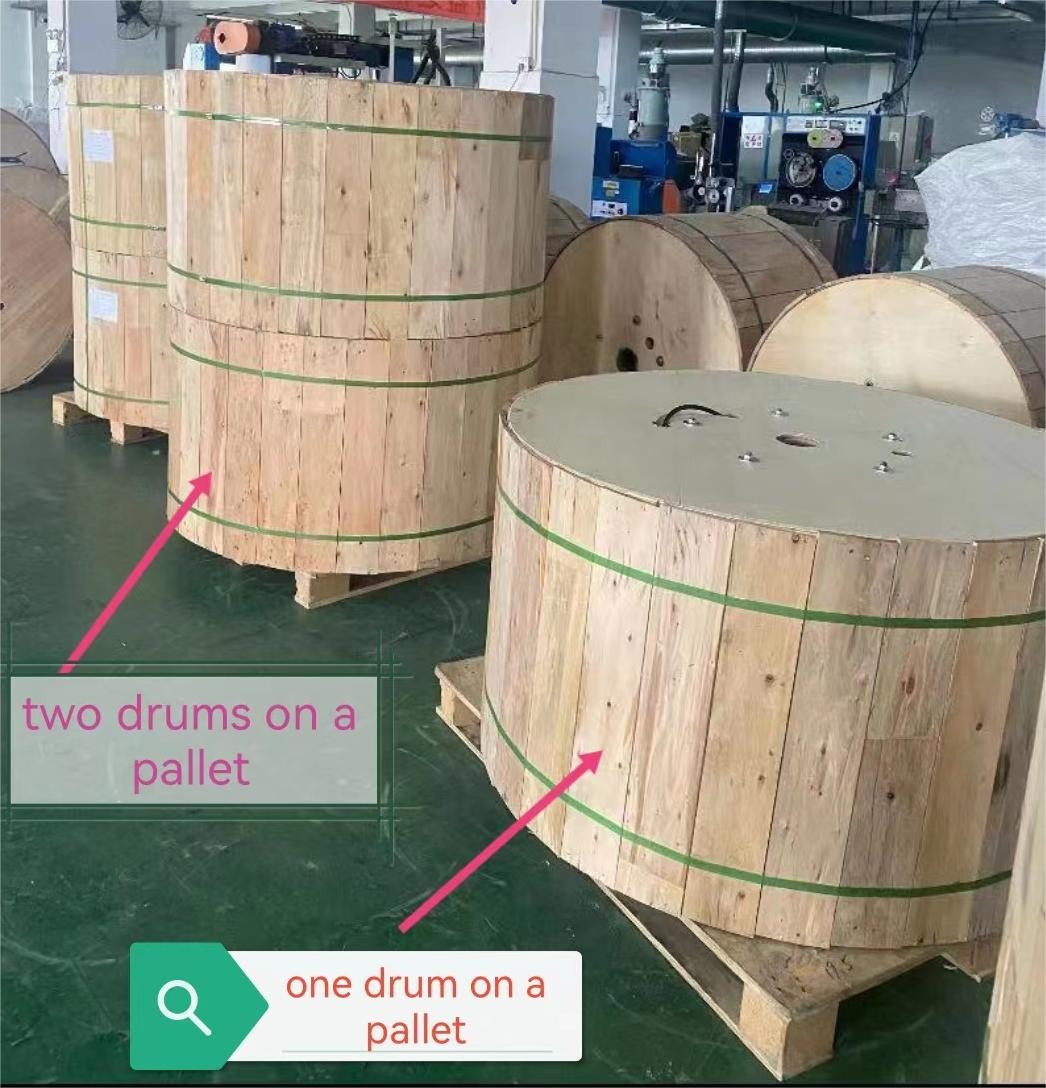

Minimum Order Quantity : 3 km Packaging Details : wooden drum
Delivery Time : 5 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 45000KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001, FCC, ROHS/CE Model Number: GYFTS-12/24/48/72/96/144/288F

Detail Information

Color: Black Jacket Metarial: PE /LSZH
Strength Member: FRP Fiber Count: 2-288 Cores
Installation: Aerial & Duct& Underground Armored: Steel Tape
Application: Long Distance Singnal Tranmit Fiber Type: G652D G655 G657A OM2 OM3
Cable Drum: 2~5km Sample: Avaliable
OEM: Avaliable

Product Description

 Arerial & duct GYFTS Fiber Optic Cable

Product Description

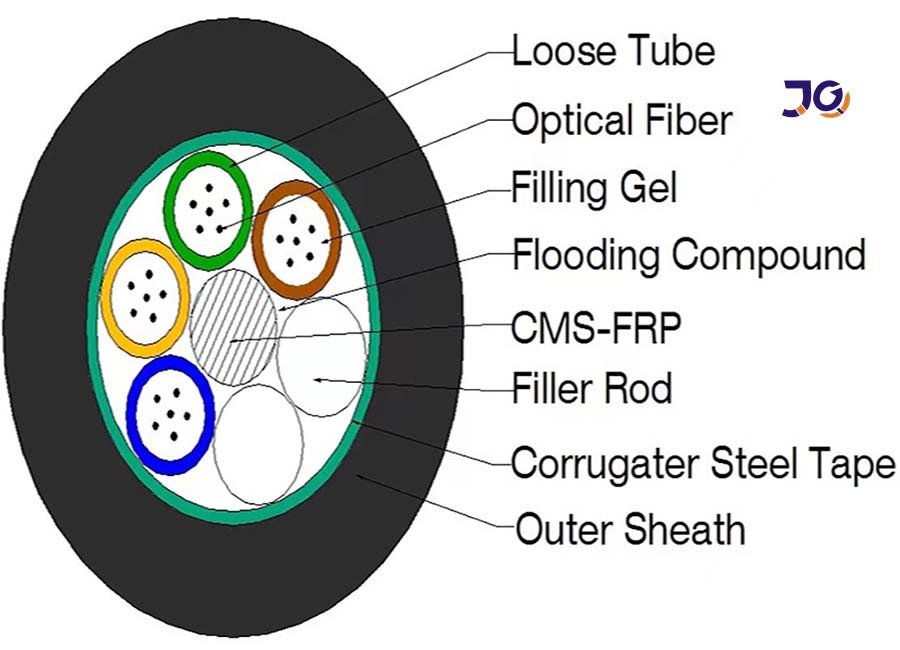

The structure of GYFTS optical cable is to put single-mode or multi-mode optical fibre into a loose sleeve made of high-modulus plastic, and the sleeve is filled with water-resisting compounds. The centre of the cable core is a non-metallic reinforcement core (FRP). For some optical cables with a number of cores, a layer of polyethylene needs to be squeezed outside the non-metallic reinforcement core. 5-12 loose sleeves (and filling ropes) are twisted around the centre reinforcement core to form a compact and round cable core. The gap in the cable core is filled with water-resistant compounds, and finally wrapped vertically. Steel-plastic composite belt is extruded and polyethylene sheathed into a cable. The optical cable is suitable for areas with high lightning and lightning, and has good lightning protection functions. Optical cable chromatography can be led chromatography or full chromatography.





Features



1. double-sided wrinkled steel strip (PSP) improves the moisture-resistant ability of the optical cable, and the wrinkled part can be better combined with PE to make the structure stronger.



2. anti-tensile, anti-wear, anti-impact, anti-flattening, can be repeated dome bending, twisting, bending, bending (the dome bending angle does not exceed 90°) shooting, etc.,



3. with good mechanical properties.





 Applications:



• Adopted to Outdoor distribution.

• Suitable for aerial .pipeline laying method.

• Long distance and local area network communication.

• Applicable temperature range: one 40°C one +60°C


Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Count
Diameter
(MI)
Weight
(KG/KMI)
Min.Bend Radius Mlin.Tension
(N)
Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 9.2 95

10
Times
of
Diameter

















20
Times
of
Diameter

















1500 600 1000 300
32-36 9.5 100 1500 600 1000 300
38-60 10.0 115 1500 600 1000 300
62-72 10.5 125 1500 600 1000 300
74-96 12.9 175 1500 600 1000 300
98-120 14.4 210 1500 600 1000 300
122-144 15.8 245 1500 600 1000 300
146-216 16.3 260 1500 600 1000 300
218-240 19.5 345 1500 600 1000 300
242-288 21.7 415 1500 600 1000 300





Detail product pictures

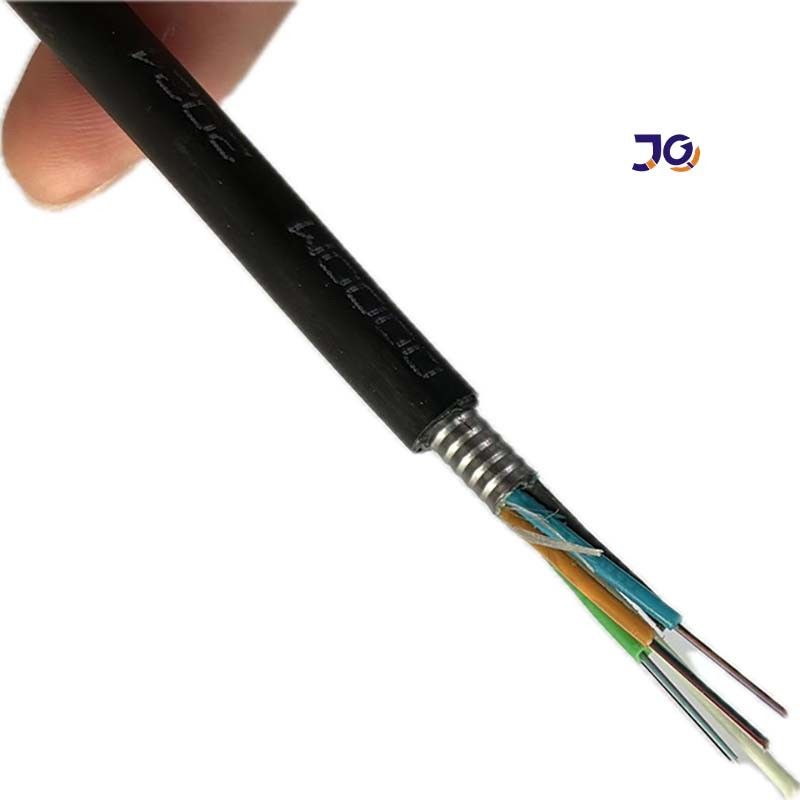

Outdoor Aerial Duct Underground GYFTS Fiber Optic Cable 0



                                                                       GYFTS

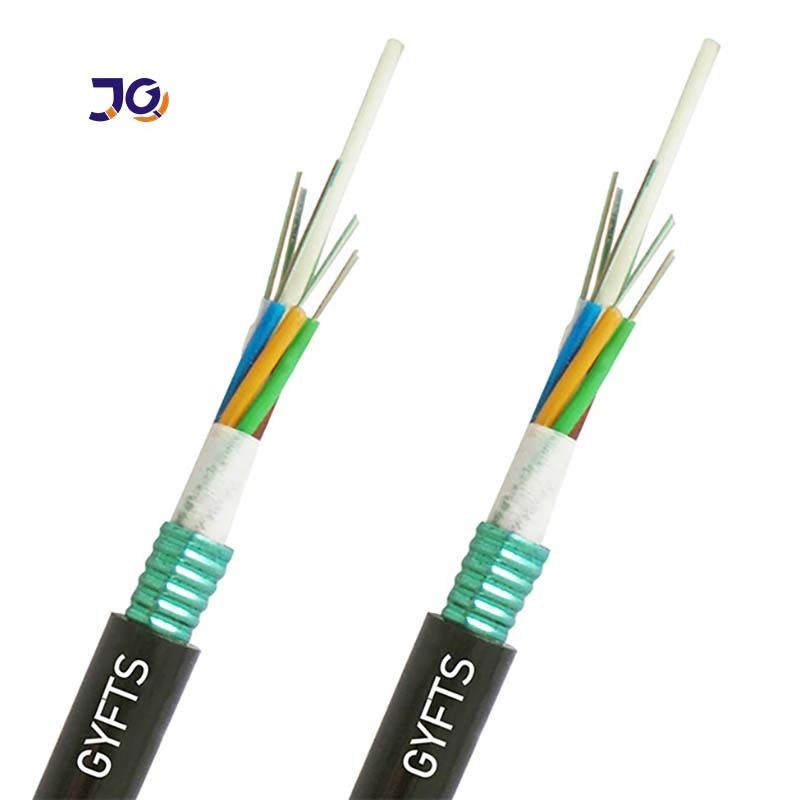

Outdoor Aerial Duct Underground GYFTS Fiber Optic Cable 1

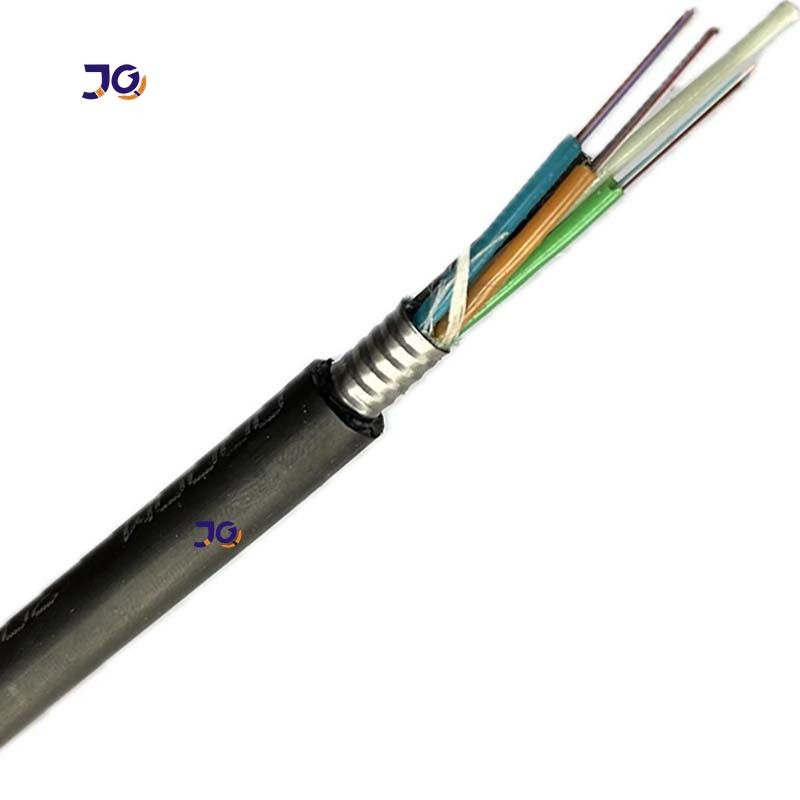

Outdoor Aerial Duct Underground GYFTS Fiber Optic Cable 2





Outdoor Aerial Duct Underground GYFTS Fiber Optic Cable 3







FAQ



1. Are you tradning company or manufacturer?
We are the manufacturer with 15 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2. About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
