Home ProductsUnderground Fiber Optic CableUnderground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Contact Now

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

Minimum Order Quantity : 1km Packaging Details : wooden drum,ply wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC SDOC Model Number: GYTA53+33

Detail Information
Fiber Type: G652D Color: Black
Jacket: HDPE Fiber Count: 4-144cores
Product Name: Stranded Loose Tube Armored Cable Oem: Available
Application: Underground Buired Name: Underground Directly Buried Armored Cable
Cable Type: Double Jacket Double Armored Armored: Aluminun Tape+Steel Wire
Highlight:

Submersible Underground Fiber Optic Cable

,

96 Cores Underground Fiber Optic Cable

,

Direct Buried Underground Fiber Optic Cable

Product Description

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33







Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 0

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 1

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 2





Note : This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information





Application

Suitable for directly buired laying or Underwater method



Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 3

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 4









Optical Characteristics

 Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 5



Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 6

Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 13.5 245

10
Times
Diameter

















20
Times
Diameter

















 4000 10000 3000 5000
32-36 13.8 252 4000 10000 3000 5000
38-60 14.5 275 4000 10000 3000 5000
62-72 15.0 285 4000 10000 3000 5000
74-96 15.5 295 4000 10000 3000 5000
98-120 16.0 305 4000 10000 3000 5000
122-144 17.0 315 4000 10000 3000 5000
146-216 19.0 345 4000 10000 3000 5000
218-240 20.5 365 4000 10000 3000 5000
242-288 21.5 395 4000 10000 3000 5000

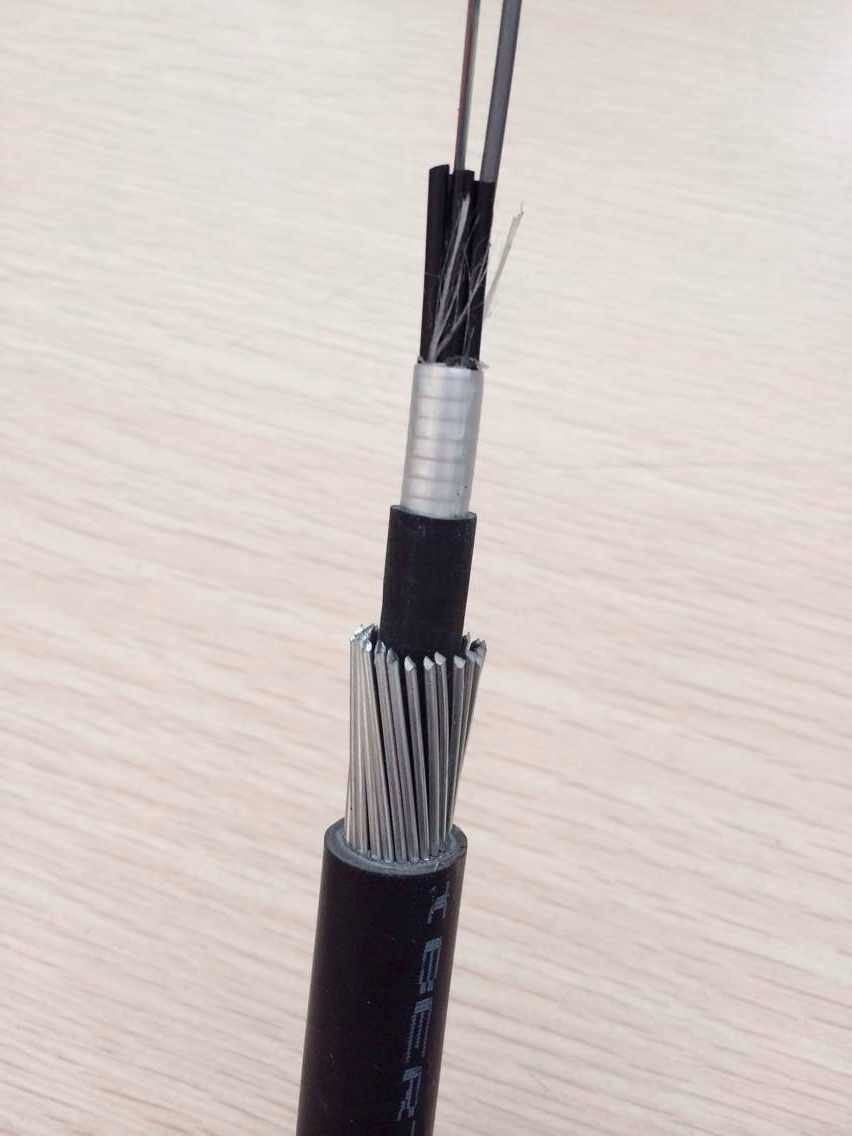

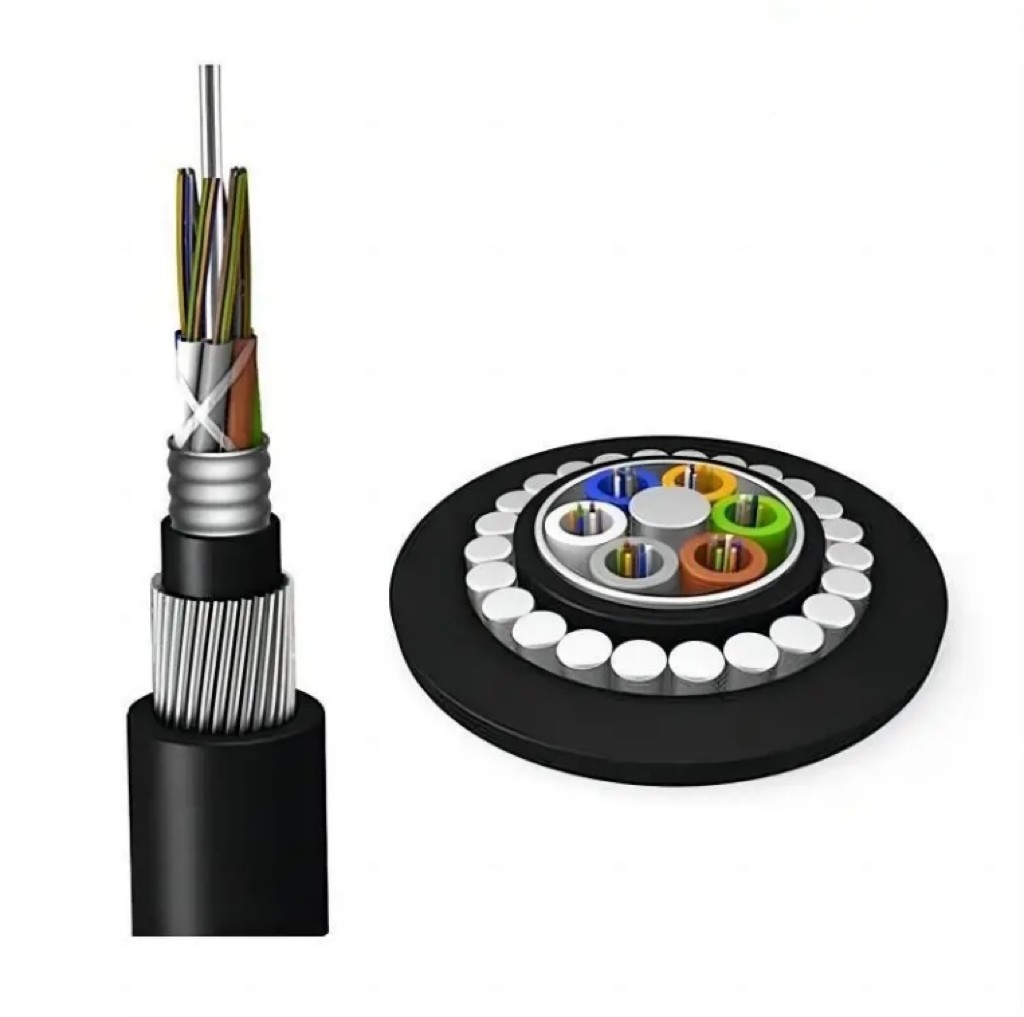

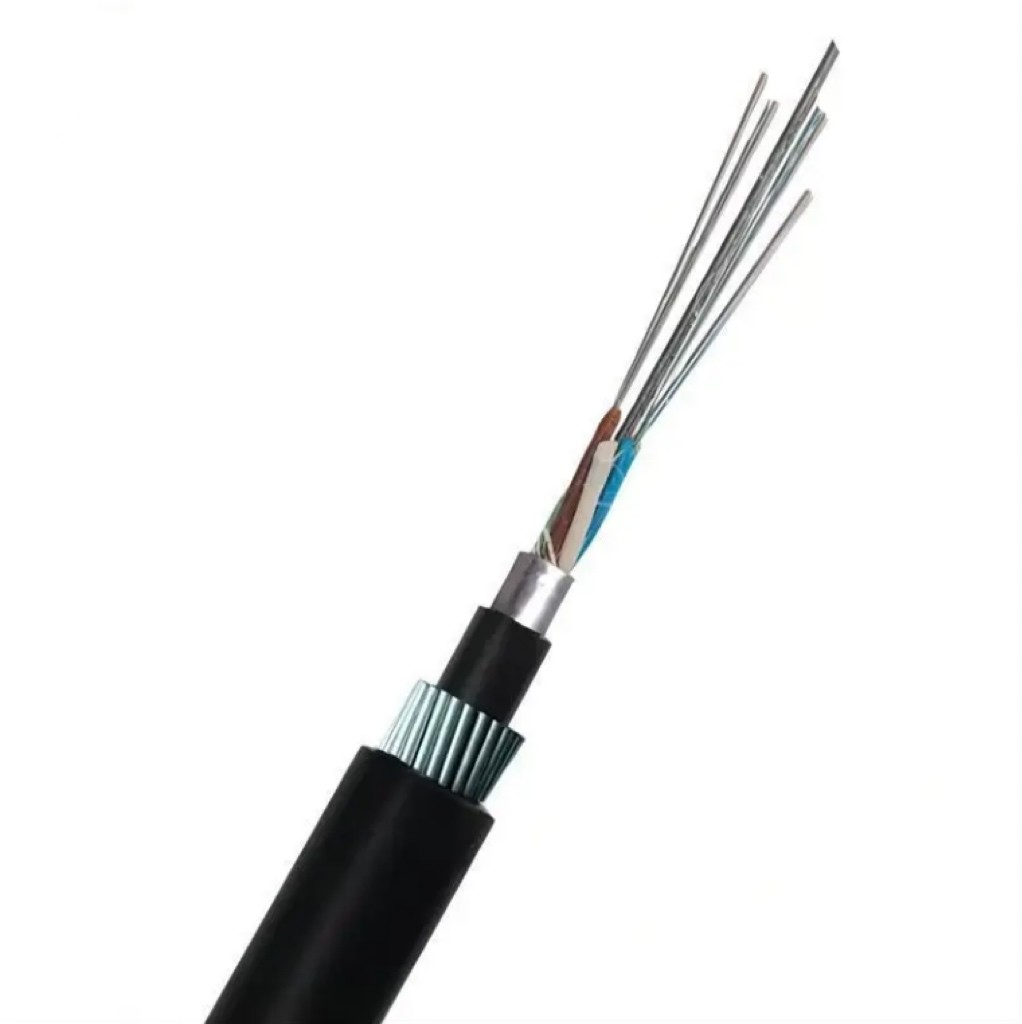

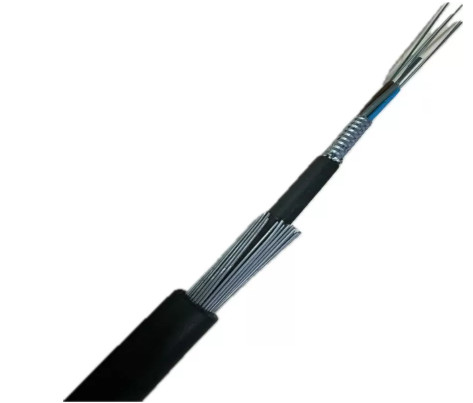

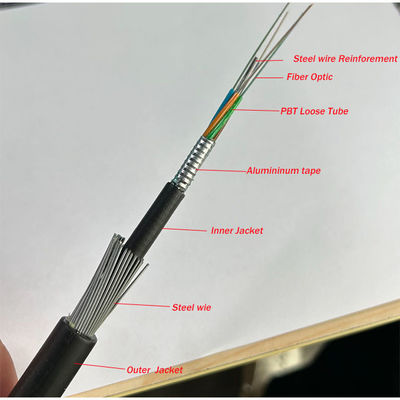

Product show

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 7



Related-products: GYTA53

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 8





Fiber Cable & Fiber Accessories

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 9



Packing

1/2/3/4km or customized length export wooden drum



Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 10

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 11



1. Factory Directly Supply Price.

2. Life Time Warranty:More 25years

3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.

4. 100% test before shipping.

5.OEM/ODM is available.Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying 12

6. Professional manufacturer.





Welcome to visit our factory!
