Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength
Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength
Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength
Contact Now

Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength

Minimum Order Quantity : 1km Packaging Details : 1/2/3/4/5 km in one wooden drum
Delivery Time : 3-5dyas Payment Terms : L/C, T/T, Western Union
Supply Ability : 10000 Per day
Place of Origin: Guangzhou China Brand Name: JQ/OEM
Certification: ISO9001 Model Number: GYXTW

Detail Information
Jacket Material: PE Outer Diameter: 6/7/8/9mm
Steel Wire: 1.0mm Color: Black
Fiber Count: 4/24/36/48 Core Structure: Unit Tube
Strength Member: Two Steel Wire Installation: Aerial &Duct
Product Name: Outdoor Optic Fiber Cable Fiber Type: YOFC Or As Request
Oem: Available
Highlight:

GYXTW Aerial Fiber Optic Cable

,

Single Mode Aerial Fiber Optic Cable

,

8.0mm Aerial Fiber Optic Cable

Product Description

 Central loose tube type optical cable GYXTW





Product description



Single mode G652D  Fiber Optic Cable GYXTW

Fiber Numbers

4-24-36-48 fibers
Metal reinforcing members

Parallel steel wire

Cable OD

8.0mm
Application

Overhead laying

Structural features

Center tube
Unit loose tube cables

Recommended index

 12 cores

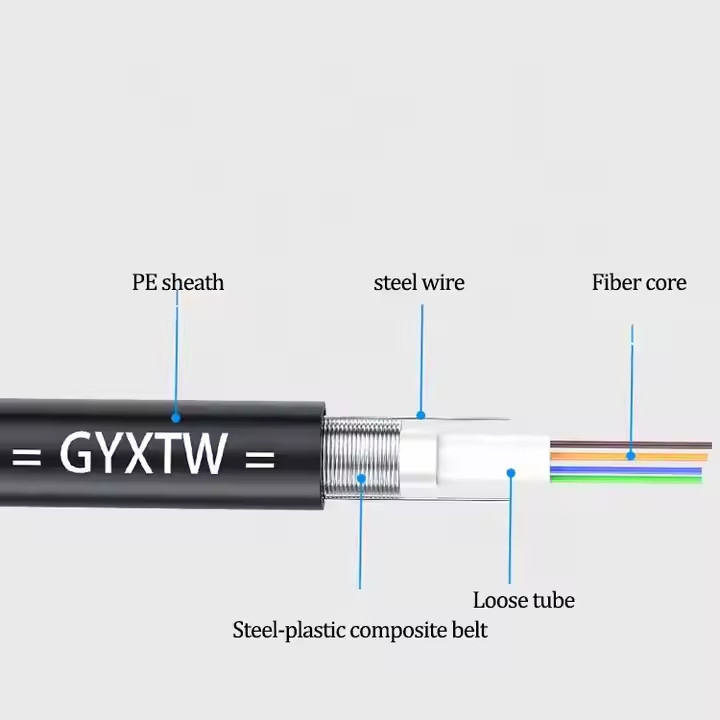

Cable Structure

Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength 0

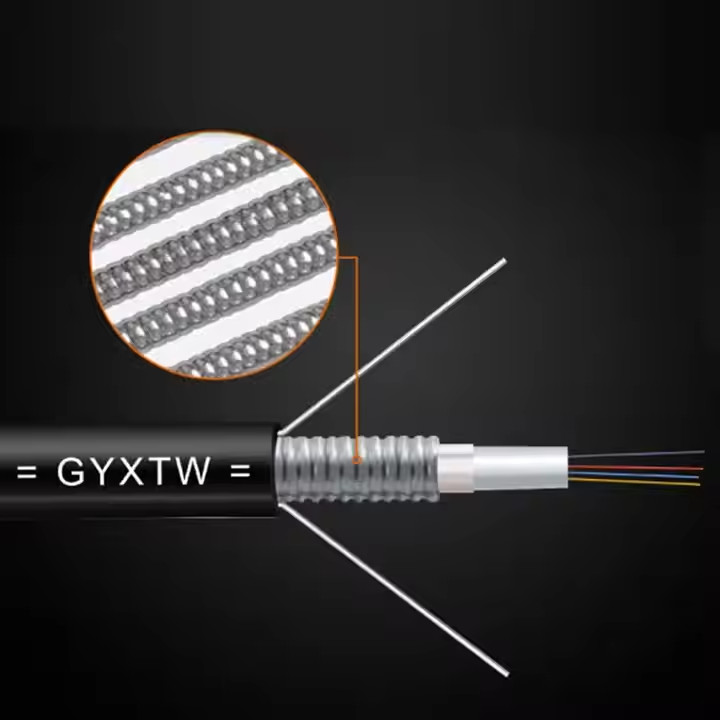

Cable Section

Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength 1

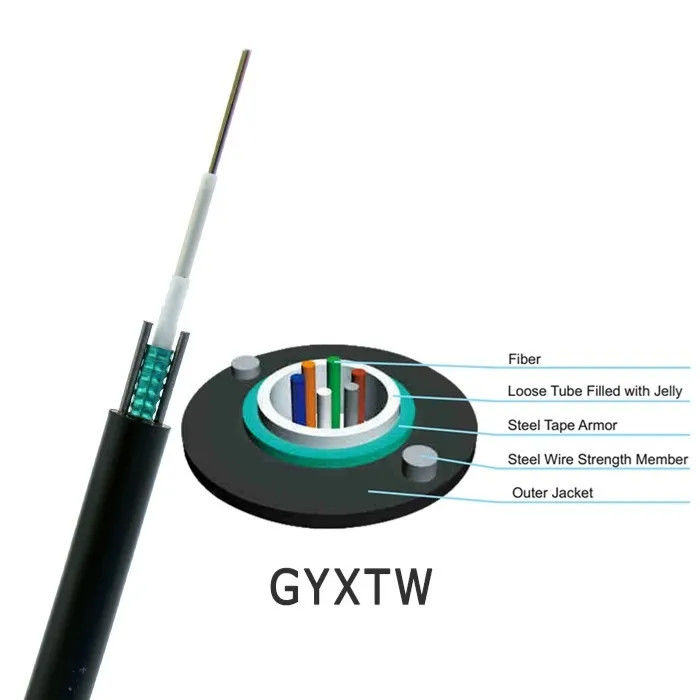

Cable Diameter

 Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength 2



Fiber Parameter

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Cable Performance




Fiber Type
G.652
G.655
50/125um
62.5/125um


Attenuation (+20°C)
850 nm
-
-
≤3.0 dB/km
≤3.3 dB/km
1300nm
-
-
≤1.0 dB/km
≤1.0 dB/km
1310nm
≤0.36 dB/km
≤0.40 dB/km
-
-
1550nm
≤0.22 dB/km
≤0.23 dB/km
-
-
Bandwidth
850nm
-
-
≥500 MHz·km
≥200 MHz·km
850nm
-
-
≥500 MHz·km
≥500 MHz·km
Numerical Aperture
-
-
0.200±0.015 NA
0.275+0.015 NA
Cable Cut-off Wavelength 入cc
≤1260nm
≤1450nm
-
-




Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 8  78 1000/3000 1000/3000 10D/20D
14~24 10  90 1000/3000 1000/3000 10D/20D









Application: Suitable for Duct / Aerial



Storage / Operating Temperature: -40℃~+70℃









Packing detail: 1/2/3/4/5 km in one wooden drum



Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength 3



Company Profile



Guangzhou jiqian fiber optic cable Co.,ltd

Guangzhou Jiqian fiber optic Cable Co., Ltd. is a high-tech company integrating manufacturer and trade. The factory covers an area of 5000 square meters, with more advanced optical fiber cable production equipments and testing equipments. Our company has R&D department, production department, quality inspection department, sales department, after-sales department, and logistics department. Our company passed the ISO 9001:2000 quality system certification in 2010. With a complete quality control system, excellent technical team, advanced equipment and reliable quality, our customers are all over the world. Welcome to inquiry us at anytime!
Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength 4

Contact me at +8619120308386 to get free sample.

Tag:

Unitube 4 core outdoor fiber optic cable

G652D 4 core optical fiber cable

Unitube 4 core optical fiber cable
